Default A Little Help Please

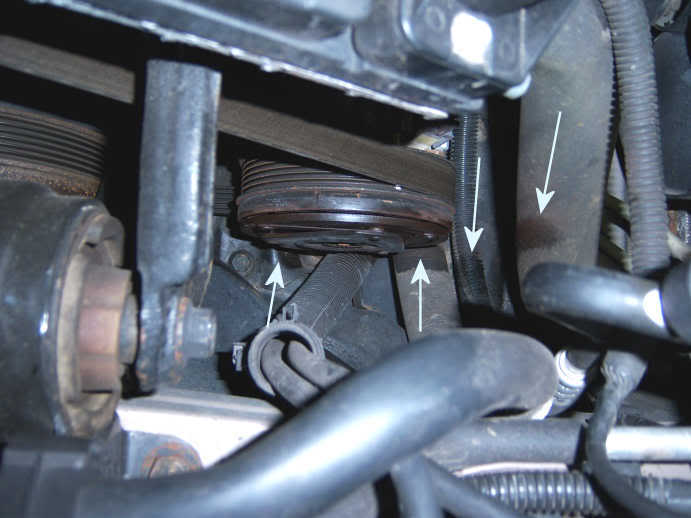

Nosing around under the hood, I noticed these marks that seem to be made from some sort of fluid that must have been thrown from the AC compressor clutch. I have no clue if it is a recent occurance or not. It doesn't appear to be fresh. I didn't think that there was fluid in the AC compressor clutch. If there isn't what might have caused this? Thanks.
Name:  FluidMarks.jpg
Views: 0
Size:  35.3 KB
Barry is offline   Reply With Quote
Old 05-20-2008, 08:27 PM   #2
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

Well, do I get some sort of prize for posting a stumper? I'm thinking the previous owner heard something in the clutch area and sprayed some sort of lube on the clutch.
Barry is offline   Reply With Quote
Old 05-20-2008, 08:31 PM   #3
Senior Member
Posts like a Northstar

Join Date: Jul 2007
Location: Memphis,TN Originally from MA
Posts: 571
Thanks: 0
Thanked 0 Times in 0 Posts
roadtech195 is on a distinguished road
Default

you may be correct about it being spray lube. could be belt dressing too. personally I would clean my engine and look for "new" stains
roadtech195 is offline   Reply With Quote
Old 05-21-2008, 01:38 AM   #4
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

The air conditioning system uses oil to lubricate the compressor. When the front seal on the compressor fails, that lubricating oil comes out and gets thrown by the clutch assembly. Anytime you see oil around an A/C fitting, it is a telltale for a leak. If you still have cold air, you probably won't for much longer.
bill buttermore is offline   Reply With Quote
Old 05-21-2008, 02:00 AM   #5
Senior Member
Posts like a Camaro

Join Date: Aug 2004
Location: Chi-Town
Posts: 1,116
Thanks: 0
Thanked 0 Times in 0 Posts
Boreas is on a distinguished road
Default

Get a UV light and see if it glows, chances are the seal broke.
Boreas is offline   Reply With Quote
Old 06-30-2008, 03:10 PM   #6
Member
Posts like a V-Tak

Join Date: Jun 2008
Location: Iowa
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
NHogan is on a distinguished road
Default

Quote:
Originally Posted by roadtech195 View Post
you may be correct about it being spray lube. could be belt dressing too. personally I would clean my engine and look for "new" stains
Agreed. Clean her up and look for new stains
NHogan is offline   Reply With Quote
Old 07-05-2008, 11:57 AM   #7
Junior Member

Join Date: Oct 2004
Location: High Springs, Florida
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
rcissna is on a distinguished road
Default

A little FYI, UV lights only work when a UV leak detector was put in the system first. When the seal on the compressor leaks it will throw oil from the back side of the pulley instead of the front. This appears to be something from the front of the pully and since the front of the pulley seems to be shinier than everything around it, someone has sprayed something on it and it got overspray on the hoses near it. It was probably lubricant because they thought the clutch was sticking. It seems the car has had a recent AC problem.
rcissna is offline   Reply With Quote
