Default leaking LIM gaskets???

ill let the pics do the talking

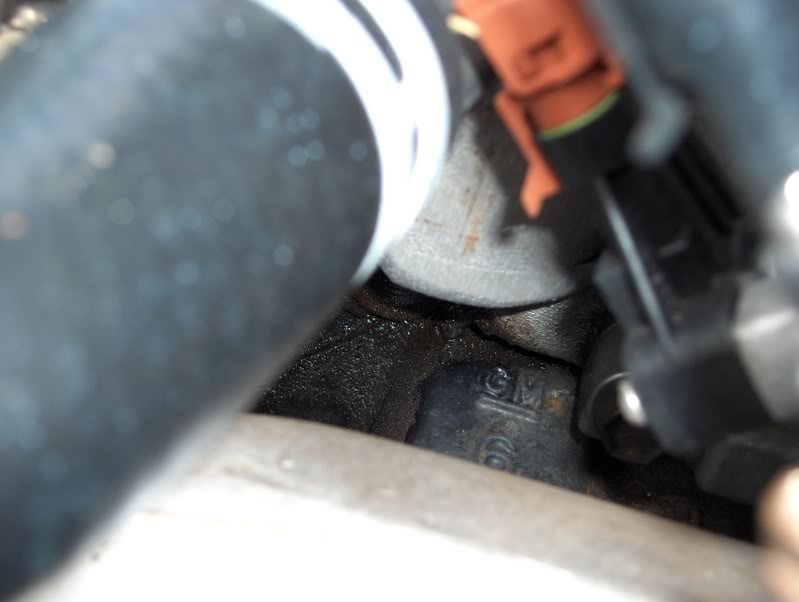

standing on the drivers side of the car.....looking between the Rad hose and the TB
Name:  LeakingLIM001.jpg
Views: 24
Size:  40.9 KB

Drivers side of the car... behind the TB.....you can see the Coolant Temp sensor
Name:  LeakingLIM002.jpg
Views: 110
Size:  63.3 KB

Name:  LeakingLIM006.jpg
Views: 24
Size:  46.0 KB

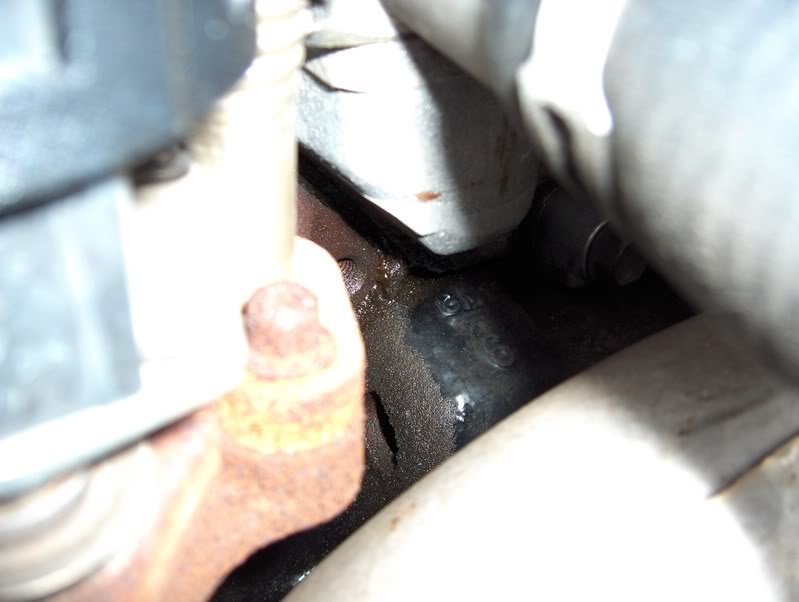

Drivers side of the car....looking between the EGR and the Rad hose
Name:  LeakingLIM003.jpg
Views: 25
Size:  44.1 KB

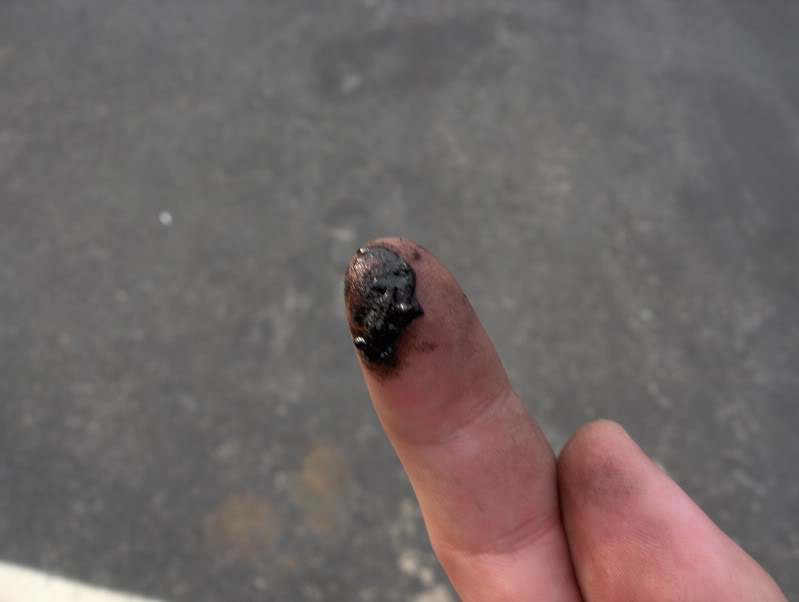

here is the sludge that i wiped off near the Coolant temp sensor where the LIM meets the rear head
Name:  LeakingLIM005.jpg
Views: 25
Size:  26.4 KB
1993 SLE is offline   Reply With Quote
Old 01-19-2007, 04:44 PM   #2
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Hey, thats the same spot mines leaking
bandit is offline   Reply With Quote
Old 01-19-2007, 04:56 PM   #3
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Definitely looks like a leak gasket to me. Is the underside of the TB dry?
vital49 is offline   Reply With Quote
Old 01-19-2007, 05:11 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I agree. Check the throttle body gasket for leaks first - then the LIM gasket.
Archon is offline   Reply With Quote
Old 01-19-2007, 05:27 PM   #5
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

yes TB is Bone Dry....been there done that gasket already
1993 SLE is offline   Reply With Quote
Old 01-19-2007, 05:28 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

We diagnosed this one over the phone.. go get it done. :P
BillBoost37 is offline   Reply With Quote
Old 01-19-2007, 05:29 PM   #7
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
We diagnosed this one over the phone.. go get it done. :P

not untill the plastic thing ontop of the motor dissapears
1993 SLE is offline   Reply With Quote
Old 01-19-2007, 05:45 PM   #8
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

^^^

Haha. Well, I can tell you that mine was leaking at those same points, but it was because both sides of the gasket were missing. Usually when the LIM is replaced, goop is used on those corners where the gasket doesnt quite fill in. I am suspecting that this is the case with yours and once you pull the lower, you will see what im talking about if you dont already know.

In this pic, the orange silicone shows the corners im talking about.


BLACK94SSEi is offline   Reply With Quote
Old 01-19-2007, 06:22 PM   #9
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

First time I did it I put gobs on top and bottom of the corners like shown below, but it still leaked, so when I redid it I put gasket maker along the entire surface of the seals.
J Wikoff is offline   Reply With Quote
