Default Leaking at the elbow

Well I just got it all back together and now it is leaking at the new elbow? Any ideas what to do?
99SilverSE is offline   Reply With Quote
Old 10-14-2007, 10:24 PM   #2
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

You probably just nicked the O-ring on the elbow, don't get frustrated, a lot of people do it.

The sucky part is you will have to take it all apart again to replace the elbow O-rings
PRD2BDF is offline   Reply With Quote
Old 10-14-2007, 10:49 PM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: May 2007
Location: Belmont, Wv
Posts: 128
Thanks: 0
Thanked 0 Times in 0 Posts
99SilverSE is on a distinguished road
Default

Would it just be easier to remove the water pump and do it that way ? Instead of tearing it all apart again?
99SilverSE is offline   Reply With Quote
Old 10-14-2007, 11:44 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

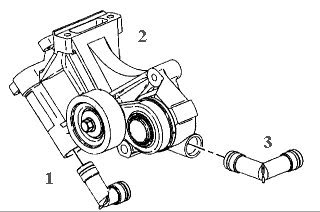

Just remove the tensioner assembly. The coolant elbow goes into that. While you have that out, you may as well replace the lower elbow also. This will give you an idea of how it will look when you remove it.
Name:  tensioner.jpg
Views: 4
Size:  14.5 KB
Be certain that you clean out all the crud where the elbows insert into each piece. You may want to put a little coolant or dielectric grease on the O rings to make it easier to install and not damage the O rings.
Archon is offline   Reply With Quote
Old 10-14-2007, 11:47 PM   #5
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: May 2007
Location: Belmont, Wv
Posts: 128
Thanks: 0
Thanked 0 Times in 0 Posts
99SilverSE is on a distinguished road
Default

Thank you very very much! You are saving me a ton of time and having to search for a torque wrench again. Any other tips you can give me would be great. Thank you again!
99SilverSE is offline   Reply With Quote
Old 10-14-2007, 11:56 PM   #6
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Making sure that the area is clean can not be over-emphasized. Scrub it up well with a toothbrush, or wire brush. Then wipe clean. If the area is badly pittied, you could put some gasket sealer around the O rings, but do that only as a last resort. You shouldn't run into any problems taking that off.
Archon is offline   Reply With Quote
Old 10-15-2007, 08:26 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Pull it all back apart Cody? There are easier ways bud.

The tensioner is a much easier way, make sure you have both coolant elbows. That if your year has the lower elbow built into the tension (metal) you will have the o ring. (I dunno why I didn't think of that earlier Badnit)

I suggest using a little grease or vasoline on the o rings before you install them to help them slide in. A few here have had issues with nicking and it would see the best method is to prelube or add a little RTV when they are going together.
BillBoost37 is offline   Reply With Quote
Old 10-15-2007, 03:27 PM   #8
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: May 2007
Location: Belmont, Wv
Posts: 128
Thanks: 0
Thanked 0 Times in 0 Posts
99SilverSE is on a distinguished road
Default

Well got the tensioner off with little problem and fixed and oiled the o-ring on the LIM side. Replaced the back elbow and cleaned up and oiled the heatercore O-rings too.

Got it all back together and filled it up. WOOOHOOOO NO LEAK!!!!

Thank God cause if I spend anymore time on this project I think my wife will kill me.
99SilverSE is offline   Reply With Quote
Old 10-15-2007, 03:28 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Heater core o rings?

Oh..the outlet jobs...gotcha.
