Finally got fed up with that old power steering pump. What a whiner!!! Picked up a new (remanufactured) pump at Auto Zone for $60.00 and went to work. If you want to tackle a pump replacement you will need a 13 mm socket and a short extension to remove the 2 mounting bolts and a 16 mm flare nut wrench to remove the steel pressure line fitting from the pump. There is also a rubber low pressure return hose that can be removed with pliers.

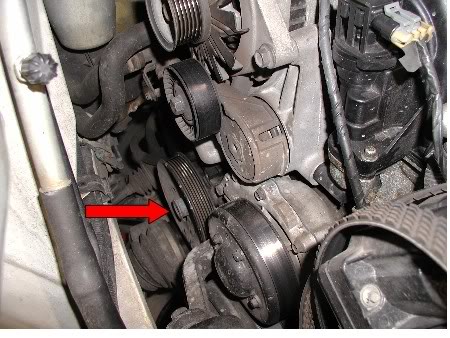

Remove the serpentine belt from the power steering pump pulley. The first picture is a top view of the pump pulley with the belt removed.

Name:  P1010059.jpg
Views: 234
Size:  51.8 KB

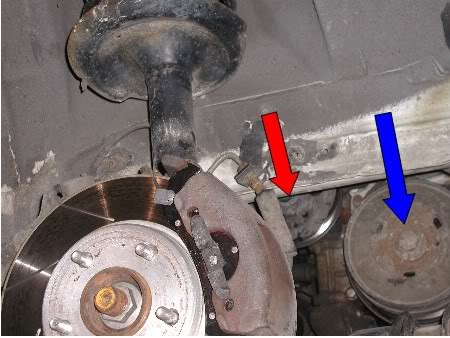

Lift the car, support with jack stands and remove the front right tire. Remove the plastic fender liner to gain access to the pump from under the fender well. Next picture is a view above the brake rotor looking through the fender. Red arrow shows the power steering pump. Blue arrow shows crank shaft pulley.

Name:  P1010063.jpg
Views: 52
Size:  39.9 KB

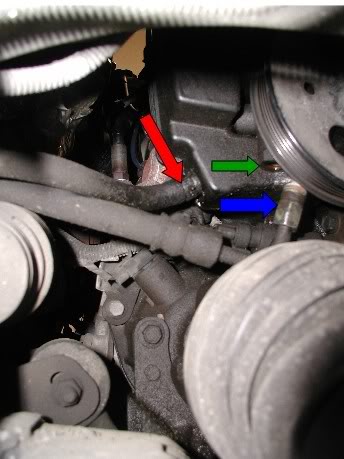

Using a 16 mm flare nut wrench or open end wrench remove steel flared line. (Blue arrow) Green arrow shows open hole in pump housing where line was removed. At red arrow, squeeze hose clamp with pliers and remove hose from barb. Better have a catch pan handy when you remove the lines.

Name:  P1010067-1.jpg
Views: 52
Size:  30.4 KB

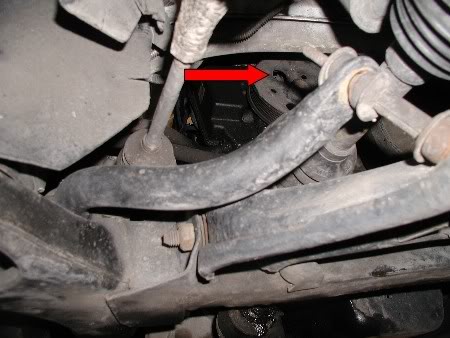

Rotate pump pulley to gain access to 13 mm mounting bolt heads through larger holes in pulley face. I had pretty good luck removing the upper bolt working from the top of the engine and then removed the lower bolt working through the fender well.

Name:  P1010066.jpg
Views: 51
Size:  34.0 KB

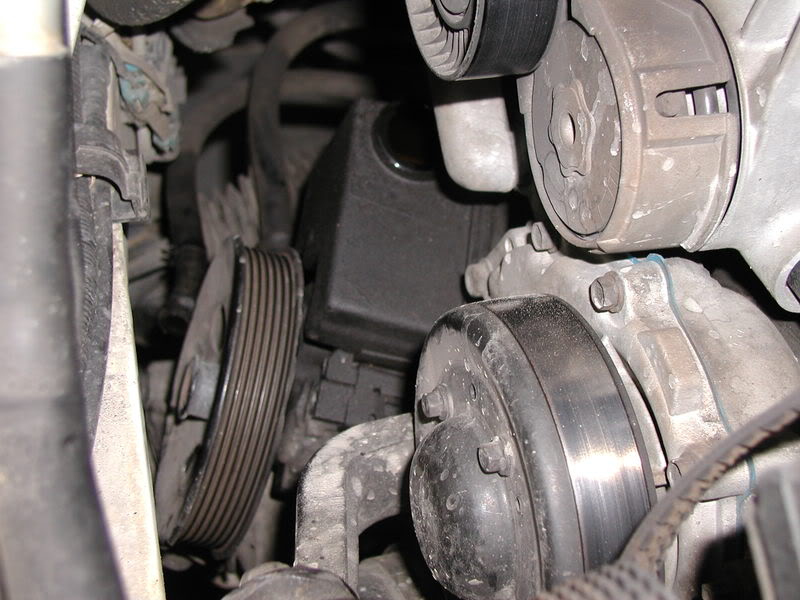

Next picture shows the pump with all bolts and lines removed and ready to be lifted out from the top.

Name:  P1010070-1.jpg
Views: 52
Size:  79.9 KB

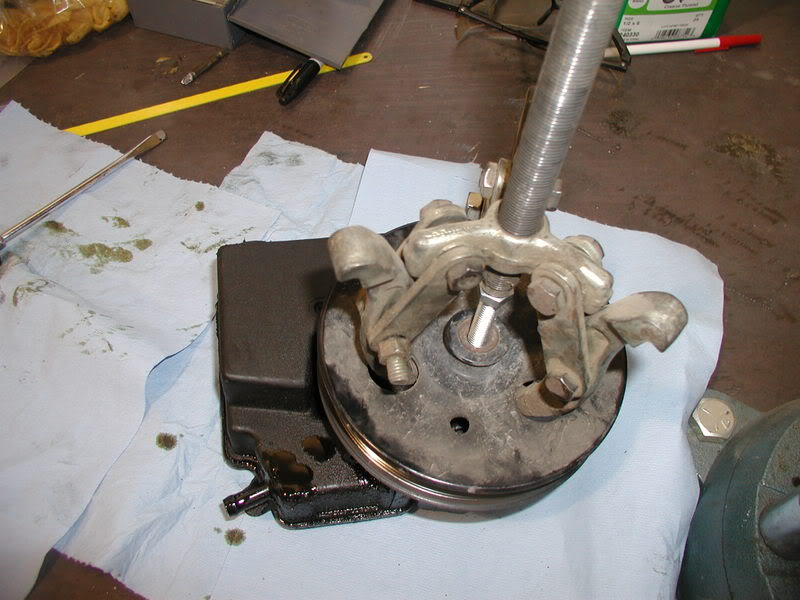

I used a 3 legged puller to remove the pulley from the old pump. Not sure if this is the official tool for the job but hey, I'm not Mr. Goodwrench.

Name:  P1010071.jpg
Views: 50
Size:  72.7 KB

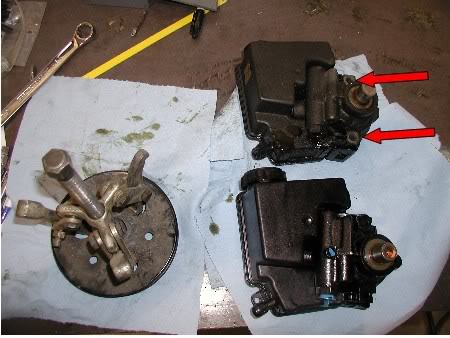

Now we have the pulley removed. The red arrows show the mounting holes in the pump body where the 13 mm bolts pass through to the tapped holes in the block.

Name:  P1010072.jpg
Views: 54
Size:  40.1 KB

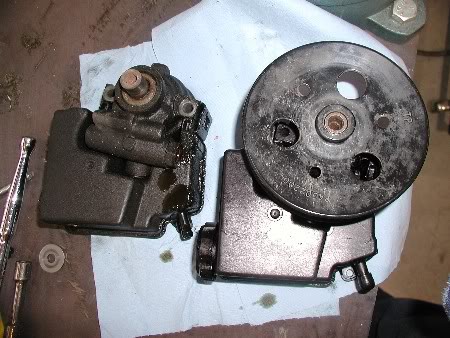

Now the pulley is installed on the new pump and it'* ready to find a new home on my Bonnie.

Name:  P1010073-1.jpg
Views: 54
Size:  46.1 KB

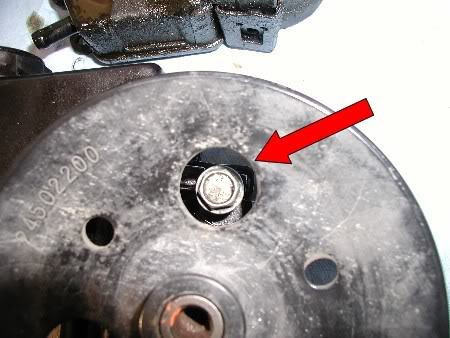

This shows the 13 mm bolt head lined up with the hole in the pulley face. This shows a little better view of the mounting bolts that were removed earlier.

Name:  P1010074.jpg
Views: 48
Size:  37.1 KB

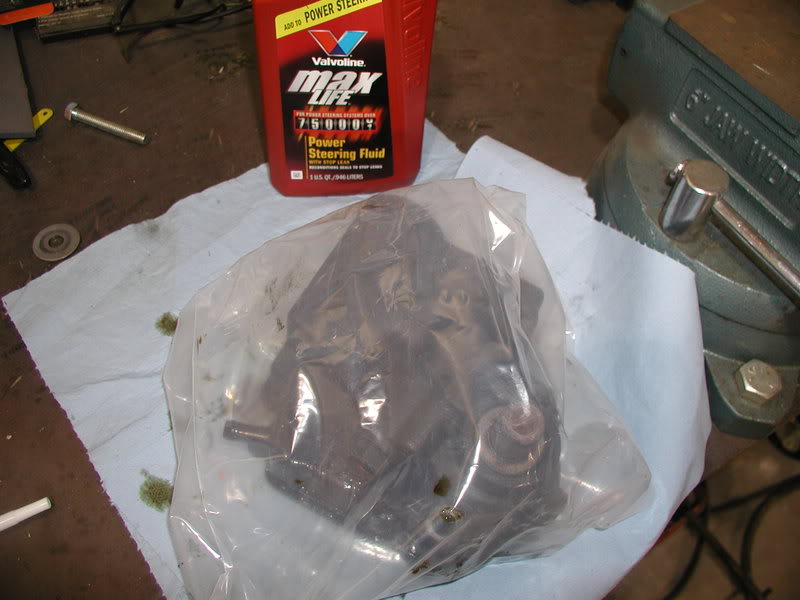

Old pump is back in the plastic bag and ready for a ride to town so I can get my $22.00 core charge back.

THE END!

Name:  P1010075-1.jpg
Views: 49
Size:  58.8 KB
tumbleweed is offline   Reply With Quote
Old 01-05-2008, 10:26 PM   #2
Senior Member
Posts like a Camaro

Join Date: Jul 2004
Location: Canada, Ontario
Posts: 1,090
Thanks: 0
Thanked 0 Times in 0 Posts
tripscarcare95 is on a distinguished road
Default

Thanks for the great write up, I was just about to replace my power steering pump, this helps alot, How long did it take? Did you have to bleed out the system or anything?

Cheers
tripscarcare95 is offline   Reply With Quote
Old 01-05-2008, 10:44 PM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Oct 2003
Location: SW Indiana
Posts: 133
Thanks: 0
Thanked 0 Times in 0 Posts
tumbleweed is on a distinguished road
Default

It took about 3 hours and that included a little extra time messing around with the pictures.

I just hooked up the lines to the new pump, filled the reservoir to the full mark and started the engine keeping it at the lowest idle speed for a couple minutes to let the pump build pressure and then I shut the engine off and let some air bubbles settle out of the fluid. Next I rechecked fluid level and started engine again. This time I worked the steering wheel back and forth lock to lock 15-20 times and then rechecked level.

After agitating the fluid a while, I used a suction device to empty the reservoir and refilled with fresh fluid. I think I will empty and refill a couple more times after I drive it a while.

Not sure if this is the official way to do it but it seem to work ok for me. It drives good with no whining or strange noises. Probably be a good idea to watch the fluid level pretty close for a few days and see if any more air works its way out of the system.

Please use at your own risk. Your mileage may vary..........
tumbleweed is offline   Reply With Quote
Old 01-06-2008, 10:03 AM   #4
Senior Member
Posts like a Northstar

Join Date: Sep 2006
Location: Dumfries, Virginia Member: #6887
Posts: 577
Thanks: 0
Thanked 0 Times in 0 Posts
whitecrystal1 is on a distinguished road
Default

Great post! I will be doing mine sometime soon
whitecrystal1 is offline   Reply With Quote
Old 01-06-2008, 11:46 AM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Those of you with RPO code T2V will have a very difficult time finding the proper pump, and may have to ditch that option to the curb.
willwren is offline   Reply With Quote
Old 01-07-2008, 02:03 AM   #6
Member
Posts like a V-Tak

Join Date: May 2003
Location: Ontario Canada
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
toolmaker is on a distinguished road
Default

I'm going to change mine tomorrow, will the pump come out through the top the same on the supercharged engines ?
toolmaker is offline   Reply With Quote
Old 01-07-2008, 09:10 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'll answer that in your other topic.
willwren is offline   Reply With Quote
Old 01-07-2008, 01:06 PM   #8
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

Quote:
Originally Posted by toolmaker
I'm going to change mine tomorrow, will the pump come out through the top the same on the supercharged engines ?
I believe the car in this post has a supercharger - the N/A engines have the power steering pump on top of the engine and is MUCH easier to access. My '93 was this way, anyhow, not certain about the newer N/A cars...
SSE Motorhead is offline   Reply With Quote
Old 01-07-2008, 01:27 PM   #9
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Series II NA'a have the pump in the same location as Series I SC'*.
J Wikoff is offline   Reply With Quote
Old 01-07-2008, 01:37 PM   #10
Senior Member
Posts like a Northstar

Join Date: Jan 2002
Location: southern California
Posts: 538
Thanks: 0
Thanked 0 Times in 0 Posts
billha is on a distinguished road
Default

I'm glad to hear that your replacement went smoothly.

I'm wondering how you were able to remove the pump up through the engine compartment. When I replaced the pump on my '92 SSE */c, it was extremely difficult to manouver the pump to get it out of the engine compartment. There didn't appear to be any way to remove it from above. I removed it from below, and I had to rotate and manouver it for quite a while before I was able to finally get it out.
And getting the right version of the pump for my '92 was also very difficult. I ordered and returned a few wrong versions before I found the right one.
billha is offline   Reply With Quote
