Default Injector tip

HI everyone! Im new here and an hoping for to get some answers!. I recently did the green coupler install on my 95 Buick riveria sc series 1. Problem is when I changed my orings on the injector the plastic tip that holds the oring on broke. Im assuming there are all going to break when I remove them. I cant seem to find the tips anywhere(autozone, oreillys etc) I will be calling GM tomorrow though. Anyone have the part numbers for the tips or any info on them would be great thanks!
raiden is offline   Reply With Quote
Old 05-15-2008, 10:16 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

They don't hold the o-ring. The metal lip they attach to does. The o-ring will be fine without the tip protector, and the tip serves no real purpose. The injector will spray fine, and the fuel spray pattern will keep it clean.

Ignore them. (they're actually called pintle caps, and are very universal for most bosch fuel injectors of this series).
willwren is offline   Reply With Quote
Old 05-15-2008, 10:19 PM   #3
Junior Member
Thread Starter

Join Date: May 2008
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
raiden is on a distinguished road
Default

it seems if i ever take the injectors out again the oring may get stuck in the injector hole or fall in on the pistons. So youre saying this wont happen?
raiden is offline   Reply With Quote
Old 05-15-2008, 10:28 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Lube the o-rings first (before insertion) with some light oil or silicon grease.

If you're determined to get the caps, go to www.fuelinjectionenterprises.com
Left menu bar "contact us" and tell him where you came from.

Your choice. My 'upsized' 32lb injectors on the Zilla have no caps, never did, and I've never lost an o-ring.
willwren is offline   Reply With Quote
Old 05-16-2008, 12:51 AM   #5
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

Individual pintle caps:
http://cgi.ebay.com/ebaymotors/Bosch...1998QQtcZphoto

Full v6 injector service kit:
http://cgi.ebay.com/ebaymotors/Bosch...8631QQtcZphoto

I bought the kit to recondition some L67 injectors. It was very nice.

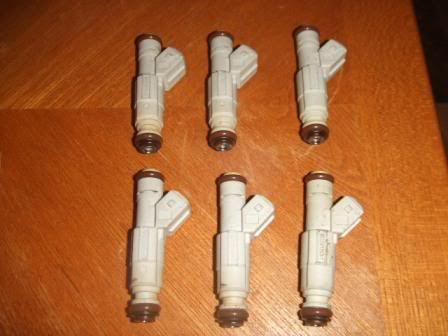

Name:  FIInj1.jpg
Views: 3
Size:  21.8 KB

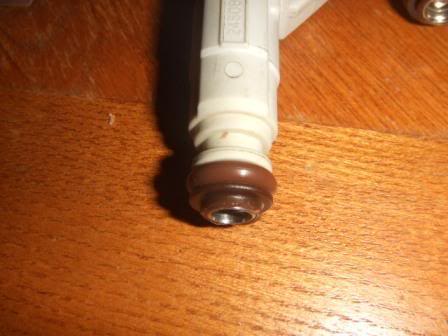

Name:  FIInj2.jpg
Views: 1
Size:  22.3 KB
agrazela is offline   Reply With Quote
Old 05-16-2008, 09:12 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Wrong caps, and wrong injector type.

The Series 1 is quite different.
willwren is offline   Reply With Quote
Old 05-16-2008, 09:48 AM   #7
Junior Member
Thread Starter

Join Date: May 2008
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
raiden is on a distinguished road
Default

willwren: I am going to hunt for the caps this morning at some local dealers. If I cant find them then they are going in without them! Ill let you know how it gos.
raiden is offline   Reply With Quote
Old 05-16-2008, 12:35 PM   #8
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

Quote:
Originally Posted by willwren
Wrong caps, and wrong injector type.

The Series 1 is quite different.
My bad...didn't realize 95 Riv was Series 1 (although re-reading original post, that is mentioned )

I do believe that same guy sells pintles and kits for the earlier injectors, too.
agrazela is offline   Reply With Quote
Old 05-16-2008, 04:50 PM   #9
Junior Member
Thread Starter

Join Date: May 2008
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
raiden is on a distinguished road
Default

Thanks Willwren! Spud helped me out and has the right caps shipping. Im still confused a little. GM had some big blue orings that didnt fit the injector right, the seal kit also came with some kind of funky plastic ring. It didnt look like it fit the injector at all. Are those blue ac delco orings for the series 1?? Also i tried using the felpro orings with no caps and they wanted to slide off so i wont be using the injectors without the caps =(
raiden is offline   Reply With Quote
Old 08-06-2008, 07:33 AM   #10
Junior Member

Join Date: Aug 2008
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Keith-IR is on a distinguished road
Default

I know this thread is old, but here you go: http://injector-rehab.com/outpatient/injectorparts.htm
Keith-IR is offline   Reply With Quote
