ok i have a 96 bonne and my heater isnt blowing out the main vent well i found out why, underneath my dash by my feet there is a arm type deal that comes off where heat blows on your feet. now that arm is connected to this like vent type thing that when it opens heat comes in well that arm isnt moving and i can do it manualy but i just want to know what that part is so i can get a new one that works. Anyone know the name of that part?
kugstrand18 is offline   Reply With Quote
Old 01-19-2009, 08:19 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

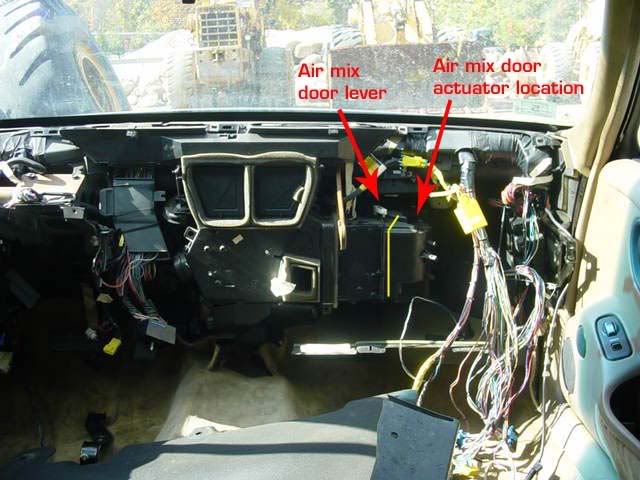

That'* the air mix actuator.

Hope these help.

Name:  airmixactuator.jpg
Views: 6
Size:  61.1 KB

Name:  actuator.gif
Views: 6
Size:  89.4 KB
Danthurs is offline   Reply With Quote
Old 01-19-2009, 08:28 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2008
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
kugstrand18 is on a distinguished road
Default

is there an air mix actuator on the driver side and the passenger side?
kugstrand18 is offline   Reply With Quote
Old 01-19-2009, 08:34 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It looks like there is also 1 for the floor vents and another for the panel and windshield. I'll try to get a image.
Danthurs is offline   Reply With Quote
Old 01-19-2009, 08:37 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2008
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
kugstrand18 is on a distinguished road
Default

and where can i buy these parts
kugstrand18 is offline   Reply With Quote
Old 01-19-2009, 08:39 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

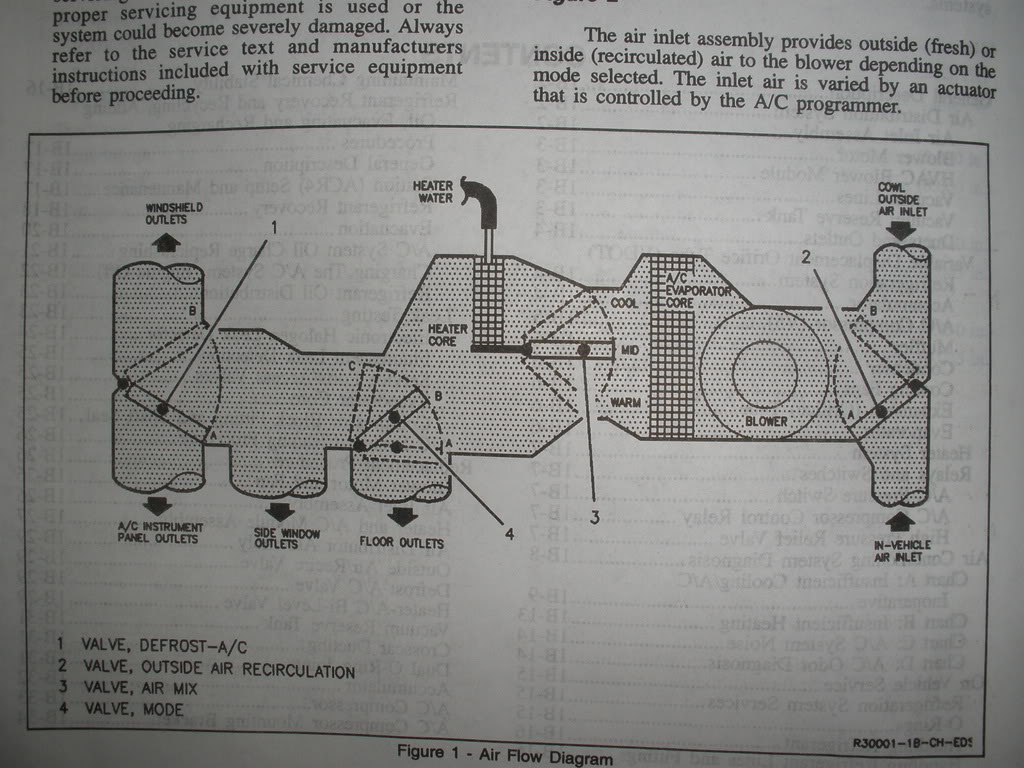

Here'* the image.

Name:  P1190001.jpg
Views: 2
Size:  151.5 KB

Try Auto Parts Fast at RockAuto

They have some of the best prices around. I've bought from them several times, they ship fast.
Danthurs is offline   Reply With Quote
Old 01-19-2009, 08:44 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2008
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
kugstrand18 is on a distinguished road
Default

that sucks i cant find the part on that website well i will just keep searching thank you
kugstrand18 is offline   Reply With Quote
Old 01-19-2009, 08:48 PM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

This place has the parts that are a bit harder to find. But can cost a bit more.

GM Parts - GM Auto Parts - GM Parts House USA
Danthurs is offline   Reply With Quote
Old 01-19-2009, 08:53 PM   #9
Senior Member
Posts like a Supercharger

Join Date: Sep 2005
Posts: 195
Thanks: 0
Thanked 6 Times in 5 Posts
imidazol97 is on a distinguished road
Default

On the driver'* side are vacuum actuators. They are connected by 1/8 inch plastic vacuum hoses to the programmer on the right side shown as #6 in the diagram above.

One vacuum actuator is position to rotate a horizontal axis vane that closes off the air flow above the dash vents which makes the air come out the dash vents.
One closes off the air intake and I believe has a vertial axis. It'* a restrictor in the line to slow the movement of the recirculate vacuum motor.
One closes off the heat on the floor using one hose to it and has a second hose which balances it at midmovement to give bilevel heat by partly closing off the floor vent.

If you're having trouble with vacuum getting to one of those you can replace the connector at the programmer if it'* sucking closes. You can connect the two tubes together with a small piece of aquarium hose or rubber 1/8 inch internal gas line.

The vacuum motors are open on the back so you can stick your finger in and move them the way they'd move with vacuum applied.

You should be able to have the motor running for vacuum and switch between all the settings and feel each of the actuators when they are applied. If one doesn't move it may have a torn diaphragm. You can check by connecting another vacuum line from one of the others and see if it works or connect a long vacuum line from the motor to check.
imidazol97 is offline   Reply With Quote
