Default HELP CODE p1676

Have a code p1676 on my 98 SE. It comes on for a few days and goes off for a few days. I cannot find very much information on this specific code. What I have found is it indicates driver 4, line 6...whatever that suppose to mean. Also something to do with the fuel system. I really want to turn this SES light off.
CLEAR is offline   Reply With Quote
Old 01-10-2010, 11:29 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Danthurs is offline   Reply With Quote
Old 01-10-2010, 11:31 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
CLEAR is on a distinguished road
Default

Where is the evap purge valve? Is that the likely problem? Is there a certain wire coming out of the computer I could clip to turn off the ses light rather than take the dash apart?
CLEAR is offline   Reply With Quote
Old 01-10-2010, 11:36 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Should be on the front side of the engine, right near the coils.
Danthurs is offline   Reply With Quote
Old 01-11-2010, 12:36 AM   #5
Junior Member
Thread Starter

Join Date: Dec 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
CLEAR is on a distinguished road
Default

is there a way to test it?
CLEAR is offline   Reply With Quote
Old 01-17-2010, 11:23 PM   #6
Junior Member
Thread Starter

Join Date: Dec 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
CLEAR is on a distinguished road
Default

to the top
CLEAR is offline   Reply With Quote
Old 01-17-2010, 11:39 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Other then unplugging it and inspecting the plug, not that I know of. I checked and autozone sells them for about $24. Worth picking one up and trying it. If no change, return it.
Danthurs is offline   Reply With Quote
Old 01-18-2010, 12:22 AM   #8
Junior Member
Thread Starter

Join Date: Dec 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
CLEAR is on a distinguished road
Default

I checked it out and the plug was nice and clean. The vacuum lines looked good. Is this valve most likely the problem? I hate throwing parts at a car, plus autozone doesnt like to return electrical parts. Is there anyway to test this? How come the light will stay on for a few days and then go off for a few days?
CLEAR is offline   Reply With Quote
Old 01-18-2010, 08:04 AM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I've not had a chance to look in to testing that part, sorry. The SES lights come on when there are a set number of starts or problems. And can go off again after a few starts with no problems.
Danthurs is offline   Reply With Quote
Old 01-18-2010, 01:14 PM   #10
Senior Member
Posts like a Turbo

Join Date: May 2003
Location: B'ham.AL
Posts: 435
Thanks: 0
Thanked 0 Times in 0 Posts
ron350 is on a distinguished road
Default

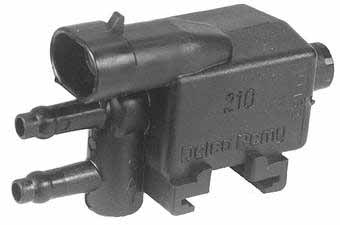

Does your purge valve solenoid look like this?

First thing to try is pull the purge valve solenoid off and make sure the coil is not shorted. Should read something around 28 ohms across the two pins in solenoid.
Then put a piece of vacuum hose on one of the vacuum fittings and see if you can blow air through it.

With 12 volts applied to the solenoid the valve will open and you will be able to blow air through the vacuum fittings. Remove 12 volts and the valve should close and be airtight.

When the vacuum lines in the purge system get rotten small particles of dirt and rubber are being sucked into the purge valve solenoid blocking it open or clogging it. Sometimes a charcoaled canister can go bad and leak charcoal into the system.
Apply 12 volts to the solenoid and blow air through the vacuum fittings blowing out any dirt and rubber dust.
Attached Thumbnails
HELP CODE p1676-214-567.jpg

Last edited by ron350; 01-18-2010 at 04:04 PM.
ron350 is offline   Reply With Quote
