Hello to everyone...I was hoping to get a little mechanical help... - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 02-17-2009, 12:50 AM   #11
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2009
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Greenmotorz is on a distinguished road
Default Ok, Round 2 with my charging system problems...

Update, I'm still having problems with my Alternator charging up my battery....

I cleaned the battery leads and brushed the ground to the block. I also returned my alternator (after being told these refurbished ones do not always work) and put in a new one...

So I take back the Alternator for return...The parts store said they will do a load test and other test to see what my system is doing or not doing...Right before I get there the charging system starts working for the first time...I noticed the battery gauge in the car jumped from being in the red to 14 and the check gauges light and ring turned off...

Uhhhh! The first time the SOB works is when I'm returning a part...So I left the store but they were nice enough to give me another Alternator...Right before I get home, the "check gauge" light turns on and the tone alerts me...I look and my battery gauge is not back in the red and low on power....

I put in the new Alternator and now it seems to be working off and on..When my battery is charging and everything is working fine, I hear a high pitch hum from the alternator....

The only thing I have not changed is the wire going from the alternator to my red lead on the battery..Also the wire and clip that goes into the alternator is stock...Keep in mind that this car has never been played with...Not even the radio has been changed..Same owner all of it'* life...

Any help would be appreciated...
Greenmotorz is offline   Reply With Quote
Old 02-17-2009, 08:12 AM   #12
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

Do you have a digital camera to take a photo to share with us of the stuck wire and clip going into the alternator?

Is it possible that the plug was put back in backwards...... weirder things have happened before.

Quote:
When my battery is charging and everything is working fine, I hear a high pitch hum from the alternator....
Thats normal... the alt is just charing your battery

Last edited by Toddster; 02-17-2009 at 08:13 AM.
Toddster is offline   Reply With Quote
Old 02-17-2009, 08:30 AM   #13
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Sounds like a bad connection in the wire between the alt and the battery. Change it out and it should fix the problem.
Danthurs is offline   Reply With Quote
Old 02-17-2009, 11:46 AM   #14
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2009
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Greenmotorz is on a distinguished road
Default

Thanks Dan, you are clutch on this board..

I will change the wire out and eliminate that as a problem. But let'* hope it fixes it...

If that does not work I will post a picture of the connections on the Alt...

Thanks again!
Greenmotorz is offline   Reply With Quote
Old 02-17-2009, 12:05 PM   #15
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Ok.. I know we are talking about a bonneville, but what year?

I would suggest looking at the connector to the alternator. In that connector is a wire that turns on the field to generate power. Ensure the contact is in the connector and can make connection with the pin on the alternator.

I'd check the wire between the batter and alt. Being that it'* a part of one cable the other piece of it will got to the starter if I recall properly. Look allt he stuff Dan mentioned..... loose battery cables, corrosion, or a broken cable.
BillBoost37 is offline   Reply With Quote
Old 02-17-2009, 12:58 PM   #16
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

This here is the plug Bill is talking about. This is unplugged. It'* on the back side of the alt.

Name:  PB120004.jpg
Views: 0
Size:  63.4 KB

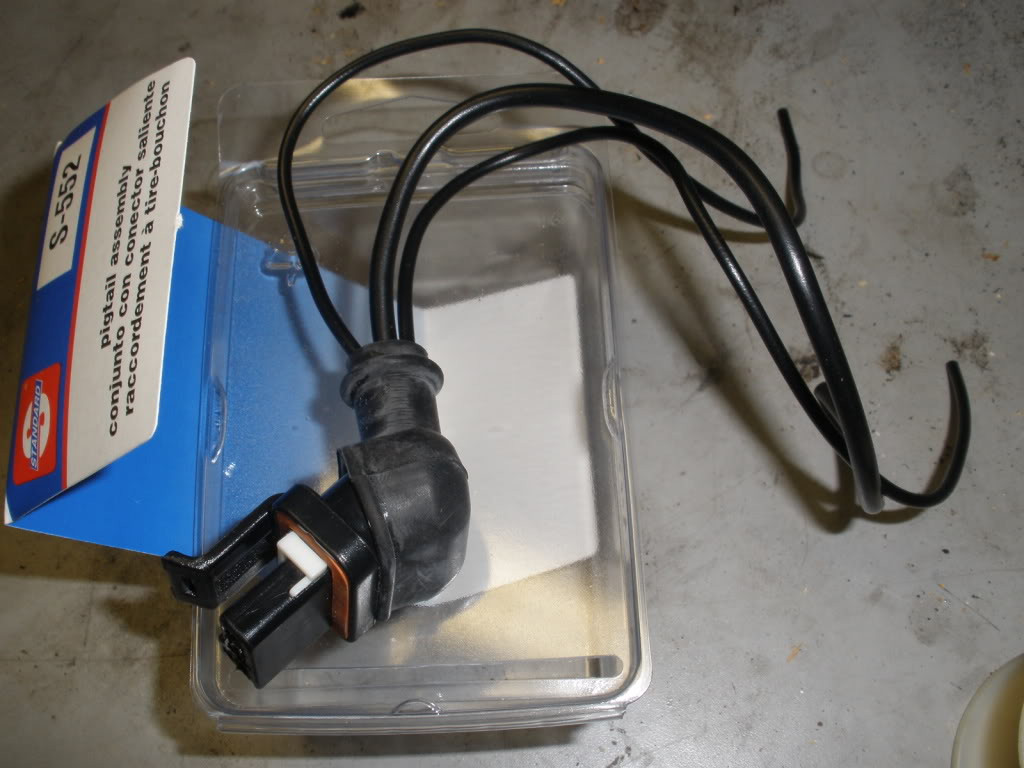

Here'* another picture showing it out of the car.
Name:  PB120003.jpg
Views: 0
Size:  92.7 KB
Danthurs is offline   Reply With Quote
Old 02-17-2009, 01:40 PM   #17
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2009
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Greenmotorz is on a distinguished road
Default

<IMG SRC="<a href="http://s287.photobucket.com/albums/ll126/GreenMotorz/?action=view&current=alternator003.jpg" target="_blank"><img src="http://i287.photobucket.com/albums/ll126/GreenMotorz/alternator003.jpg" border="0" alt="Photobucket"></a>">
Greenmotorz is offline   Reply With Quote
Old 02-17-2009, 01:42 PM   #18
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2009
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Greenmotorz is on a distinguished road
Default

Well that didn't work...Let me try it this way...

<IMG SRC="">
Greenmotorz is offline   Reply With Quote
Old 02-17-2009, 01:43 PM   #19
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That didn't work. Click on the bottom code. the one that says IMG code and then paste that line here.
Danthurs is offline   Reply With Quote
Old 02-17-2009, 06:21 PM   #20
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

so you said that plug is stuck...than I would say it'* probably corroded inside.
pop it off by any means.... look inside the plug first for corrosion.
Toddster is offline   Reply With Quote
