Default Heater not working

That'* right, I'm stumped, sort of. I'm sure I'll figure it out, but I want to push the gray mater here a bit. Just think, if you figure it out before me, you get bragging rights.

My blower fan is not running. The other day I noticed it was off, then it came on and ran fine. Today it'* off again. Here'* what I have done so far.

Checked the fuse, tested with a DVOM and it'* fine.
Checked for voltage at the fuse, yes
Checked the relays, switched with a different set, no change.
Check the temp probe in the dash and cleaned it.
Pulled the motor out of the car and tested it on the bench, spins fine when 12v is provided.
Auto/manual, no difference.

Running out of options here, what else can I check.
Danthurs is offline   Reply With Quote
Old 11-02-2009, 03:50 PM   #2
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Nothing annoys me more then fixing the problem and not knowing what I did. I decided to hook up my DVOM right to the blower plug and check voltage. I was getting about 1.2v with the fan on manual high. I then turned it down to min setting and I got -4v. I then turned off the HVAC and then turned it back on. I was then getting about -14v. I think I had my probes backwards. I then plugged it back in and it'* working. No idea what I did. I turned it on and off several times before this. Hope it stays working.
Danthurs is offline   Reply With Quote
Old 11-02-2009, 08:59 PM   #3
Senior Member
Posts like a Supercharger

Join Date: Sep 2005
Posts: 195
Thanks: 0
Thanked 6 Times in 5 Posts
imidazol97 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post

My blower fan is not running. The other day I noticed it was off, then it came on and ran fine. Today it'* off again. Here'* what I have done so far.

Checked the fuse, tested with a DVOM and it'* fine.
Checked for voltage at the fuse, yes
Checked the relays, switched with a different set, no change.
Check the temp probe in the dash and cleaned it.
Pulled the motor out of the car and tested it on the bench, spins fine when 12v is provided.
Auto/manual, no difference.

Running out of options here, what else can I check.
You say automatic so I guess you have the automatic blower control and a Blower Control Module. Have you got another one of those to switch in. Mine failed on a 1998 by varying speeds on its own. It never refused to turn at all, but it just developed odd speeds. Others fail completely and some fail ON and stay on when the key is off (at least on some models).
imidazol97 is offline   Reply With Quote
Old 11-02-2009, 09:05 PM   #4
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That'* what I'm hopping it isn't. A new one is about $450 at rockauto. I'll find a salvage yard one first. If it does fail all together, I may just put a switch on the fan motor to turn it on.
Danthurs is offline   Reply With Quote
Old 11-08-2009, 01:24 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Well, it was working, then it stopped again. I put the volt meter on it and with the fan off in manual, I have about 1.3v, I turn the fan up to max and I get 1.9v. I can feel the heat rising out of the defroster, and the display shows everything it'* doing. I can see it in auto turn the fan up and switch the vents but the fan will not turn on and I have no voltage to speak of. So I decided I better do something. Can't go threw winter with no heat or defrost. So I went to autozone to pick up a switch. And wouldn't you know it. the fan started working when I was half way there. I picked up a switch anyways, I no longer trust the blower. So this is what I did.

I made up a small jumper cable that goes from the blower plug, to the blower. This way I can still run threw the cars controls.
Name:  PB080172.jpg
Views: 29
Size:  122.1 KB

Now if it stops working all I need to do is pop the hood and unplug the positive wire from the plug.
Name:  PB080173.jpg
Views: 16
Size:  87.7 KB

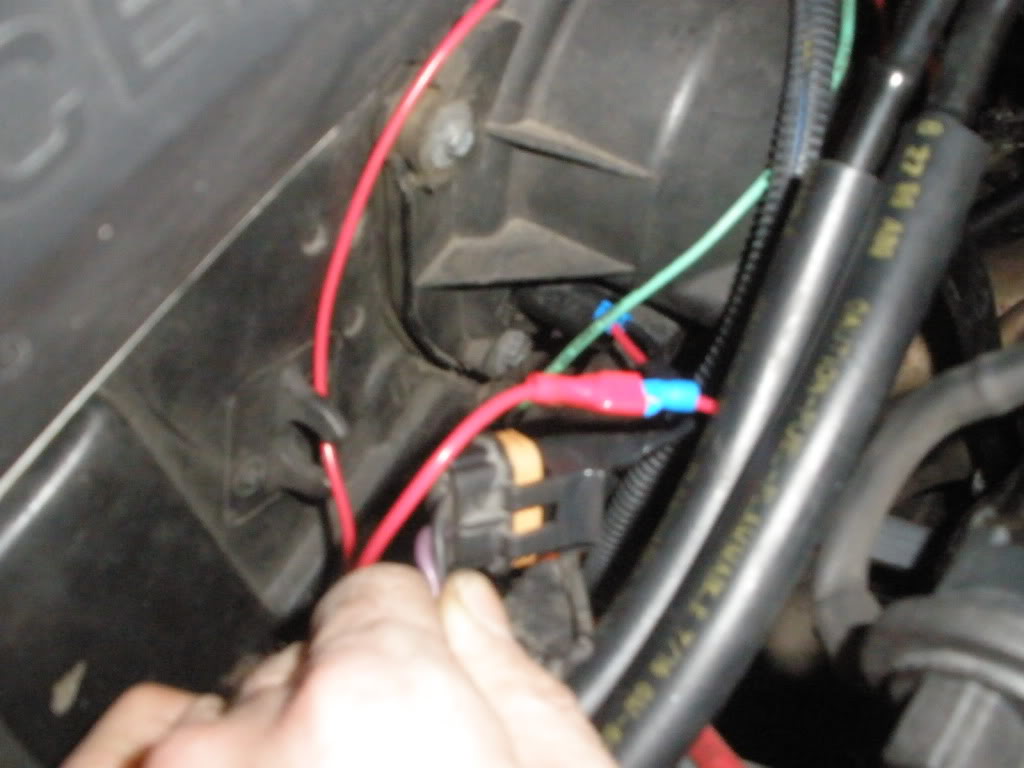

And then plug this wire in that goes to my switch.
Name:  PB080174.jpg
Views: 12
Size:  91.5 KB

Tada, I have a working blower.
Danthurs is offline   Reply With Quote
Old 11-08-2009, 01:35 PM   #6
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

Nice fix! dooes that give you true manual override with fan speed control also?
sawgunner is offline   Reply With Quote
Old 11-08-2009, 01:43 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The fan is on, or off, no speed control.
Danthurs is offline   Reply With Quote
Old 12-10-2009, 06:08 PM   #8
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

Nice post Dan and guess what. Mine just went out today too. LOL. I cant even find one on rock auto... 450 you say. maybe I'll be driving down to the boneyard tomorrow.... <sux>
popatim is offline   Reply With Quote
Old 12-10-2009, 06:33 PM   #9
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

Dan if that over-ride switch thing you did stops working...I have a theory......but no educated answer sorry
Toddster is offline   Reply With Quote
Old 12-10-2009, 09:40 PM   #10
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Been working flawlessly. Don't even know what I did. Only thought was a bad connection.
