Old 12-02-2013, 10:15 AM   #11
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2011
Location: Pointe-des-Cascades, QC
Posts: 194
Thanks: 0
Thanked 2 Times in 2 Posts
stegarsla is on a distinguished road
Default

Oh and don't forget to remove the heater door control motor connector before removing heater door, it'* not long enough to be disconnected after pull out.
stegarsla is offline   Reply With Quote
Old 12-02-2013, 12:23 PM   #12
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2011
Location: Pointe-des-Cascades, QC
Posts: 194
Thanks: 0
Thanked 2 Times in 2 Posts
stegarsla is on a distinguished road
Default

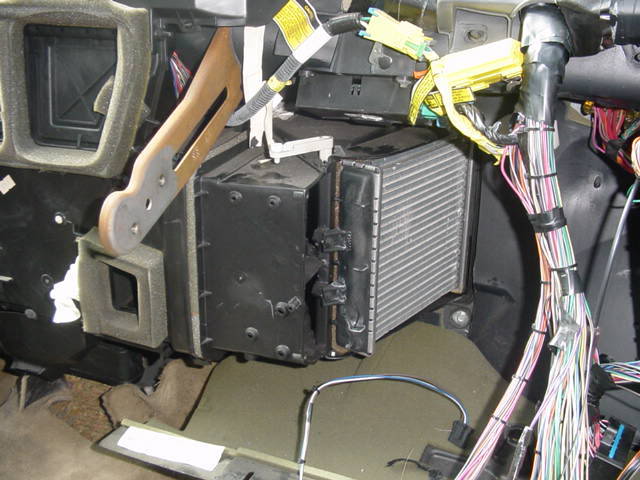

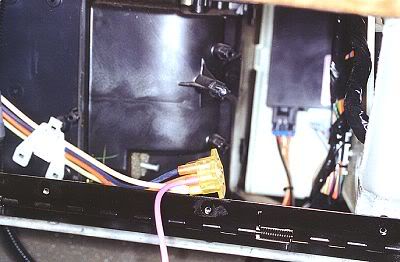

Here are two pics I took when I changed it. Don't know if it'* of any help, but I can't be bad.



Attached Thumbnails
Heater core replacement-heatercore1_zps4007e8c0.jpg   Heater core replacement-heatercore2_zps2ccf4909.jpg
stegarsla is offline   Reply With Quote
The Following User Says Thank You to stegarsla For This Useful Post:
Diamond (12-08-2013)
Old 12-02-2013, 02:50 PM   #13
Junior Member
Posts like a Ricer Type-R

Join Date: May 2013
Location: grand rapids,mi
Posts: 18
Thanked 0 Times in 0 Posts
Diamond is on a distinguished road
Default

Quote:
Originally Posted by stegarsla View Post
Here are two pics I took when I changed it. Don't know if it'* of any help, but I can't be bad.



thanks for the info, it helps im just trying to figure how to take the dash apart its driving me crazy....
Diamond is offline   Reply With Quote
Old 12-02-2013, 02:59 PM   #14
Junior Member
Posts like a Ricer Type-R

Join Date: May 2013
Location: grand rapids,mi
Posts: 18
Thanked 0 Times in 0 Posts
Diamond is on a distinguished road
Default

Quote:
Originally Posted by stegarsla View Post
Oh and don't forget to remove the heater door control motor connector before removing heater door, it'* not long enough to be disconnected after pull out.
can you outline it for me please. Thanks so much for the pics.
Diamond is offline   Reply With Quote
Old 12-03-2013, 06:48 PM   #15
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2011
Location: Pointe-des-Cascades, QC
Posts: 194
Thanks: 0
Thanked 2 Times in 2 Posts
stegarsla is on a distinguished road
Default

Its not on the pics. Its on the missing heater door. It attaches to the white rod in front of the heater core. Youll have to disconnect that too, forgot to mention it
stegarsla is offline   Reply With Quote
Old 12-03-2013, 09:00 PM   #16
Junior Member
Posts like a Ricer Type-R

Join Date: May 2013
Location: grand rapids,mi
Posts: 18
Thanked 0 Times in 0 Posts
Diamond is on a distinguished road
Default

hey I just stopped doing the job on my car I couldn't remove the plastic air cover without taking the dash off the pictures look different from mine its a 98 just that no SE or SSEi its just not the same i looked around and i still cant find the same pictures like mine im just going to AutoZone which is close and check their book. Thanks everyone for your Help. P.*. I don't know how to send my pictures here to show you.
Diamond is offline   Reply With Quote
Old 12-04-2013, 07:51 AM   #17
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the procedure says to take the glove compartment out by removing three screws under the door that comes open, and the whole compartment with two vent ducts comes out
jwfirebird is offline   Reply With Quote
Old 12-04-2013, 09:16 AM   #18
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2011
Location: Pointe-des-Cascades, QC
Posts: 194
Thanks: 0
Thanked 2 Times in 2 Posts
stegarsla is on a distinguished road
Default

Just breathe while you do it. I had a few panic attacks along with discouragement when I did it, but it'* actually pretty simple. Standing your ground as to not wanting to pay someone to do it WILL help! The only hard part is understanding the sequence of dismantling because you can't see your hardware as easily as when doing "standard" mechanics (imho) but nothing (except putting new heater core and removing heater hoses) is hard, it'* tiny screws and plastic clips and connectors.
stegarsla is offline   Reply With Quote
The Following User Says Thank You to stegarsla For This Useful Post:
Diamond (12-08-2013)
Old 12-04-2013, 09:17 AM   #19
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2011
Location: Pointe-des-Cascades, QC
Posts: 194
Thanks: 0
Thanked 2 Times in 2 Posts
stegarsla is on a distinguished road
Default

Actually, it'* not putting the new heater core that'* hard, it'* putting the door back on. The new heater core will go right in.
stegarsla is offline   Reply With Quote
Old 12-05-2013, 11:53 AM   #20
Junior Member
Posts like a Ricer Type-R

Join Date: May 2013
Location: grand rapids,mi
Posts: 18
Thanked 0 Times in 0 Posts
Diamond is on a distinguished road
Default 98 pontiac bonneville. 3800

Hey. Just wondering how to post pictures on here.i almost have my dash apart but im stuck on two screws top part of it is round and has a hole on it and the other end has a three propellers on it so what type of tool do i use on it?its by the steering column .
Diamond is offline   Reply With Quote
