Default Fuse box chart

Is there anyway someone can give me a link or email me a copy of the fuse box panel. When I got my 92 pontiac bonneville SE, it was missing the fuse cover, so I have no idea what fuse goes to what. And also the proper amps for each fuse spot. My Chilton doesn't have that info in it

Any help would be appreciated
krisfulton is offline   Reply With Quote
Old 02-04-2008, 09:37 AM   #2
Darrel
Guest

Posts: n/a
Default

no sure on this one but isn't that info usually listed in the owners manual too?
  Reply With Quote
Old 02-04-2008, 09:57 AM   #3
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

I sent a layout diagram for the fuses in my 93 (hoping it is the same). It mainly shows just the fuse numbers and not functions.
Bill
93RedSled-SSE is offline   Reply With Quote
Old 02-04-2008, 04:52 PM   #4
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

Your hotmail address errored out so the chart didn't make it, I'm afraid.
Bill
93RedSled-SSE is offline   Reply With Quote
Old 02-04-2008, 05:00 PM   #5
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

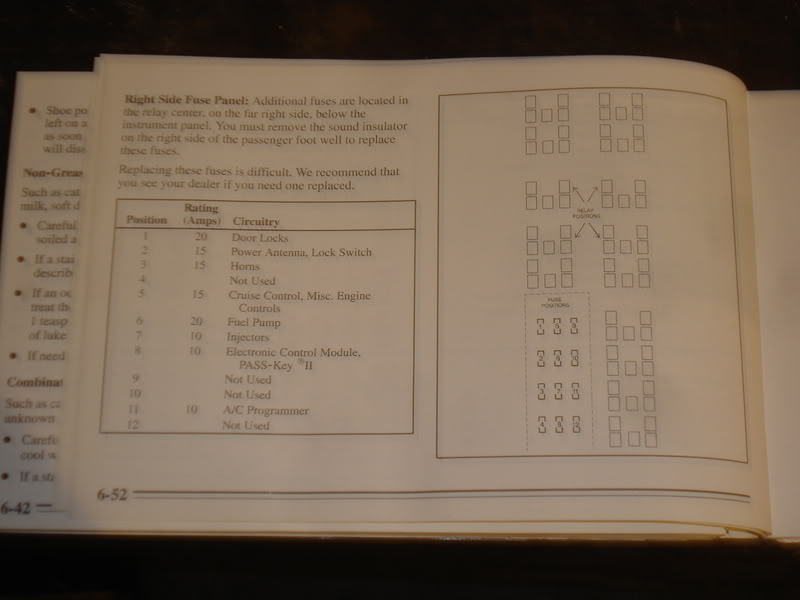

these are from a 95 manual, sorry they are blurry, I dont feel like going in the garage to take pics again
