Default Fuel hose connection...

Ok, here'* my issue. I noticed the smell of gas the other day and popped the hood with the car on. Gas was spraying from the fuel hose that runs gas into the fuel rail. Apparently the part has been discontinued from GM so i had to order it from an out of town dealer that luckily had it in stock. My problem is: the old fuel hose has these quick disconnect connections, but the new hose i got only has these simple rubber unions?? They are on the ends of the hose pretty tight so i don't think they will leak, but i'm not so sure how well they will go on the steel ends for the fuel rail at one end and the hard lines at the other end?

Does anyone have any clarification? I'm borrowing a friends car for now so i'm not driving (seems to be a little dangerous driving around with gas leaking all over the engine...) I'm planning on fixing the problem on Saturday morning because i'm giving the car back friday night. I did some searches on the forum, but only found info on replacing the o-rings in the connectors so didn't really help me. Thanks everyone!!
Widetrack Pontiac is offline   Reply With Quote
Old 08-16-2007, 11:11 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Can you humor us with pics of the old and new?
willwren is offline   Reply With Quote
Old 08-17-2007, 12:04 AM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2006
Location: Columbus, OH
Posts: 47
Thanks: 0
Thanked 0 Times in 0 Posts
Widetrack Pontiac is on a distinguished road
Default

sure thing:

This is the old connection on the car. This is the connection from the fuel hose to the fuel rail (bringing fuel to the engine). It'* like a quick disconnect. There are 2 white tabs on the bottom of the connector that you squeeze together to disconnect it.

The white tape was just to keep the gas from spraying. It just dripped instead...

Sorry about the quality of the picture. It was the best i could get with my camera at night.

Name:  fuelhoseissue009.jpg
Views: 1
Size:  29.4 KB

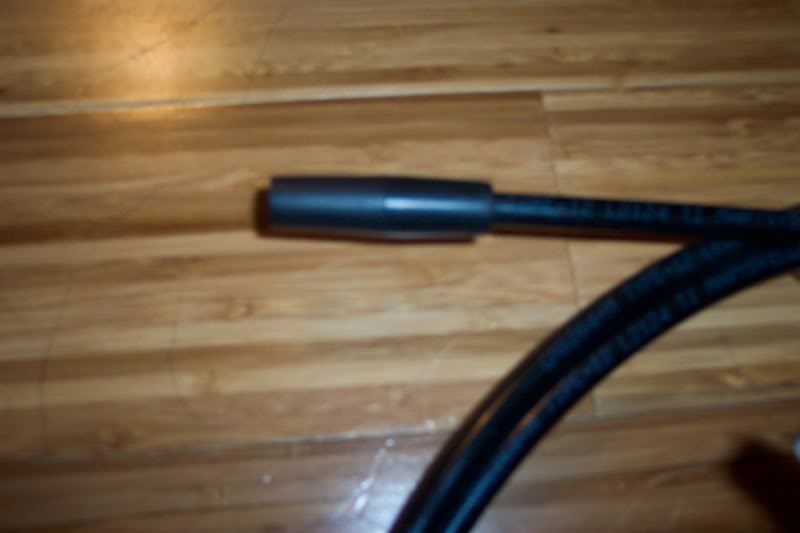

This is the new connection end on the new fuel hose.

Name:  fuelhoseissue010.jpg
Views: 1
Size:  28.1 KB

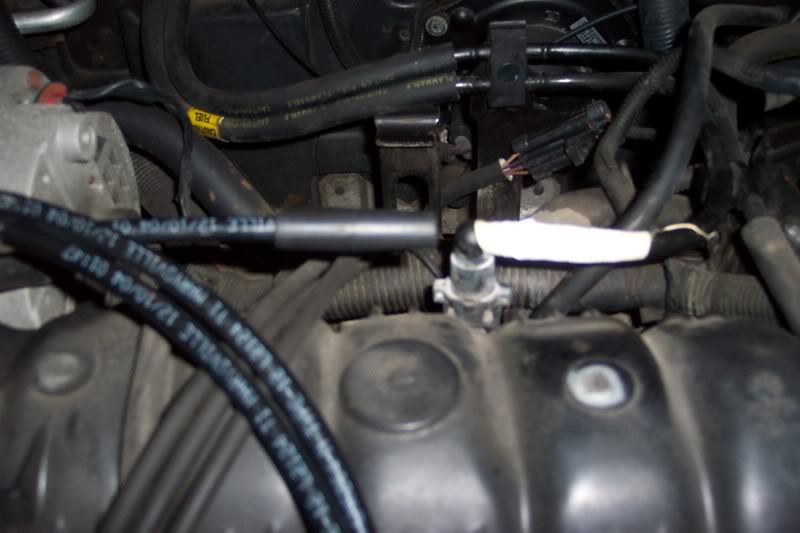

This is the comparison of the two. Don't be fooled by the size. The new hose is the same size, it was just closer to the camera.

Name:  fuelhoseissue005.jpg
Views: 1
Size:  45.9 KB


Sorry again for the quality of the pictures. Any advice would be awesome. Thanks!!
Widetrack Pontiac is offline   Reply With Quote
Old 08-17-2007, 09:26 AM   #4
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

There is a repair kit available, from Dorman I think, that has a quick connector end that you attach to the press-fit end of that new fuel hose. It should be available at your local Advance or AutoZone. I've not bought one, but I know they exist.
lash is offline   Reply With Quote
Old 08-17-2007, 11:34 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Tough to tell, that hose you have looks like the evap vent hose. Do those actually connect and make a good connection that doesn't shower the area with fuel?
BillBoost37 is offline   Reply With Quote
Old 08-17-2007, 12:13 PM   #6
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Don (jr's3800) had to do the fix on his '95, using a similar connection, Bill. It seems to be fuel tight so far. It connects to a barbed male end.

I'll try to roust him up and see where exactly he got the repair kit.

< runs off erratically, hoping that nobody will notice he has no earthly idea where he'* going...>
lash is offline   Reply With Quote
Old 08-17-2007, 12:45 PM   #7
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

First off is that the entire fuel line? And that does look a lot like an EVAP hose...

The repair kit is a bit of a PITA.... I may try and attempt to get mine a little better..

Here is the deal with the barbed fitting... The New line has to be soaked in pretty much boiling water... At this point its soft enough to install on the fitting( I dropped the fitting in the water too to keep it warm to give me a few seconds to work with it all ) It slips onto the fitting... The hard part is getting the fuel line on there.... The Fuel line will be harder and more difficult to deal with.... The Fuel line is a decent bit flexible until it has seen fuel for a day or 2... Once it sees fuel it will begin to harden..

I have not leaked a drop from the barb fitting.... Its dry as a bone... But my preference is to replace the line from the rail to the fuel filter and that will cost me $94 from GM

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 08-17-2007, 01:50 PM   #8
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

OK Don, but where did you get the kit?
lash is offline   Reply With Quote
Old 08-17-2007, 01:52 PM   #9
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by lash
OK Don, but where did you get the kit?

OMG... How did I miss that....


I got the dorman kit from Rock Auto

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 08-17-2007, 01:57 PM   #10
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

lash is offline   Reply With Quote
