Default Factory Shop Manuals

Does anyone out there have the Pontiac Service Manuals (2 books) for the 1993 Bonneville?

If anyone does, does it show how to service/repair/replace the electric antenna mast?

I hate to buy them and there is no info in there about how to do it.

Thanks
Mr. Bill is offline   Reply With Quote
Old 04-19-2010, 03:08 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Bill no need. Ok, where'd I leave those pictures.?? Here they are!

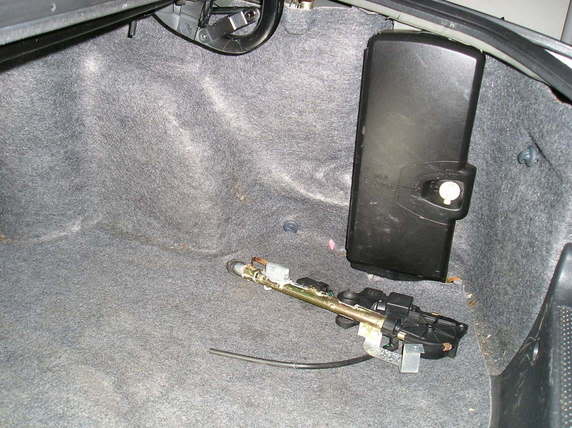

Have your new antenna
Name:  Trunkbeforeantenna.jpg
Views: 2
Size:  43.3 KB

Remove the jack and stuff from the box.
Name:  Trunkwjackout.jpg
Views: 2
Size:  50.1 KB

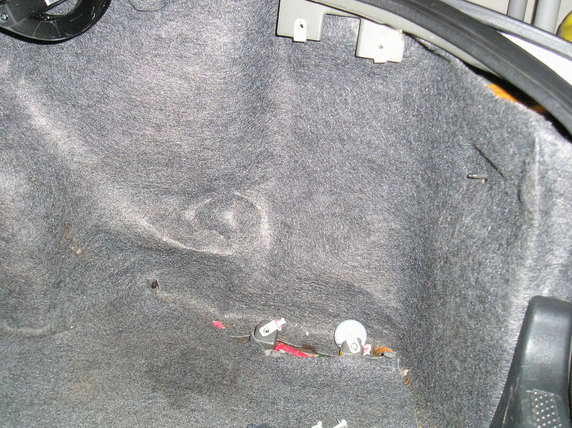

Remove box by pulling the 10mm bolts
Name:  Trunkwjackboxout.jpg
Views: 2
Size:  43.1 KB

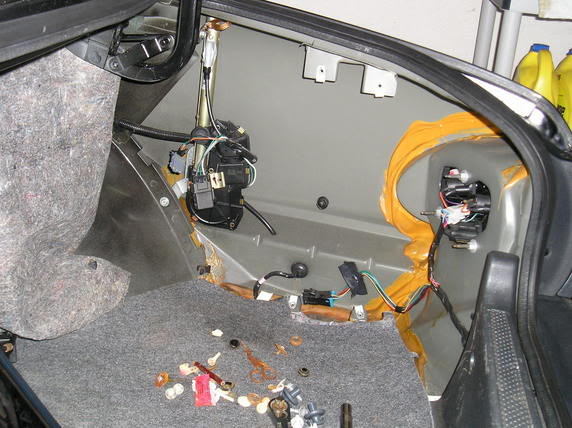

Pull back the carpeting to gain access to the antenna
Name:  Trunkcarpetremoved.jpg
Views: 2
Size:  51.8 KB

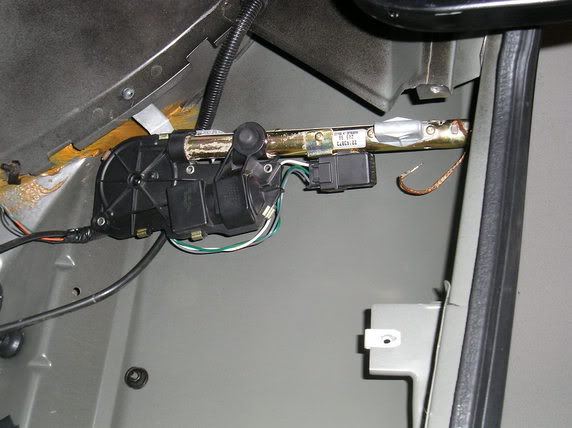

Remove the one 10mm bolt holding the silver bracket to the body at the base of the antenna and the ground strap that is bolted near the top of the mast.
Name:  Trunkantennagoingin.jpg
Views: 2
Size:  39.7 KB

If memory serves me correctly, the antenna is now free and pulls down, then out.
BillBoost37 is offline   Reply With Quote
Old 04-19-2010, 03:45 PM   #3
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

easiest to replace the while antenna than just the mast. If you can't find one for under $40, let me know and I can get you one tested working and shipped (in US) to you for under $40.

Pictures bill has are exactly what is needed.
JimmyFloyd is offline   Reply With Quote
Old 04-19-2010, 07:14 PM   #4
Senior Member
Posts like a Turbo

Join Date: Oct 2009
Posts: 291
Thanks: 0
Thanked 0 Times in 0 Posts
jdaniels is on a distinguished road
Default

Wow. When I tried to fix mine, I completely snapped it off.
I've got my antenna mast held up 24/7 by plumber'* putty and have all the holes puttied up and check them every other week to make sure.

I'll have to get a new one and follow these pictures later this summer for sure.
jdaniels is offline   Reply With Quote
Old 04-20-2010, 08:53 AM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2010
Location: Frederick Co. Md.
Posts: 58
Thanks: 0
Thanked 1 Time in 1 Post
Mr. Bill is on a distinguished road
Default

I found a part number for just a replacement mast with the nylon cord on it. 88891023 through GMPartsDirect but I sent them an e-mail to see if that part number will install inside the original factory motor unit. They also make a whole motor & mast unit 88891021 and that 1023 part number may be the mast replacement for that motor & mast unit and not for the original motor unit. When I called the local Pontiac dealer last week they said they didn't have a replacement mast for the factory motor unit, only a replacement mast for the newer motor unit. So I will wait and see what GMPartsDirect says.

JimmyFloyd...I may get back in touch with you on that offer.
Mr. Bill is offline   Reply With Quote
Old 04-20-2010, 10:52 PM   #6
Senior Member
Posts like a Turbo

Tom_Sawyer_Man's Avatar

Join Date: Dec 2009
Location: Kitchener On.
Posts: 348
Thanks: 0
Thanked 0 Times in 0 Posts
Tom_Sawyer_Man is on a distinguished road
Default

you make that look so simple Bill. Nice post
Tom_Sawyer_Man is offline   Reply With Quote
Old 04-21-2010, 08:55 AM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2010
Location: Frederick Co. Md.
Posts: 58
Thanks: 0
Thanked 1 Time in 1 Post
Mr. Bill is on a distinguished road
Default

Got this back from GMPartsDirect:

Hi,
Part number 88891023 is not a replacement mast for the original power
antenna mast. It is the replacement mast for part number 88891021.
General Motors does not offer a replacement mast for the original
equipment power antenna.

Guess that answers that question........:(
Mr. Bill is offline   Reply With Quote
Old 04-21-2010, 11:03 AM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2010
Location: Frederick Co. Md.
Posts: 58
Thanks: 0
Thanked 1 Time in 1 Post
Mr. Bill is on a distinguished road
Default

Would I be safe in assuming that the original factory electric antenna also fit Oldsmobiles, Buicks, Chevys and Cadillacs?
Mr. Bill is offline   Reply With Quote
Old 04-21-2010, 11:45 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I have noted that Caddy'* from the same years look similar. Actual checking I found that if you search the junkyard, you can find the same antenna with the same everything except the bracket which bolts onto the antenna if memory serves correctly.
BillBoost37 is offline   Reply With Quote
Old 04-22-2010, 09:59 AM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2010
Location: Frederick Co. Md.
Posts: 58
Thanks: 0
Thanked 1 Time in 1 Post
Mr. Bill is on a distinguished road
Default

Managed to get an aftermarket unit installed last night and it works but the plastic ferrules they give you didn't have one with a great enough angle to it so when the antenna goes up it'* kinda crooked, but I do have tunes.
