Old 02-01-2010, 02:32 PM   #81
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2010
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
cspoonts is on a distinguished road
Default

yeah they all still ground out.
cspoonts is offline   Reply With Quote
Old 02-01-2010, 03:16 PM   #82
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2010
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
cspoonts is on a distinguished road
Default

okay I found one problem. Near the transmission the round plug with 7 contacts. It had 3 wires melted together one black two brown. One of the brown is from 5C. Fixed that. Now I get now grounded contacts at the relays if the transmission is unplugged. If I plug in the transmission the relays find ground on pin 85 again. What does this connector plug into on the transmission?
cspoonts is offline   Reply With Quote
Old 02-01-2010, 03:23 PM   #83
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2010
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
cspoonts is on a distinguished road
Default

Okay so this is definetly the problem area. I was getting ground before with the transmission uplugged because these wire were melted together. Now I get now ground and continuity between all the wires at the relays and the transmission and the fuse box. When I plug this connector to the transmission everything grounds out. So now I just need to know what this is and how to fix it.
cspoonts is offline   Reply With Quote
Old 02-01-2010, 03:25 PM   #84
Senior Member
Posts like a Turbo

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Hey Bill, is that a 4t60 in that car? If so, I would check that vacuum line on the shift module.
Sorry this has nothing to do with the tread but, where did you get that hood. I love it.
bigbadbonneville is offline   Reply With Quote
Old 02-01-2010, 05:29 PM   #85
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2010
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
cspoonts is on a distinguished road
Default

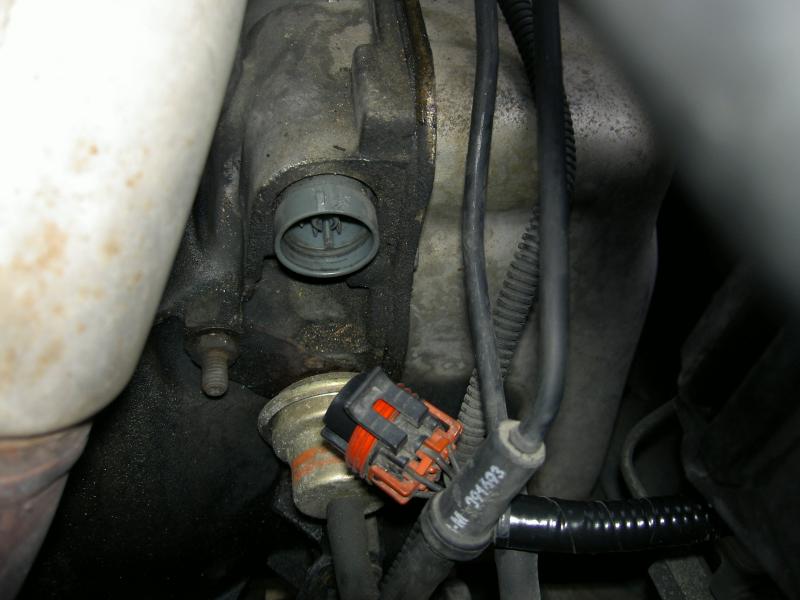

Okay so this gray round connector on the top, front side of the of the transmission is very loose. I can turn it about 25 degrees left to right and it pulls in and out just a bit. This is where I am getting my circuit grounded when I plug this connector in. I tried plugging it in then moving the connector around and no change. I have attached a picture. Anyone know what this is?
Attached Thumbnails
Error Code P1670 QDM questions-february-10-024.jpg
cspoonts is offline   Reply With Quote
Old 02-01-2010, 05:57 PM   #86
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

That'* nothing but the transmission connector that tells it everything.

I'd fix those wires and give it a check with a fuse. What'* one more..lol
BillBoost37 is offline   Reply With Quote
Old 02-01-2010, 06:05 PM   #87
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2010
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
cspoonts is on a distinguished road
Default

Is it suppose to be loose?
cspoonts is offline   Reply With Quote
Old 02-01-2010, 06:16 PM   #88
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

It being able to twist is ok. You shouldn't be able to pull it out at all. Here'* what it looks like on the inside. The connector is in the upper right hand corner.

Mike is offline   Reply With Quote
Old 02-01-2010, 06:27 PM   #89
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2010
Posts: 51
Thanks: 0
Thanked 0 Times in 0 Posts
cspoonts is on a distinguished road
Default

Okay so I tried another fuse. I left the transmission unplugged and started the car. Fuse did not pop car is in limp mode. Turned off car plugged in transmission started car and fuse popped immediately. I am thinking maybe the wires inside are grounding out. A few days ago before I started messing with the wiring and the plugs a fuse would last for a minute before popping without the fans on. Now it pops immediately. I am thinking I have a connector grounded out right at that plug in the transmission. Any thoughts? anyone have a schematic for the transmission wiring?
cspoonts is offline   Reply With Quote
Old 02-01-2010, 06:30 PM   #90
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Sounds like there'* a short inside the case. Do you see any damage to the plug?
