Default engine swap

i have a 1992 pontiac bonneville ssei with a series 1 supercharged engine. i want to know is it possible if i can swap to a series 2 sc engine. will it be an direct fit. how many yrs i can go up before the engine wont fit. i was told i can go up to any where 5 yrs after from 1992 -1997 is that true
chitownwest is offline   Reply With Quote
Old 05-07-2008, 09:20 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Not a direct swap. You need the engine, trans, PCM, axles, and engine/trans wiring harness, as well as factory service manuals for both years (yours and the donor) for the complete swap.

The PCM, Trans, and Engine need to be from the same year.
willwren is offline   Reply With Quote
Old 05-07-2008, 09:39 AM   #3
Senior Member
Posts like a 4 Banger

Join Date: Dec 2002
Location: Charlotte NC
Posts: 121
Thanks: 0
Thanked 0 Times in 0 Posts
Brian95Blown is on a distinguished road
Default Re: engine swap

Quote:
Originally Posted by chitownwest
i have a 1992 pontiac bonneville ssei with a series 1 supercharged engine. i want to know is it possible if i can swap to a series 2 sc engine. will it be an direct fit. how many yrs i can go up before the engine wont fit. i was told i can go up to any where 5 yrs after from 1992 -1997 is that true
I don't recommend doing it without a donor car. The entire 97-99 system can be made to work and almost no modification to the car'* body is needed but the wiring is time consuming and requires a lot of thought and concentration.

Fuel tank is the same except 98-99 which had a recess for the tank pressure sensor. The fuel lines are different, it helps to have the 97-99 lines and sending unit so there isn't any cutting and splicing.

the A/c system should interchange.

But if done right...(note the donor 99 car in the window)

Name:  L67Swap2008001.jpg
Views: 22
Size:  88.1 KB

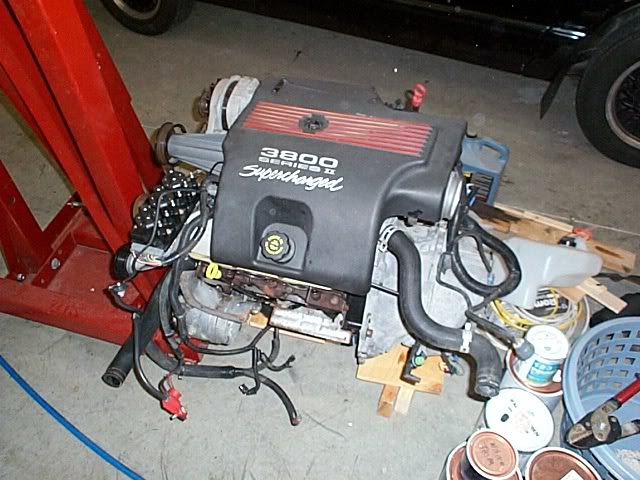

Name:  L67Swap2008002.jpg
Views: 23
Size:  82.1 KB
Name:  L67Swap001.jpg
Views: 26
Size:  76.8 KB
Name:  L67Swap008.jpg
Views: 24
Size:  75.9 KB
Name:  L67Swap011.jpg
Views: 22
Size:  71.6 KB
Name:  L67Swap023.jpg
Views: 21
Size:  84.1 KB
Name:  L67Swap024.jpg
Views: 25
Size:  88.2 KB
Name:  L67Swap027.jpg
Views: 26
Size:  52.3 KB


.....You can have an unusual ride.
Brian95Blown is offline   Reply With Quote
Old 05-07-2008, 03:15 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2008
Location: chi town illinois
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
chitownwest is on a distinguished road
Default

ok thinx what yrs can i use so it can be a direct fit so i dont have to change any thing?
chitownwest is offline   Reply With Quote
Old 05-07-2008, 03:30 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

92/93 SSEi or 92-93 Buick (PA Ultra), or 94/95 SC out of a Buick or Pontiac if you keep your SC, TB, FPR, and EGR.
willwren is offline   Reply With Quote
Old 05-07-2008, 03:41 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2008
Location: chi town illinois
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
chitownwest is on a distinguished road
Default

im keepin all my sensors ant things thanx. is it cheaper to rebuild?
chitownwest is offline   Reply With Quote
Old 05-07-2008, 03:53 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

No, it'* not.
willwren is offline   Reply With Quote
Old 05-07-2008, 07:02 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2008
Location: chi town illinois
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
chitownwest is on a distinguished road
Default

where can i get the bonneville club fourm logos to put my car
chitownwest is offline   Reply With Quote
Old 05-07-2008, 07:56 PM   #9
Senior Member
True Car Nut

Join Date: Dec 2003
Location: Corn Fields, IN
Posts: 2,766
Thanks: 0
Thanked 0 Times in 0 Posts
John Deere Boy is on a distinguished road
Default

Quote:
Originally Posted by chitownwest
where can i get the bonneville club fourm logos to put my car
http://www.bonnevilleclub.com/forum/...ic.php?t=96744

In the future, start a new thread for seperate, off-topic questions.
John Deere Boy is offline   Reply With Quote
Old 05-14-2008, 02:48 AM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2008
Location: chi town illinois
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
chitownwest is on a distinguished road
Default

what is FPR ?
