Default ELC Trouble - Compressor?

I have replaced my rear struts but they do not air up when the compressor runs. I unplugged the 2 wire connector in the trunk and manually started the compressor with the inflator switch. Still nothing. I've checked the inflator valve for pressure and even unhooked one of the air hoses from the strut and checked for air while the compressor is running. Nothing.

The compressor seems to run normal. Is there anything else I can check that would be keeping air from reaching the struts? Or does this sound like a bad compressor?
rmorton is offline   Reply With Quote
Old 05-01-2008, 02:14 AM   #2
Senior Member
Posts like a Supercharger

Join Date: Sep 2007
Location: Zelienople, Pennsylvania
Posts: 166
Thanks: 0
Thanked 0 Times in 0 Posts
White93z34 is on a distinguished road
Default

If the compressor is running and you cannot get air out of the airline coming from the compressor, there is a 90% chance that the drier on the compressor has gone bad, i *believe* that part is available from the entire compressor assembly.
White93z34 is offline   Reply With Quote
Old 05-01-2008, 09:43 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2007
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
rmorton is on a distinguished road
Default

Has anybody ever replaced the drier on one of these compressors? Is it cost effective to do that rather than replacing the compressor?

If anybody has any experience with that please let me know. I'm not really sure where the drier is located on the compressor...
rmorton is offline   Reply With Quote
Old 05-01-2008, 09:45 AM   #4
Senior Member
Posts like a Northstar

Join Date: Sep 2005
Location: Dayton, OH
Posts: 600
Thanks: 0
Thanked 0 Times in 0 Posts
imidazol is on a distinguished road
Default

Somewhere I've see someone post a method and pictures for taking apart the compressor/motor and cleaning it and repairing it that way. I don't recall where. When the compressor is running is any air coming out the pressure side connector?
imidazol is offline   Reply With Quote
Old 05-01-2008, 11:48 AM   #5
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

There is an outside chance that the little spring clip that holds the drier onto the compressor head has come loose, allowing the pressure to escape before going into the drier. If so, the drier will feel "floppy" and not secured. That'* the only thing that holds it on. I had this problem and the compressor was forever running, especially after parking it in the garage.

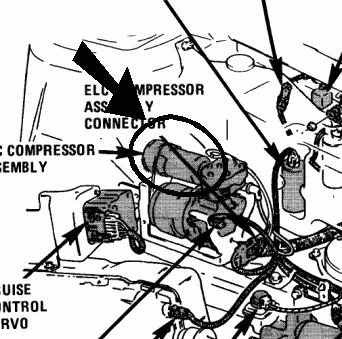

Here is the location.
Name:  Compressor.gif
Views: 52
Size:  25.1 KB
93RedSled-SSE is offline   Reply With Quote
Old 05-01-2008, 11:54 AM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2007
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
rmorton is on a distinguished road
Default

I soaked the entire assemby down with soapy water while on the car and ran the compressor, but couldn't see any leaks. I've just taken the whole assembly down off the car and am going to clean all the dirt and crud off. None of the clips are loose. Based on other posts, I see that I should be oiling some of these parts.
rmorton is offline   Reply With Quote
Old 05-01-2008, 11:56 AM   #7
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

Cool. You're way ahead of me.
93RedSled-SSE is offline   Reply With Quote
Old 05-01-2008, 01:06 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2007
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
rmorton is on a distinguished road
Default

I cleaned everything up and then plugged the wiring harness back in and turned the compressor on. No air out the end of the pressure check valve. So I started working my way back unhooking parts until I finally took the dryer off and checked for air coming directly out of the compressor. Practically nothing. I could feel the slightest bit when I wet my lips and pressed them up to the hole. But its virtually nothing. I took the air filter off and held a finger over the hose. About the same amount of suction - nearly nothing. But the compressor starts and runs fine? Doesn't sound bad or anything.

Any thoughts? If there'* no air before the dryer, it can't be the dryer can it? Should I pour some air tool oil in that dryer hole? Is the compressor shot? Should I take it apart further?
rmorton is offline   Reply With Quote
Old 05-01-2008, 01:28 PM   #9
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

Here'* a link to a kit that lets you use the shocks as conventional air shocks. You might want to use this until getting the pump fixed or replaced. About 20 lbs of air will lift the back up.
http://www.partsamerica.com/productd...artNumber=AK29

You can take the pump apart but can't buy any parts to repair anything inside. A new pump is over $300 at GMPartsDirect. Inside you'll find a solenoid that operates a tiny valve. That valve is what lets air out to lower the rear end. That'* where mine was all corroded & I wasn't able to remove it without destroying the valve.
Technical Ted is offline   Reply With Quote
Old 05-01-2008, 02:03 PM   #10
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

Yes, that solenoid valve connection is on the compressor head to let the air out on deflate. As one last ditch effort, try measuring across the 2 wires going into it. Make sure you have 0 volts.
I would not recommend oil in the drier. It is a dry chemical type and I would think that might screw it up.
I don't know if a person could take the head off the compressor and clean that solenoid valve up or not. No experience there and my book is at home. :( Maybe a salvage yard?
