Default ECC/HVAC problems!

Okay, sorry for creating a post on possibly an already answered problem, but I haven't found anything that can exactly match the problem I'm experiencing right now.

A while ago, I had a battery terminal problem that caused my car'* power to go in/out a several times. After getting this fixed, the ECC temp started blinking. I had the error code read and it said that the HVAC didn't have enough power (a possible vaccuum leak within the unit). The guys at the GM dealership said it was contained in the HVAC unit itself. The A/C often comes out hot, the heater often comes out cold...the various vent modes work okay for the most part, but it does often not fully flow from one single vent mode, and the A/C gets stuck in the top defrost vents (though it has always started coming out from those vents back when it worked). For a while the error was gone, and the system worked flawlessly, but after having the power disconnected again, the error came back and so did the problem. Fiddling with the controls from hot to cold, recirc off and on, can sometimes make it switch to the proper setting. The guys at the dealership said it worked when they jiggled the unit around a bit. I haven't gotten it checked since the 1st time it occured.

Even more info: I noticed that it usually starts coming out hot, and then a thud, then cold air. Please help with a very cheap solution. chr0mius is a poor boy.

Also, the person that helps me fix this can win 1 free internet.*


*Not valid in Alaska, Hawaii,the District of Columbia, the 48 contiguous United States, Canada, Mexico, or Western European nations.
chr0mius is offline   Reply With Quote
Old 01-25-2006, 03:30 AM   #2
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jan 2006
Location: Riverside, CA
Posts: 1,137
Thanks: 0
Thanked 0 Times in 0 Posts
chr0mius is on a distinguished road
Default

Also, would this... http://cgi.ebay.com/ebaymotors/96-PO...QQcmdZViewItem be what I'm looking for (the HVAC programmer thing). I don't think so...just had to ask.
chr0mius is offline   Reply With Quote
Old 01-25-2006, 09:07 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

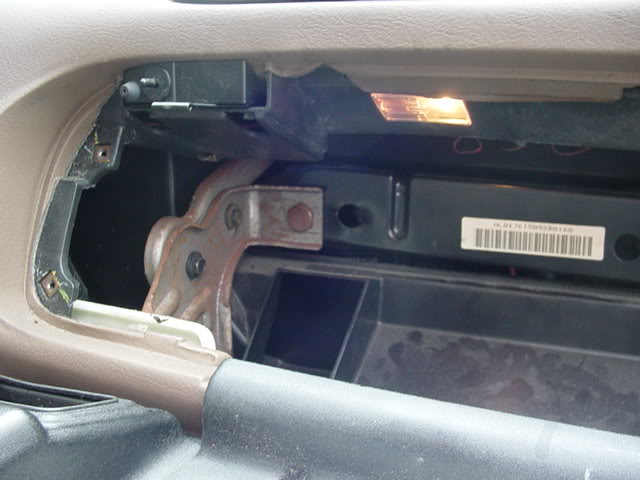

For the cheapest fix I'd pull the glove box and verify through the access hole that the air/mix door is the issue.
Name:  HVAClinkage.jpg
Views: 0
Size:  39.0 KB

Once established, you could use the REDNECK FIX
BillBoost37 is offline   Reply With Quote
Old 01-25-2006, 10:37 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'm betting low vacuum as well. I think the dealer was on the right track. You need to double-check all your vacuum lines.
willwren is offline   Reply With Quote
