Default Drilled T-stat flange

Does anybody have a picture of the drilled thermostat flange from the tech article? Im still a little confused as to how to get all of the air out when i refill mysystem.Thanks
hvacguy is offline   Reply With Quote
Old 02-21-2008, 12:50 AM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

harofreak00 is offline   Reply With Quote
Old 02-21-2008, 01:11 AM   #3
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Alberta, Canada
Posts: 170
Thanks: 0
Thanked 0 Times in 0 Posts
Drunken Sailor is on a distinguished road
Default

Yes, this makes bleeding the system a breeze!
Drunken Sailor is offline   Reply With Quote
Old 02-21-2008, 01:32 AM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2008
Location: Toledo, Ohio
Posts: 70
Thanks: 0
Thanked 0 Times in 0 Posts
hvacguy is on a distinguished road
Default Thanks!!!

Nice I would have done it differently without the pic. Thanks for the quick response guys
hvacguy is offline   Reply With Quote
Old 02-21-2008, 01:40 AM   #5
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

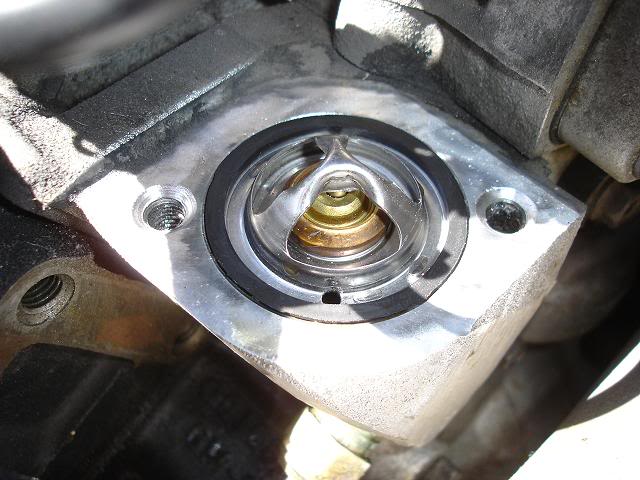

I would make the holes a little smaller than I have pictured. Those are 1/8", I would do 1/16"
harofreak00 is offline   Reply With Quote
Old 02-21-2008, 01:46 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2008
Location: Toledo, Ohio
Posts: 70
Thanks: 0
Thanked 0 Times in 0 Posts
hvacguy is on a distinguished road
Default Will do

Will do. Thanks. Is there more than one hole drilled in yours?
hvacguy is offline   Reply With Quote
Old 02-21-2008, 01:49 AM   #7
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Yes, I had 2, opposite each other
harofreak00 is offline   Reply With Quote
Old 02-21-2008, 01:51 AM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2008
Location: Toledo, Ohio
Posts: 70
Thanks: 0
Thanked 0 Times in 0 Posts
hvacguy is on a distinguished road
Default

Sounds good. Thanks again.
hvacguy is offline   Reply With Quote
Old 02-21-2008, 11:37 AM   #9
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

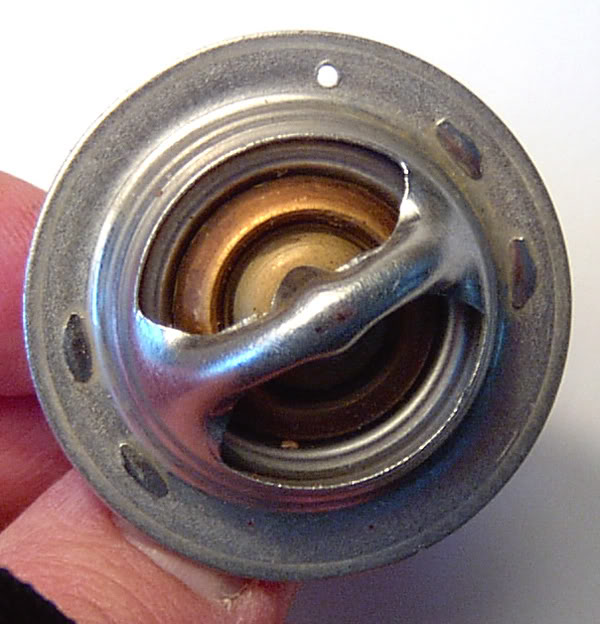

Here'* a picture of one of mine. You are looking at a 1/16" hole. When you install the thermostat, you want to set the hole at the high point in the thermostat housing. Looking at the housing from the front of the car, that would be the 12:00 O'Clock position. That will allow that last little bit of air to find its way out of the LIM.

Name:  drilledstatx1600.jpg
Views: 4
Size:  67.4 KB
bill buttermore is offline   Reply With Quote
Old 02-21-2008, 02:48 PM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2008
Location: Toledo, Ohio
Posts: 70
Thanks: 0
Thanked 0 Times in 0 Posts
hvacguy is on a distinguished road
Default

Thanks Bill. I love BC
