Dimmer Switch Short? - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 11-09-2011, 01:20 AM   #11
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

Looking on rockauto.com, there is a switch listed for the automatic lights, but its about $170. My internet isn't cooperating with me tonight, and won't let me open that site again to look at it, but I doubt its worth it to you to spend that money on something like that. I know I wouldn't. haha.
2k2cse is offline   Reply With Quote
Old 11-10-2011, 10:04 AM   #12
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2009
Posts: 363
Thanks: 0
Thanked 0 Times in 0 Posts
kparrent is on a distinguished road
Default

Yikes. Thats a bit steep for me being too lazy to flip a switch for my lights. I'll have to checkout Amazon and similar. The problem is everyone just gives part numbers and no details about the parts.

It seems you were (hopefully) right about a connection issue as well, or my alternator gave out. Or driving with the loose connection caused my alternator to go out. Only time will tell. About to go take everything off and reseat and try to track someone down to give her a jump.

My car kept getting down to about 8 V on the way home last night (just barely enough to stay on, in fact, it turns off the radio and other unnecesarry things at that point). I was able to keep it going for a few miles by pulling off to the side of the road and playing with the positive alternator connection on the alternator. Lights would jump right back up, I'd start to drive, right back down. So I gave up and had AAA tow it back here. Something about playing with that positive alternator cable in the rain without gloves which is incredibly close to the block just didn't feel right. So there is a chance I overworked it and it'* dead now. But hey! It'* under warranty, it was worth a shot
kparrent is offline   Reply With Quote
Old 11-10-2011, 10:20 AM   #13
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you shouldnt be able to play with the alt cable and have it make a difference. it may be corroded inside or loose
jwfirebird is offline   Reply With Quote
Old 11-10-2011, 11:55 PM   #14
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2009
Posts: 363
Thanks: 0
Thanked 0 Times in 0 Posts
kparrent is on a distinguished road
Default

Charging problems seem to be fixed. took apart and reconnected everything. I think the problem was either the negative battery cable our the ground bolts being dirty. The negative battery cable head near a 90 degree bend on the block end terminal. It was still a continuous piece, but metal that thick never does well with bends. Also, everyone always talks about cleaning the cable connections, but no one ever mentions cleaning the ground bolts themselves. my cables were clean as could be, but unless you remove the bolts to inspect them you don't see all the dirt and oil that build up in the threads and in the nut. So I took those out and soaked them in degreaser and used a wire brush on them. I replaced negative battery cable, and also got gold crimp connectors for the small grounds underneath the icm (five wires total). I soldered some of these wires together to use three crimp connectors, crimped them on, then soldered the tip of the wires to the connector for good conductivity. I drove 45 min, mostly highway speeds with very little signs of issue. I occasionally had just a little bouncing at idle, maybe 100-300 mV, but that little bouncing could just be noise on the line too I suspect. Everything seems good for that. So back to the dimmer switch.

Anyone know a good part for less than $170 for automatic lights?
kparrent is offline   Reply With Quote
Old 11-11-2011, 08:21 AM   #15
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the bolts are just as important as the cables and ends, they have to carry the current into the chassis. current doesnt go through paint either. i would put something over the connections to keep the corrosion out now
jwfirebird is offline   Reply With Quote
Old 11-15-2011, 02:44 PM   #16
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2009
Posts: 363
Thanks: 0
Thanked 0 Times in 0 Posts
kparrent is on a distinguished road
Default

I was able to get a hold of the automatic switch standard motor products DS657 for $42 on Amazon. I emailed the guy to make sure it was brand new, never installed. He says he just got a bunch of them cheap and has surplus. 17 left! If you need an automatic one you won't beat this deal.
kparrent is offline   Reply With Quote
Old 11-15-2011, 03:44 PM   #17
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

That'* great! I'm glad you found a great deal. Much better than the $170 haha
2k2cse is offline   Reply With Quote
Old 11-15-2011, 10:16 PM   #18
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2009
Posts: 363
Thanks: 0
Thanked 0 Times in 0 Posts
kparrent is on a distinguished road
Default

You and me both. I'll probably install over the long turkey weekend and will try to take a few pictures as well
kparrent is offline   Reply With Quote
Old 07-07-2014, 07:40 PM   #19
Junior Member

Join Date: Nov 2013
Location: Berne, Switzerland
Posts: 1
Thanked 0 Times in 0 Posts
sani is on a distinguished road
Default

I had the same problem in my Bonnie SSEi '92, but had no chance to replace the whole switch.

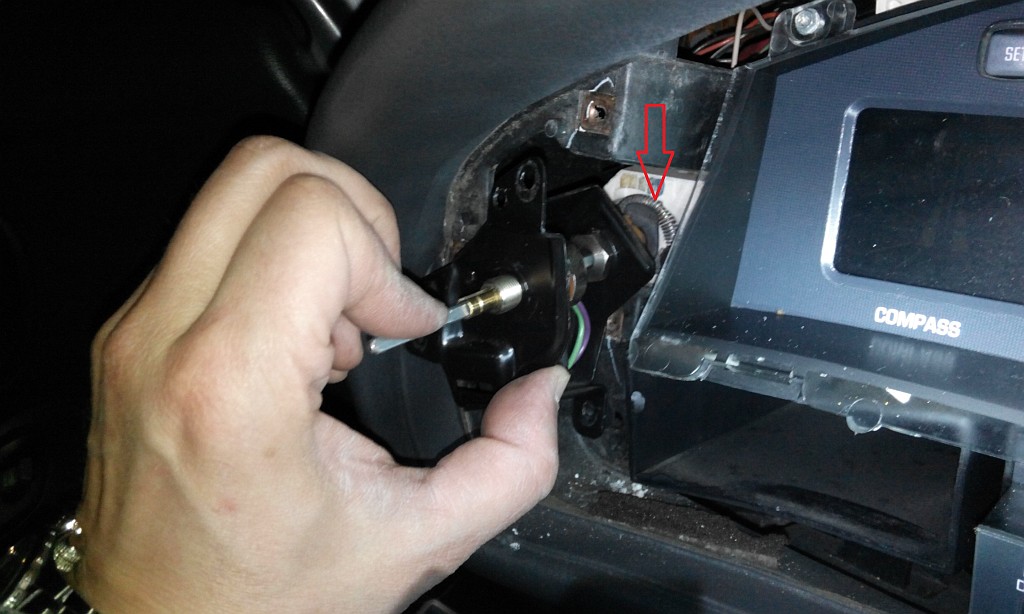

At different dimmer positions, there were shorts: the wire (*. image) got the full power and glowed, the panel lights stay dark.
I fixed the position of the dimmer on the leftmost position --> the panel lights stay at maximum brightness.
The automatic lights option - if present at all - stays untouched.
Attached Thumbnails
Dimmer Switch Short?-light_knob.jpg

Last edited by sani; 07-07-2014 at 07:42 PM.
sani is offline   Reply With Quote
