Default deeper than a belt issue

so uh, i barely made it home the other night because my serpentine belt fried....not a big deal....but then i realized that it was because the pulley on what seems to be the water pump or main pulley wiggles all over the place. I can just see that this sucks. I need to know what to do. Please someone advise...thanks so much.
e8r23i80c is offline   Reply With Quote
Old 06-29-2007, 07:50 PM   #2
Senior Member
Posts like a 4 Banger

Join Date: Jun 2007
Posts: 111
Thanks: 0
Thanked 0 Times in 0 Posts
91buickman is on a distinguished road
Default

more than likley its a idler pulley but the one you wiggled was it bigger or smaller ?
91buickman is offline   Reply With Quote
Old 06-29-2007, 11:26 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Lombard IL
Posts: 41
Thanks: 0
Thanked 0 Times in 0 Posts
e8r23i80c is on a distinguished road
Default

Nah, its not an idle pulley.... it was a bigger....to me it looks like what should be the main pulley but a buddy from work says its the water pump.....I wish I knew more....thanks
e8r23i80c is offline   Reply With Quote
Old 06-30-2007, 09:04 AM   #4
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

You need to replace either the water pump or the harmonic balancer. If it is the big smooth pulley halfway down, you need to replace the water pump. If it is the even bigger, grooved pulley just below the water pump at the bottom of the engine, you need to replace the harmonic balancer.

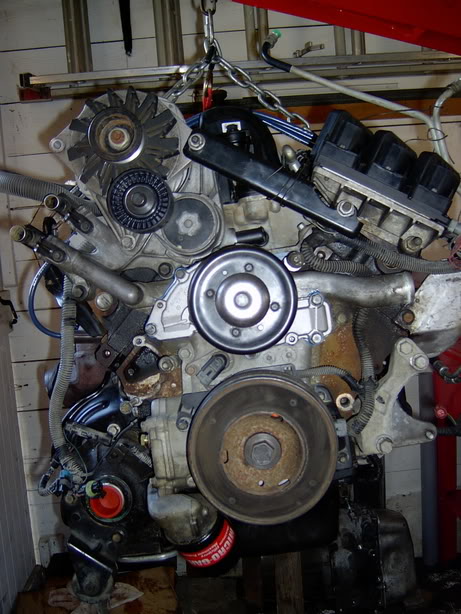

This image is of a '95 Series II, but your '94 engine will be similar.
Name:  ETwtrpmp.jpg
Views: 5
Size:  73.9 KB
bill buttermore is offline   Reply With Quote
Old 06-30-2007, 11:14 AM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Lombard IL
Posts: 41
Thanks: 0
Thanked 0 Times in 0 Posts
e8r23i80c is on a distinguished road
Default

so it is the water pump after all....do I need to know any torch specs to replace it or no???
e8r23i80c is offline   Reply With Quote
Old 06-30-2007, 11:38 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I assume you mean torque specs.

They are in Techinfo. Link at the top of the page. You'll need to support the engine with a jack and block of wood on the oil pan, and remove the monster torque-axis engine mount to remove the water pump bolts.
willwren is offline   Reply With Quote
Old 06-30-2007, 09:28 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Lombard IL
Posts: 41
Thanks: 0
Thanked 0 Times in 0 Posts
e8r23i80c is on a distinguished road
Default

uh oh, so is this a job for someone who can diagnose cars pretty well but never seem to be able to put them back together??? how long does it take??? what other parts/gaskets etc. would I need to do the whole job??? Also I looked in the tech info for the torque specs but only saw for the supercharged engine....I can't imagine it would be the same for my SE right???
e8r23i80c is offline   Reply With Quote
Old 06-30-2007, 09:51 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The specs for every 92-99 are there. Please read again.

If you don't have a service manual of some type, and you've never done this before, don't do it.
willwren is offline   Reply With Quote
