Default Coolant fitting on intake broke!

Hay all, 95' SSEi...noticed a little drip under Bonnie today and found it to be coolant, so I proceeded to investigate and noticed coolant sitting on the intake under SC and transfer hose(from intake to water pump)? Stuck my finger under it to see if it was coming from the hose, and snap!! All I did was touch it. Now the OD threads remain inside the intake...flush, nothing hanging out. What is the best way to get this out, and can I w/o having to remove nosecone?!! Help...please! Tnx! Also I saw a posting for cooling bleed procedure...thought I saved it, but can't find it. Does anyone have the link?
Thanks!
flatlander745 is offline   Reply With Quote
Old 03-13-2008, 05:22 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

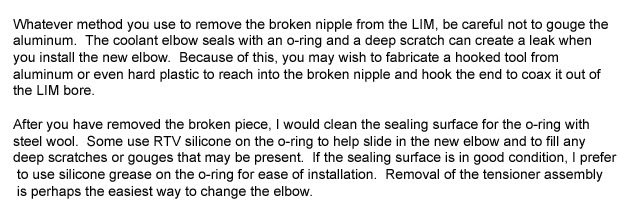

Removing the tensioner pulley will give you better access. I'd probably take an old screwdriver and bend the tip to make a hook to reach in the hole and pull it out/break it out.

Obviously pulling the SC and LIM would make the process of getting it out 100x easier
Name:  DSC00420.jpg
Views: 9
Size:  110.7 KB
harofreak00 is offline   Reply With Quote
Old 03-13-2008, 06:11 PM   #3
Member
Posts like a V-Tak
Thread Starter

flatlander745's Avatar

Join Date: Jan 2008
Location: Pennsylvania
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
flatlander745 is on a distinguished road
Default

Is this fitting plastic from the factory?
flatlander745 is offline   Reply With Quote
Old 03-13-2008, 06:27 PM   #4
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

Quote:
Originally Posted by flatlander745
Is this fitting plastic from the factory?
hehe, yes. makes you wonder , doesn't it.
sonoma_zr2 is offline   Reply With Quote
Old 03-13-2008, 07:51 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Yes, it'* plastic, but most replacements at most auto parts stores are steel.
willwren is offline   Reply With Quote
Old 03-14-2008, 09:26 AM   #6
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

bill buttermore is offline   Reply With Quote
Old 03-16-2008, 04:10 AM   #7
Member
Posts like a V-Tak
Thread Starter

flatlander745's Avatar

Join Date: Jan 2008
Location: Pennsylvania
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
flatlander745 is on a distinguished road
Default

Got it taken care of! Yes I did bugger up the threads on the intake in the process, hard to get in there with SC nosecone/pulley right there. I tried to thread the new (metal) GM fitting in with oil and it went in and out fine; used thred sealer and I assume the o-ring will handle the rest, no leaks!
Thanks guys!
