Default colent leak

we replaced the raditatior last summer and the cars hasent been above 200. but today when looking for vacum lines i noticed a leak that im concerined is the LIM gasket. and i dont want to let it get worse and ruin another engine. Heres a pic

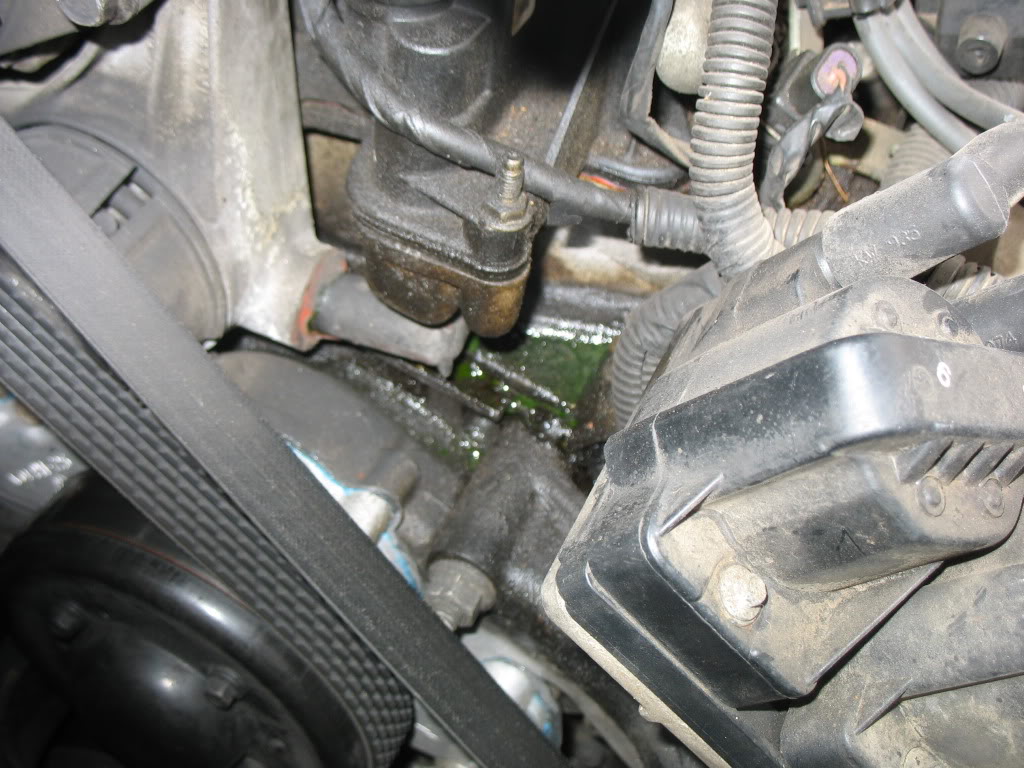

Name:  IMG_1655.jpg
Views: 0
Size:  151.3 KB

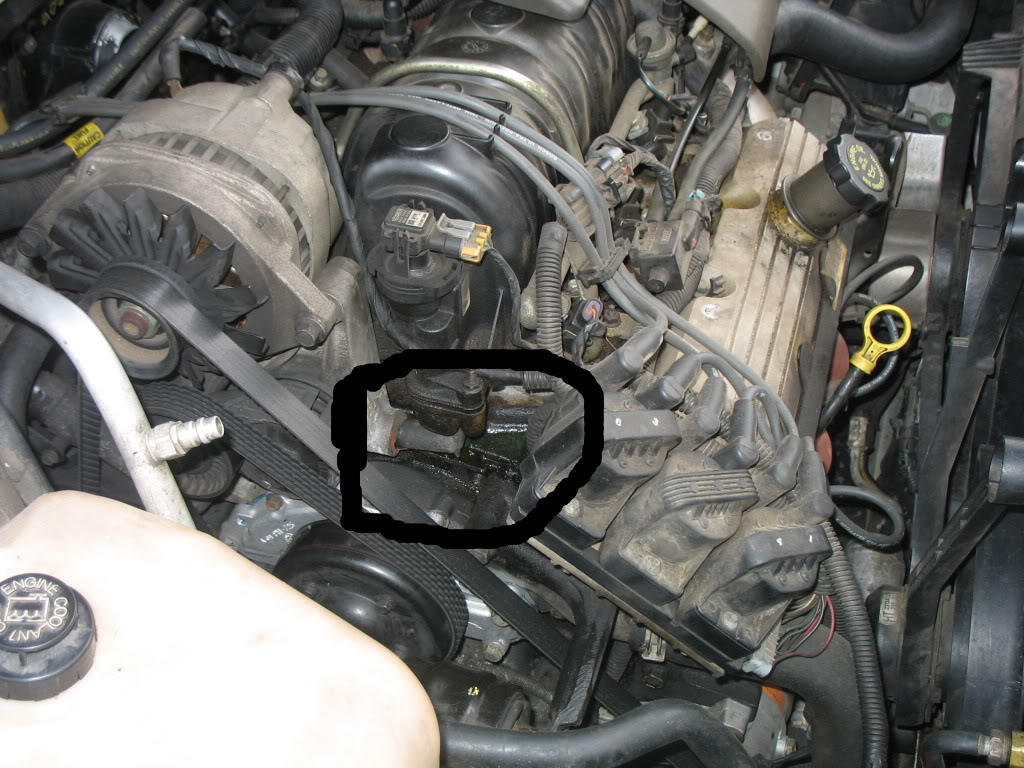

Name:  IMG_1656-1.jpg
Views: 2
Size:  164.9 KB
do you guys know what it is ?

thanks
-josh
oldsmobile99 is offline   Reply With Quote
Old 01-03-2010, 06:08 PM   #2
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

i'm shooting for the UIM gasket and possible LIM
sawgunner is offline   Reply With Quote
Old 01-03-2010, 06:18 PM   #3
Member
Posts like a V-Tak

Join Date: May 2009
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
enslow is on a distinguished road
Default

While I don't have much experience, it looks more like the coolant elbow to me which is easier to change. But from what I've heard about the LIM and UIM, if they haven't been done before it probably better to do the whole works.
enslow is offline   Reply With Quote
Old 01-03-2010, 06:23 PM   #4
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

have the UIM/LIM ever been done on it that you know of? if not get them done and replace both elbows when ya do
sawgunner is offline   Reply With Quote
Old 01-03-2010, 06:24 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That is the coolant elbow.
Danthurs is offline   Reply With Quote
Old 01-03-2010, 06:26 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

oldsmobile99's Avatar

Join Date: Jan 2010
Location: Murray, Ky
Posts: 349
Thanks: 0
Thanked 0 Times in 0 Posts
oldsmobile99 is on a distinguished road
Default

the LIM/UIM have not been done. there is no coolent in the oil. we gave it an oil change yesterday.
oldsmobile99 is offline   Reply With Quote
Old 01-03-2010, 06:27 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Easy fix, remove the tensioner and replace the elbows. It'* the O ring that'* leaking. Just make sure you clean up the surface inside the LIM and use a bit of lube on the O ring.
Danthurs is offline   Reply With Quote
Old 01-03-2010, 06:30 PM   #8
Senior Member
Posts like a Turbo
Thread Starter

oldsmobile99's Avatar

Join Date: Jan 2010
Location: Murray, Ky
Posts: 349
Thanks: 0
Thanked 0 Times in 0 Posts
oldsmobile99 is on a distinguished road
Default

thanks guys. i will replace the O rings on the coolent elbow tomarrow.

thanks
-josh
oldsmobile99 is offline   Reply With Quote
Old 01-03-2010, 06:31 PM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I seem to remember the elbows are bout $5 at autozone.
Danthurs is offline   Reply With Quote
Old 01-03-2010, 06:35 PM   #10
Senior Member
Posts like a Turbo
Thread Starter

oldsmobile99's Avatar

Join Date: Jan 2010
Location: Murray, Ky
Posts: 349
Thanks: 0
Thanked 0 Times in 0 Posts
oldsmobile99 is on a distinguished road
Default

cool i love it when things are cheap !
