Default car runnin problems with 92 bonneville SSE non supercharged

bought a white 1992 Pontiac Bonneville SSE 3.8 i believe with a vin code L non supercharged

guy i bought it from was buying a crown Victoria and didn't need the car no more
car has little over 122,000 miles he said it was a new transmission, he said it had recently tuned up, replaced cam shaft sensor, and passed inspection.

Currently I'm trying to get the car to stop cutting off at low idle and after im pushing throttle hitting over 45 mph me and my grandpa just replaced the ignition modular after i took the car to a shop to test for codes, they wanted to charge me 500$ right then and there "bull!!!" lol.

my grand pa thinks it could be one of the three fuel filter, fuel pump, the third is oil change i say three only because i am going to change the oil soon as possible after i get this problem solved

note the engine light is still on and thats the only code that came up!
khezai is offline   Reply With Quote
Old 04-12-2008, 12:46 AM   #2
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

Do you have this computer port below the steering column?
Name:  OBD1-1.gif
Views: 13
Size:  6.9 KB
If so, here is the code retrieval procedure (in Techinfo). Just requires a metal paper clip.
http://www.bonnevilleclub.com/forum/...e=article&k=57
This one is for code translations
http://www.bonnevilleclub.com/forum/...e=article&k=69
93RedSled-SSE is offline   Reply With Quote
Old 04-12-2008, 03:15 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2008
Location: Austin, Texas
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
khezai is on a distinguished road
Default

Quote:
Originally Posted by 93RedSled-SSE
Do you have this computer port below the steering column?

If so, here is the code retrieval procedure (in Techinfo). Just requires a metal paper clip.
http://www.bonnevilleclub.com/forum/...e=article&k=57
This one is for code translations
http://www.bonnevilleclub.com/forum/...e=article&k=69
Noob Question
ill get down there and look in the morning where will the code show up at? Will it show up n the dash?
khezai is offline   Reply With Quote
Old 04-12-2008, 03:25 AM   #4
Senior Member
True Car Nut

Join Date: Aug 2004
Location: The South
Posts: 3,281
Thanks: 0
Thanked 0 Times in 0 Posts
Lowrider0308 is on a distinguished road
Default

It will be the check engine light that is on the left side of the dash board in the panel with the warning messages.
Lowrider0308 is offline   Reply With Quote
Old 04-12-2008, 03:36 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2008
Location: Austin, Texas
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
khezai is on a distinguished road
Default

Quote:
Originally Posted by Lowrider0308
It will be the check engine light that is on the left side of the dash board in the panel with the warning messages.
ok so in the morning since the check engine light is on right now do i need to disconnect the battery and do plug it back in and then do the check to get a fresh start
khezai is offline   Reply With Quote
Old 04-12-2008, 03:57 AM   #6
Senior Member
True Car Nut

Join Date: Aug 2004
Location: The South
Posts: 3,281
Thanks: 0
Thanked 0 Times in 0 Posts
Lowrider0308 is on a distinguished road
Default

Quote:
Originally Posted by khezai
Quote:
Originally Posted by Lowrider0308
It will be the check engine light that is on the left side of the dash board in the panel with the warning messages.
ok so in the morning since the check engine light is on right now do i need to disconnect the battery and do plug it back in and then do the check to get a fresh start
no, when you ground it via the paper clip it will flash and you need to count the flashes to get the code.
Lowrider0308 is offline   Reply With Quote
Old 04-12-2008, 11:01 AM   #7
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

Right, do NOT disconnect the battery. That would be bad, because it will erase the codes you have stored.

Basically you are going to short A & B together with the bent paper clip.
Then, turn the key on, but don't start.
If you watch the check engine light, it will start flashing.
First it will do "1" flash, followed by "2" flashes, which is a "12" and says the diag. is working.
After flashing "12" 3 times or so, Start watching and counting.
The first digit will flash (count) then the 2nd digit.
It will do this 3 times before going to the next code.
When it has displayed all the codes this way, it repeats, coming of with the "12" again.
You can shut it down and remove the clip now.

NOTE: It will display any codes stored since they were last cleared. So you may see some old ones too. Write them all down, etc. That way, you can later disconnect the battery to clear them and start over, with your test drives, or whatever, and see what codes are gone and which ones are showing up now.
Hope that makes sense. Force be with you.
93RedSled-SSE is offline   Reply With Quote
Old 04-12-2008, 01:12 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2008
Location: Austin, Texas
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
khezai is on a distinguished road
Default

ok im back tested it it seems thats its a code 41 cam sensor circuit so how do i get that changed the cam sensor
khezai is offline   Reply With Quote
Old 04-13-2008, 08:38 PM   #9
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

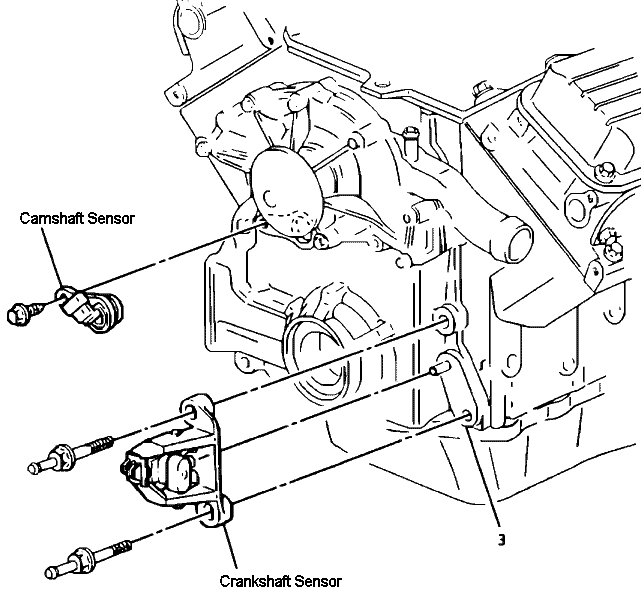

It is located slightly behind the waterpump pulley.
Need a 10mm socket and extension.
I had my passenger side wheel off and the plastic fender liner off and was real easy from that angle. Or you can do it from above by "touch" after eyeballing it with a mirror.
Name:  Cam-CrankSnsrs.gif
Views: 14
Size:  24.4 KB
93RedSled-SSE is offline   Reply With Quote
Old 04-14-2008, 03:35 PM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2008
Location: Austin, Texas
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
khezai is on a distinguished road
Default

Quote:
Originally Posted by 93RedSled-SSE
It is located slightly behind the waterpump pulley.
Need a 10mm socket and extension.
I had my passenger side wheel off and the plastic fender liner off and was real easy from that angle. Or you can do it from above by "touch" after eyeballing it with a mirror.

Looks a Little Challenging but hey ill do anything to fix it
khezai is offline   Reply With Quote
