Default Camshaft sensor access / code question

Hello, I was just wondering if someone can tell me how accessible the cam shaft sensor is on a 1992 Bonneville SE (not supercharged).

I've got a check engine light on, I had the codes read out at Advance and they came up with

Current and historical
Code 41 - Camshaft Sensor - Loss of Signal

and

History - Code 31 PRNDL Switch Circuit Problem.

The water pump was recently replaced, I understand this sensor is somewhere in this area.

Anyway, any pointers .. or is this something I should care about, the engine has been starting and running OK (considering it'* age).

211,000 miles so far

Thanks

Satsuke
satsuke is offline
Old 04-05-2006, 02:08 PM   #2
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Grand Rapids,MI
Posts: 981
Thanks: 0
Thanked 0 Times in 0 Posts
Masterbm is on a distinguished road
Default

from what under yes and that sensor is kind of problem when they get some miles on them
Masterbm is offline
Old 04-05-2006, 02:15 PM   #3
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

It could be that your sensor is fine. There could be a wiring problem, or the magnet in the timing gear could have broken loose. If the magnet is gone (you can determine that by using a large wrench to turn the crank until the magnet or the hole for the magnet appears in the hole left when you remove the sensor) you can stick one back in place with JB Weld.

http://www.bonnevilleclub.com/forum/...&highlight=cam
J Wikoff is offline
Old 04-05-2006, 02:19 PM   #4
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Yes your sensor is a PITA to get to, but you need to address it as it will likely only get worse. At first, I would just check to make sure the connector wasn't jostled loose and that the wires are not damaged.

IIRC, the PCM will use default mode to run if the cam sensor or magnet isn't working right. This will cause decreased mileage, possibly power loss, and make your injector pulses be off timing a little. Read the link below and all it'* links too. It will help you, I'm sure.

Code 41 - Cam Sensor Circuit
lash is offline
Old 04-05-2006, 02:37 PM   #5
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

This sensor is NOT hard to change. I had to do it on a 94 Olds 88.

1. Remove passenger wheel
2. Remove passenger wheel well rubber shield
3. On the engine, at about 11:00 of the crankshaft pulley is a round sensor with a plug going into it. It'* held in with one screw.
4. Unscrew it.

That'* your Camshaft Position Sensor. It will have a large magnet on the backside. If I remember correctly, I paid $22 for a brand new Wells sensor in August.
vital49 is offline
Old 04-05-2006, 02:42 PM   #6
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Thanks, Mark, for simplifying it for those of us that have not ever really done it.
lash is offline
Old 04-05-2006, 04:26 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Sorry I'm late on this one.

Water pump was recently done eh? (sounds familiar to me)
With motor off...reach in under the left of the water pump pulley and feel around with your fingertips for the sensor and wiring to the cam.

Feels like loose wiring doesn't it?

Take your time and get it plugged back in.... you'll be fixed right up. I have no idea how it happened to me...but it did. Hoping yours is the same.
BillBoost37 is offline
Old 04-08-2006, 09:00 PM   #8
Senior Member
Posts like a Supercharger

Join Date: Apr 2004
Location: Endwell, NY
Posts: 190
Thanks: 0
Thanked 0 Times in 0 Posts
sellncars is on a distinguished road
Default

The cam sensor isnt that hard to get to. I have the same car and got to mine from the top. I had the same code, changed the cam sensor, light came back on, changed the crank sensor, light again, finally changed the ICM and that did the trick. The sensors are on the same circuit. I was thrilled, because my next step was the timing chain, gears and a new magnet.

Good luck,
Sellncars
sellncars is offline
Old 04-10-2006, 12:23 AM   #9
Member
Posts like a V-Tak

Join Date: Dec 2005
Location: raleigh nc
Posts: 41
Thanks: 0
Thanked 0 Times in 0 Posts
pdqSSEi is on a distinguished road
Default cam sensor

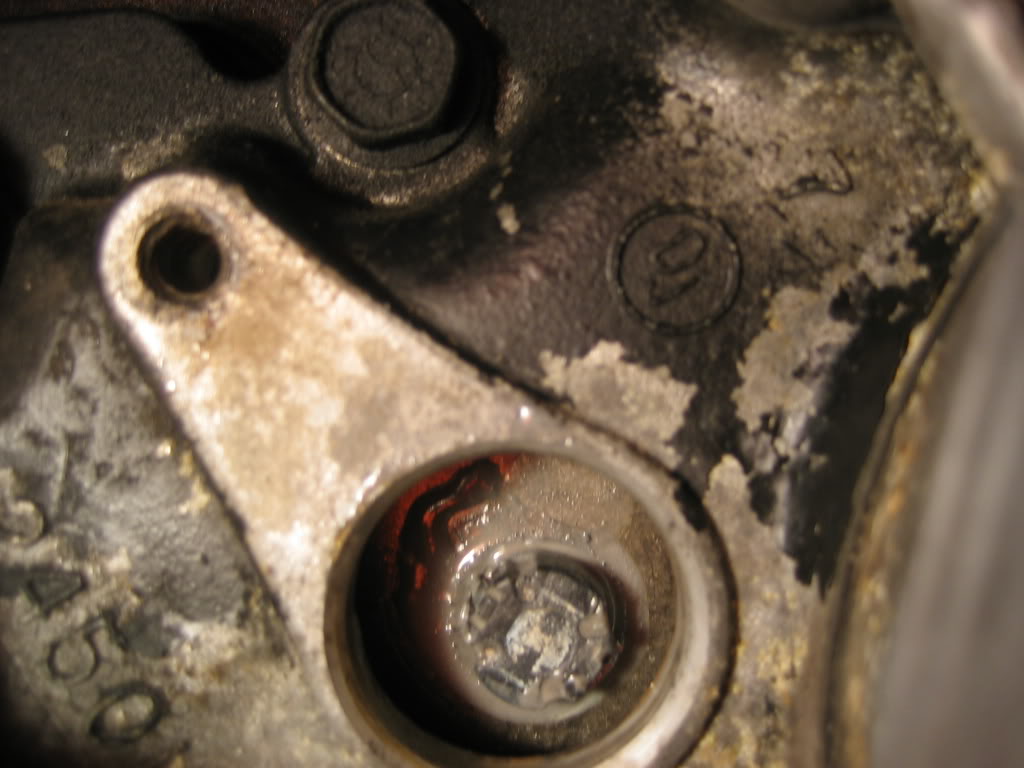

just replaced mine a week ago jb weld and a drimil tool didn't take long, been working great every since

Name:  car007.jpg
Views: 30
Size:  82.9 KB
pdqSSEi is offline
Old 04-10-2006, 12:42 AM   #10
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

What did you do with the dremel?
J Wikoff is offline
