Default Cam Sensor location

Getting the Cam sensor code even with new PCM.....have new sensor. Where the heck is it? Do i have to take the alternator off to get to it?

Thanks!
MileHighSSEi is offline   Reply With Quote
Old 03-15-2008, 03:01 PM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Year?

Year helps.
Bonneville92V688 is offline   Reply With Quote
Old 03-15-2008, 03:04 PM   #3
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

year and engine will help in most topics, if you add it to your sig, it will help us, help you.

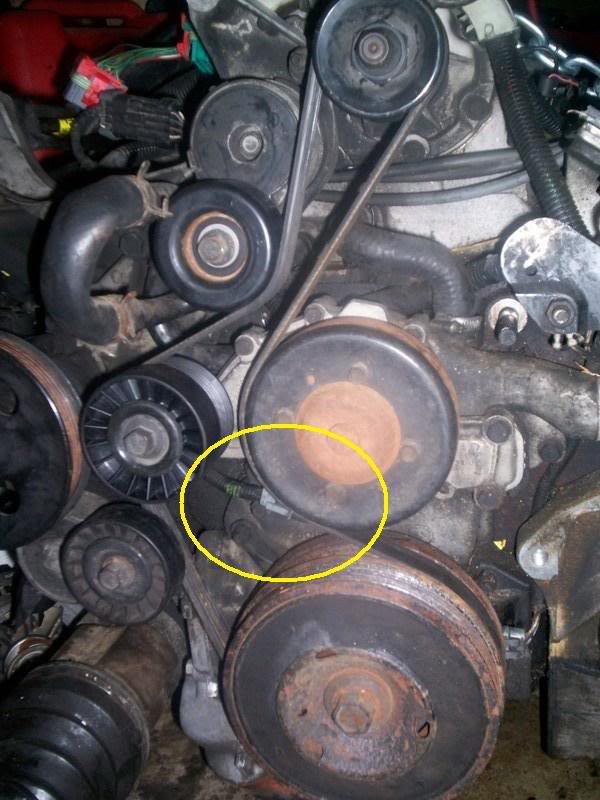

but the cam sensor will be just behind the water pump.
this is ser 1 pic, so if you have s2, it may differ slightly, but sensor will be in same location
Name:  camsensor.jpg
Views: 115
Size:  75.5 KB
samueljackson is offline   Reply With Quote
Old 03-15-2008, 03:04 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Above your water pump in the timing chain cover. Kinda in between the PS pump and water pump, but a little above them.

Please put your year and trim level in your signature by editing your profile.
willwren is offline   Reply With Quote
Old 03-15-2008, 03:10 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
MileHighSSEi is on a distinguished road
Default

Sorry will do.

1994 SSEi.....will fix my sig. Thanks for the picture...totally helps out big time!
MileHighSSEi is offline   Reply With Quote
Old 03-15-2008, 03:12 PM   #6
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

it will be a good idea to check in the hole where the sensor goes, to see if the magnet is still on the cam sprocket. you will need a little inspection mirror, and a 24mm socket to turn the crank.
samueljackson is offline   Reply With Quote
Old 03-15-2008, 03:19 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
MileHighSSEi is on a distinguished road
Default

Yea i was reading about the magnet breaking. I sure hope not:(

Is this fairly easy to do without getting it up in the air?
Or do I have to get to the sensor from the bottom rathar than the top?
MileHighSSEi is offline   Reply With Quote
Old 03-15-2008, 03:26 PM   #8
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by MileHighSSEi
Yea i was reading about the magnet breaking. I sure hope not:(

Is this fairly easy to do without getting it up in the air?
Or do I have to get to the sensor from the bottom rathar than the top?
you can get the sensor from the top. no lift necessary, just open the hood.

iirc, you will need a 10mm socket to remove the one bolt.
samueljackson is offline   Reply With Quote
Old 03-15-2008, 03:39 PM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
MileHighSSEi is on a distinguished road
Default

Wow..easy enough. My DSM is a whole other ballgame to work on....total bitch to get to stuff from the top sometimes and you have to jack it up and go from underneath.

Thanks a ton!
MileHighSSEi is offline   Reply With Quote
Old 03-15-2008, 07:01 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Check for the magnet if you like, but that'* an LN3 problem, not a Series 1 problem.
