Default A/C Problem

Hey my A/C on my 96 SSE is acting really funny. It blows air but it blows out hot air when the temp is turned to cool. I got a diagnostic and they told me i needed a new control unit so I bought one ( for $400) and it still does the same thing. I ve tried everything a new unit its full of freon does anyone know whats going on?
creflo is offline
Old 08-14-2005, 04:31 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Air mix control door or whatever actuates it...
J Wikoff is offline
Old 08-14-2005, 04:47 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Ditto.
willwren is offline
Old 08-14-2005, 05:51 PM   #4
Senior Member
Posts like a Supercharger

Join Date: Apr 2004
Location: Endwell, NY
Posts: 190
Thanks: 0
Thanked 0 Times in 0 Posts
sellncars is on a distinguished road
Default

I dont think your going to be real happy about this but, the air blend door actuator is probably frozen in the heat position. Take out your glove box insert, behind that you will see a silver rod hooked to a black piece of plastic at one end, the other end will be hooked to a clip. Take the silver rod out of it'* clip ( Blend air door ) and turn the clip towards the driver side, it should get cold. This actuator is roughly $65.00 at your dealer. I paid $5.00 at the junk yard.

Good luck,
Sellncars
sellncars is offline
Old 08-14-2005, 09:17 PM   #5
Senior Member
Posts like a Turbo

Join Date: Jan 2005
Location: Pawtucket, RI
Posts: 333
Thanks: 0
Thanked 0 Times in 0 Posts
LuxuriesPremier is on a distinguished road
Default

My actuator is frozen form time to time then magically fixes its self but always defaults itself to hott and stays there no matter what temperature i put. it is such a pain in the ***.....
LuxuriesPremier is offline
Old 08-17-2005, 12:09 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2004
Location: Atlanta
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
creflo is on a distinguished road
Default

I tried to get to it through the glove box insert but it seems to be covered by something else i cant off. Do i need to dismantle the whole dashboard to get to it also is there any step by step guides online i could use to help.
creflo is offline
Old 08-17-2005, 08:39 PM   #7
Senior Member
Posts like a Supercharger

Join Date: Apr 2004
Location: Endwell, NY
Posts: 190
Thanks: 0
Thanked 0 Times in 0 Posts
sellncars is on a distinguished road
Default

I actually had taken 2 off of different year Bonnevilles. The newer car had a metal cover of some sort over all the componants. I did have to take the dash pad off. I dont know of a step by step process. Just get your sockets and start taking out the bolts.

Good luck,
Sellncars

Quote:
Originally Posted by creflo
I tried to get to it through the glove box insert but it seems to be covered by something else i cant off. Do i need to dismantle the whole dashboard to get to it also is there any step by step guides online i could use to help.
sellncars is offline
Old 08-17-2005, 09:33 PM   #8
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

You almost need to know what you;re looking for in order to see it. the following pics might be helpfull:

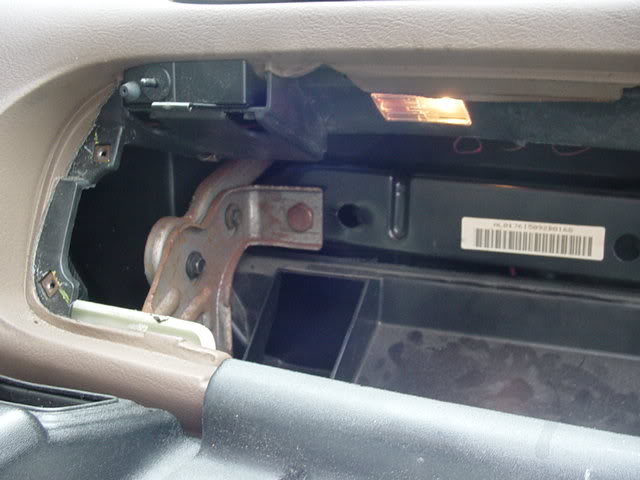

Name:  DSC01660.jpg
Views: 3
Size:  39.7 KB

With the glove box insert removed, the air mix door arm and actuator connection can be seen through the left hole in the black painted steel section.



here'* what you're looking for. You can see the actuator rod (threaded section) air mix door arm (yellowish thingamabob) and the connector (vertical white hickydo)

If the actuator is faulty, the rod and arm can be moved manually with a long screwdriver or similar tool but be carefull... if it is not the problem then you can actually damage it by manually moving.

Does your temp display still blink???
randman1 is offline
Old 08-19-2005, 01:12 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2004
Location: Atlanta
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
creflo is on a distinguished road
Default

Yeah the temp blinks and works fine thanks for the pics and help ill let u all know how it turns out
creflo is offline
Old 08-21-2005, 04:38 PM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2004
Location: Atlanta
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
creflo is on a distinguished road
Default

I got it! Its finally blowing cold air again. I cant believe they were quoting me over $500 to fix this. Thanks to everyone for thier help those pics really helped
