Burned hole in side of piston - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 02-26-2008, 09:51 PM   #1
Junior Member
Thread Starter

Join Date: Apr 2006
Location: Arlington TX
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Ghostrdr is on a distinguished road
Default Burned hole in side of piston

I sold my '95 Bonne to a friend of mine and he said while his son was driving it, there was a noise from the engine and then it started missing. He pulled all the plugs and on the #3 cyl. the electrode was completly gone. When we tore into it, we found there was a burned area near the side of the cyl. and a hole burned through the piston.

Anyone ever saw this?
Ghostrdr is offline   Reply With Quote
Old 02-26-2008, 09:56 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

My old Buick Somerset did it twice. I decided it did it for reasons not likely on a Bonneville (valve that pulled air off the exhaust manifolds when it was cold never closed after it warmed up so the engine pulled in super hot air).

But a Bonneville didn't have that... so I don't know what would cause it besides maybe a really lean condition and WOT.
J Wikoff is offline   Reply With Quote
Old 02-26-2008, 11:01 PM   #3
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Did he run regular fuel in it? Need premium for a boosted car.
PontiacDad is offline   Reply With Quote
Old 02-26-2008, 11:23 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Non-premium and a bad fuel injector (or bad valve) could easily do that.

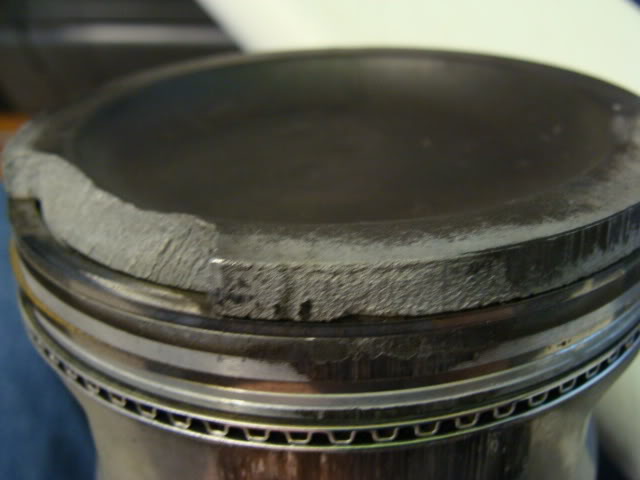

A little more extreme application, but this was 87 octane in a premium only motor:

Name:  DSC00974.jpg
Views: 1
Size:  42.0 KB

So what fuel was it?
willwren is offline   Reply With Quote
Old 03-05-2008, 09:44 PM   #5
Junior Member
Thread Starter

Join Date: Apr 2006
Location: Arlington TX
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Ghostrdr is on a distinguished road
Default Burned hole in piston

Well after doing some head scratching, I think I know what may have caused this. When my buddy, who I sold the car to started working on it,he bought a new set of spark plugs, and he told me when he pulled the ones out for the comp.check, he noticed they were shorter, I.E. the wrong plugs. When he pulled the head off he noticed the (wrong) plugs barely extended past the end of the threads. So We're thinking this caused a hot spot in the cylinder due to the plugs firing too hot, or irratic firing or both? I imagine he was using regular gas, that'* what I used in it when I had it, but I don't think that what caused this, although it could have been a combination of things.

Doe'* anyone know where I can get a set of stock size rings for the one piston we'll be replacing?
Ghostrdr is offline   Reply With Quote
Old 03-05-2008, 09:50 PM   #6
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default Re: Burned hole in piston

Quote:
Originally Posted by Ghostrdr
I imagine he was using regular gas, that'* what I used in it when I had it, but I don't think that what caused this, although it could have been a combination of things.
That'* what did it.

Supercharged engine + 87/89 octane + WOT = Boom.

Simple equation.
Bonneville92V688 is offline   Reply With Quote
Old 03-06-2008, 01:01 AM   #7
Member
Posts like a V-Tak

Join Date: Aug 2007
Location: North Texas
Posts: 41
Thanks: 0
Thanked 0 Times in 0 Posts
BlownBonny95 is on a distinguished road
Default

AUTOZONE PT# 2M4764 HASTINGS
BlownBonny95 is offline   Reply With Quote
Old 03-06-2008, 11:01 AM   #8
Senior Member
Posts like a Northstar

Join Date: Jan 2002
Location: southern California
Posts: 538
Thanks: 0
Thanked 0 Times in 0 Posts
billha is on a distinguished road
Default Re: Burned hole in piston

Quote:
Originally Posted by Bonneville92V688
That'* what did it.
Supercharged engine + 87/89 octane + WOT = Boom.
Simple equation.
I don't mean to sidetrack this topic, but the owner'* manual for my '93 SSEi says:
"If the octane is less than 91, you may get a heavy knocking noise when you drive. (In an emergency, you may be able to use lower octane--as low as 87--if heavy knocking does not occur)."

FWIW, I personally know people who use regular or mid-grade fuel in their supercharged cars because of today'* high cost of gas, and nobody has noticed any problems.

Are you saying that "Boom" will occur?
billha is offline   Reply With Quote
Old 03-06-2008, 11:22 AM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

In time, yes. Every knock your engine produces is slowly damaging your pistons. If you have KR, it means the engine already sensed the knock, and retarded the timing to protect itself. But the knock has already happened.

It'* a reaction more than a protection.
willwren is offline   Reply With Quote
Old 03-06-2008, 04:58 PM   #10
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default Re: Burned hole in piston

Quote:
Originally Posted by billha
Quote:
Originally Posted by Bonneville92V688
That'* what did it.
Supercharged engine + 87/89 octane + WOT = Boom.
Simple equation.
I don't mean to sidetrack this topic, but the owner'* manual for my '93 SSEi says:
"If the octane is less than 91, you may get a heavy knocking noise when you drive. (In an emergency, you may be able to use lower octane--as low as 87--if heavy knocking does not occur)."

FWIW, I personally know people who use regular or mid-grade fuel in their supercharged cars because of today'* high cost of gas, and nobody has noticed any problems.

Are you saying that "Boom" will occur?
well lets look at it this way..... The Savings you get from 91-93 to 87 Octane is not worth the $$$$ it would cost to repair this.. Its one thing to run 87 in an engine that 8.5to9.5 to 1 compression but a totally different thing to do this with a Boosted engine that may see as much as 12:1
Name:  DSC00974.jpg
Views: 1
Size:  42.0 KB

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
