Default broken clips {updated!}...

So i was in the process of removing the TB today and I kinda broke a couple of clips....
one held the electrical connector to the MAF Sensor....the other led to something else on the TB...not really sure.

So what can I do? I imagine i'm gonna needs these clips. Are they available at any part stores? is there a possible work-around for the time being?

thanks

EDIT: I also can't find the last nut/bolt....{i got the one towards the front of the car...and the one that'* near the top of the engine}...i'm also kinda "stumped" on this step {i'm having trouble finding the rear head}

4. Look carefully at the throttle bracket. You'll find that it'* attached to the throttle body AND the rear head. The heatshield for the crossover pipe should be removed first in this situation. Remove the nut on the head stud, remove the bolt on the back end of the heatshield, then remove the heatshield entirely, and the stud as well to release the back portion of the heatshield (L27'* are a mess, you'll need a universal for this procedure for the farthest forward attaching point).

So do i have to do that step to get it off, or can i skip it?
xX1SSEI1Xx is offline   Reply With Quote
Old 05-06-2006, 09:13 PM   #2
Senior Member
Posts like a Turbo

Join Date: May 2003
Location: B'ham.AL
Posts: 435
Thanks: 0
Thanked 0 Times in 0 Posts
ron350 is on a distinguished road
Default

AC Delco shows part # PT1604 for the MAF connector.
http://198.208.187.182/internet/Vehi...e=19&part=5128
ron350 is offline   Reply With Quote
Old 05-07-2006, 12:02 AM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2005
Location: South Jersey
Posts: 498
Thanks: 0
Thanked 0 Times in 0 Posts
xX1SSEI1Xx is on a distinguished road
Default

thanks. I'll have to see if i can pick them up from a local parts store...i can't really afford to wait for the part to be shipped unless the car can run w/o the clip to secure the connectors to the sensors?

Anyway, i also found the header and the other bolt that i need to get the TB Bracket off all with the heat shield. Those will be coming off tomorrow along with the TB itself. I think i'll take some pics too since I saw a thread before of someone looking for some. It would be good to have for future reference.
xX1SSEI1Xx is offline   Reply With Quote
Old 05-07-2006, 01:02 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

If you broke the tab on an electrical connector, forget it. I have two broken tabs on my 93, and I've never had a sensor problem.
willwren is offline   Reply With Quote
Old 05-07-2006, 01:46 AM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2005
Location: South Jersey
Posts: 498
Thanks: 0
Thanked 0 Times in 0 Posts
xX1SSEI1Xx is on a distinguished road
Default

Quote:
Originally Posted by willwren
If you broke the tab on an electrical connector, forget it. I have two broken tabs on my 93, and I've never had a sensor problem.
good news because i broke 2 today lol. I just might put some electrical tape around them though when i go to put everything back together... thanks!
xX1SSEI1Xx is offline   Reply With Quote
Old 05-07-2006, 10:07 AM   #6
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

My MAF, TPS, and IAC clips were broken on my Ciera. Never had a problem.
Bonneville92V688 is offline   Reply With Quote
Old 05-07-2006, 03:01 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2005
Location: South Jersey
Posts: 498
Thanks: 0
Thanked 0 Times in 0 Posts
xX1SSEI1Xx is on a distinguished road
Default

another quick question...is there any special oil/grease that i need to use when replacing the TB Gasket? I noticed that there was some left on the old one...if so, what should i use?

i'll be posting pics of everything later too. Thanks!
xX1SSEI1Xx is offline   Reply With Quote
Old 05-07-2006, 03:07 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Your TB gasket should be black plastic with silicone inserts (either orange or blue depending on manufacturer).

Clean the SC and TB mating surfaces and wipe clean and dry. Use no lube or sealant. Use a NEW gasket only. Do not re-use an old one if it'* over a year old.
willwren is offline   Reply With Quote
Old 05-07-2006, 03:34 PM   #9
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2005
Location: South Jersey
Posts: 498
Thanks: 0
Thanked 0 Times in 0 Posts
xX1SSEI1Xx is on a distinguished road
Default

yup, my old gasket inserts were blue....the new one has orange inserts.

I just got done cleaning everything...just allowing some time for stuff to dry now...
Here'* some of the pics i have so far...

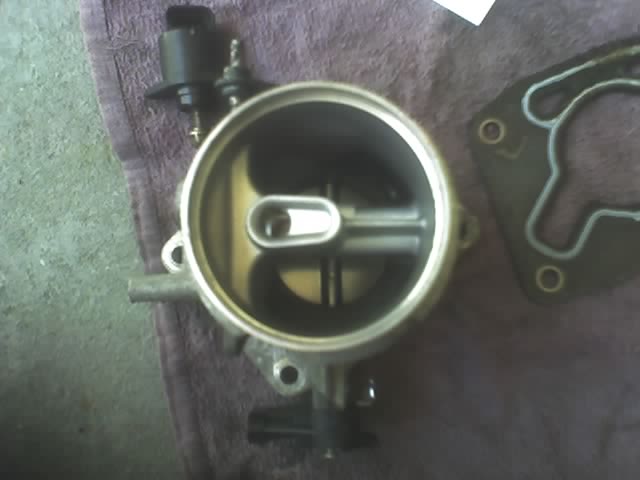

outside of TB
Name:  othersideofdirtyTB.jpg
Views: 2
Size:  28.7 KB

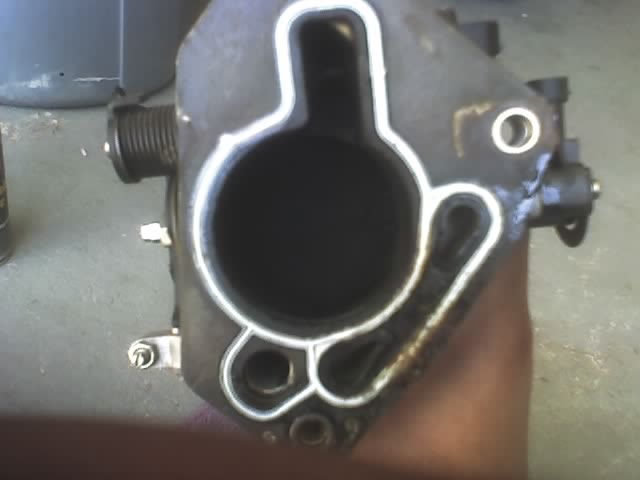

inside of the dirty TB w/ old gasket
Name:  dirtyTBwithGasket.jpg
Views: 2
Size:  24.0 KB

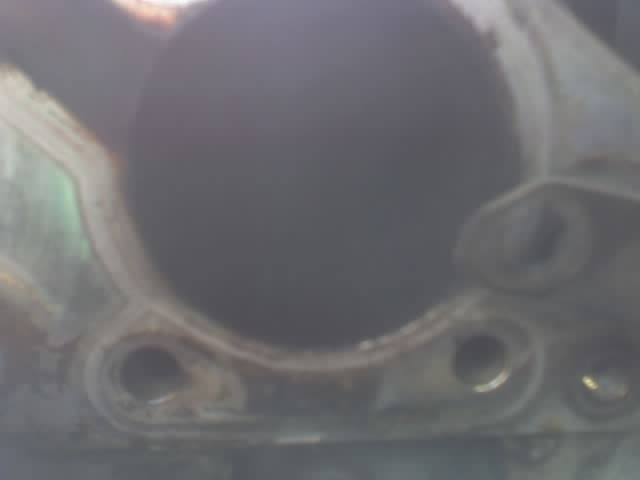

inside of my intake
Name:  Intake.jpg
Views: 3
Size:  11.9 KB

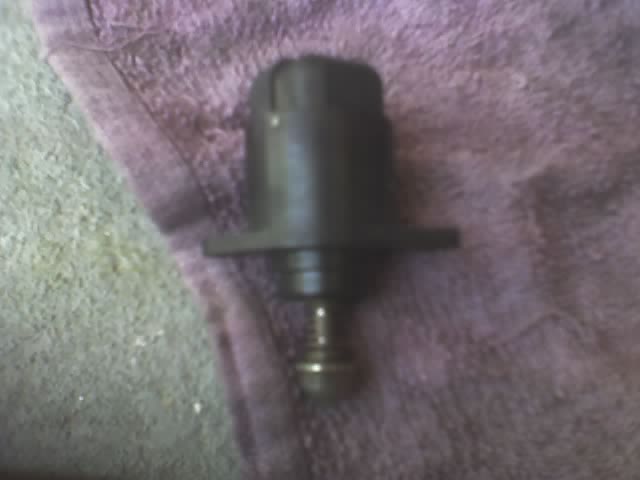

the IAC?
Name:  dirtyIAC.jpg
Views: 1
Size:  23.5 KB

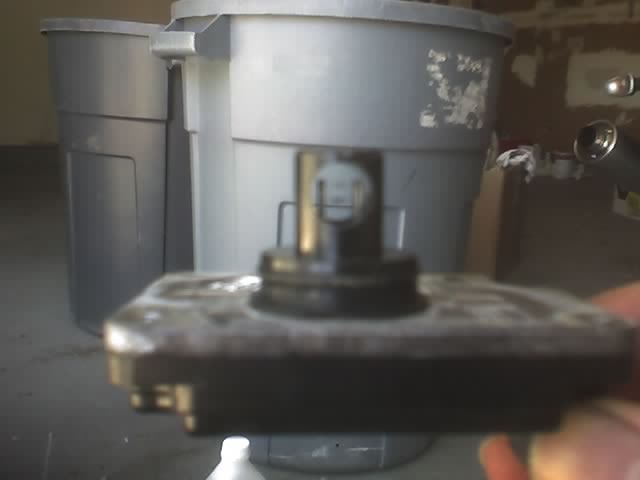

the MAF sensor...
Name:  MAFSensor.jpg
Views: 3
Size:  19.2 KB

more to come soon!
xX1SSEI1Xx is offline   Reply With Quote
Old 05-07-2006, 03:37 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That is the IAC. Soak it in some light oil for awhile.
