Bonnieville died! Please help!

Thread Tools

Search this Thread

Old Nov 8, 2008 | 01:56 PM
  #11
Danthurs's Avatar
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hard to see anything on there, the ground probe blocks everything.
Old Nov 8, 2008 | 02:18 PM
  #12
97BONNIESE's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Jun 2007
Posts: 122
Likes: 2
From: JACKSON, OH
97BONNIESE is on a distinguished road
Default

More photos:

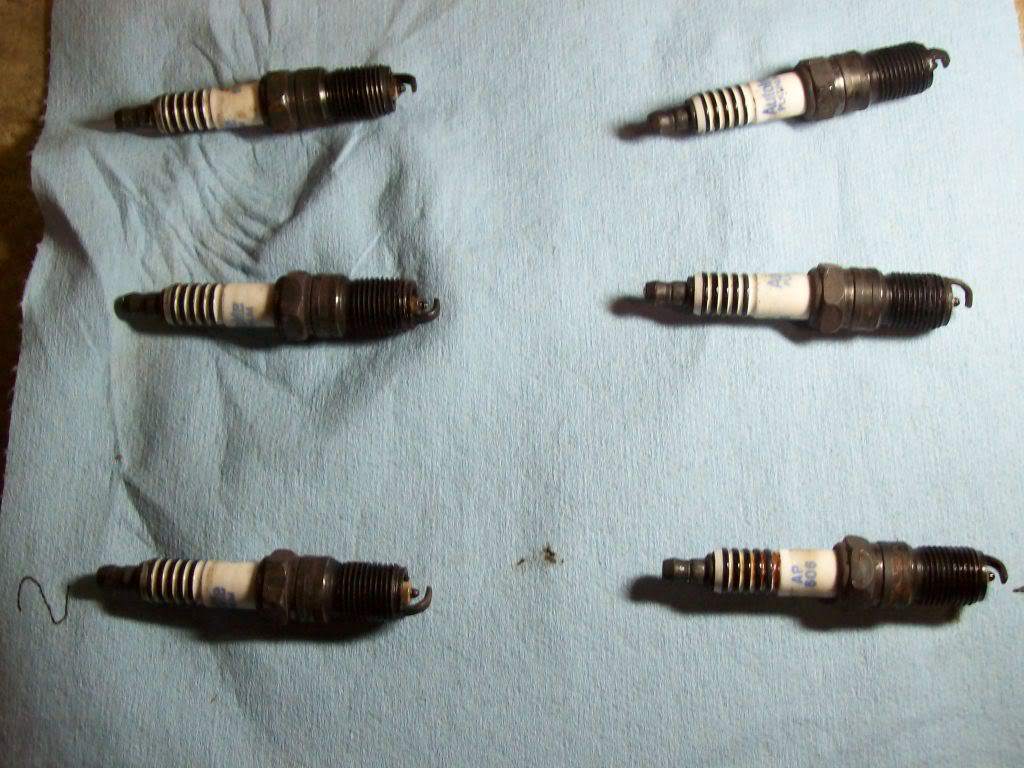

Name:  100_0324.jpg
Views: 124
Size:  124.9 KB

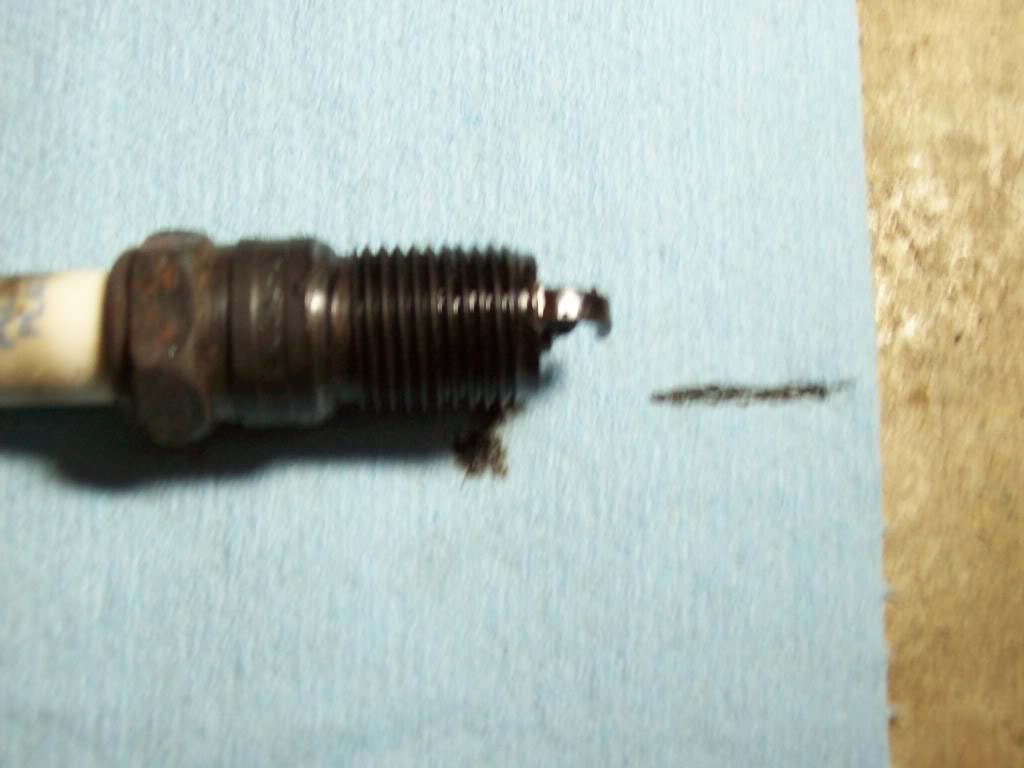

Name:  100_0325.jpg
Views: 114
Size:  69.0 KB

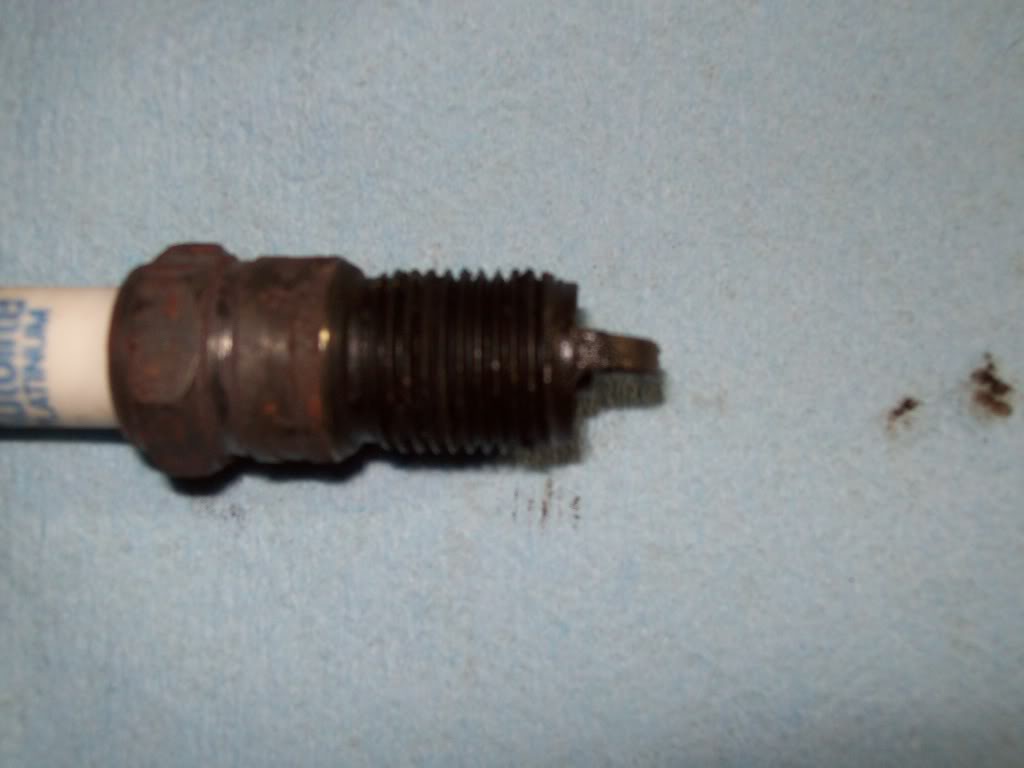

Name:  100_0329.jpg
Views: 107
Size:  58.5 KB

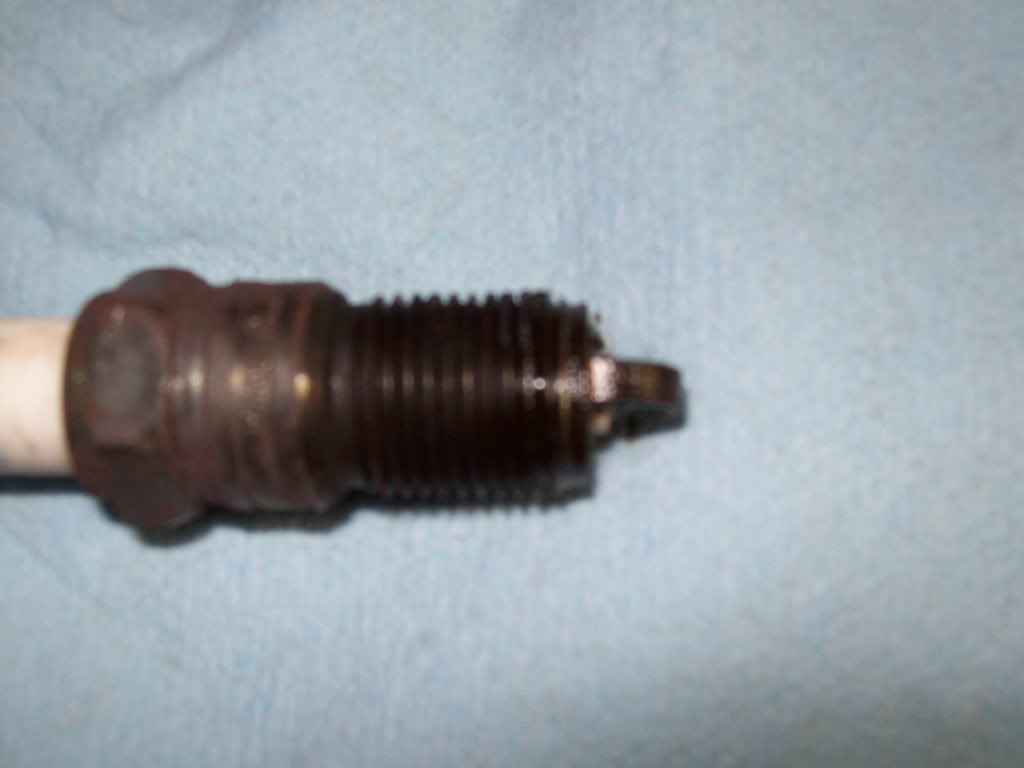

Name:  100_0331.jpg
Views: 140
Size:  49.6 KB

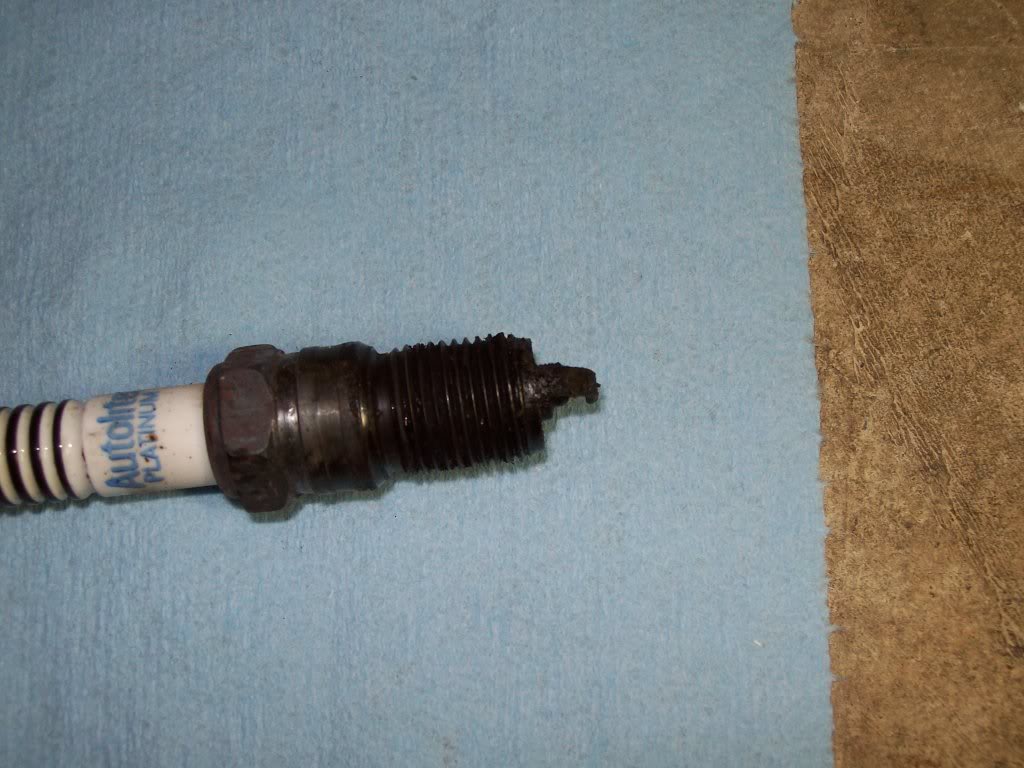

Name:  100_0332.jpg
Views: 135
Size:  116.4 KB

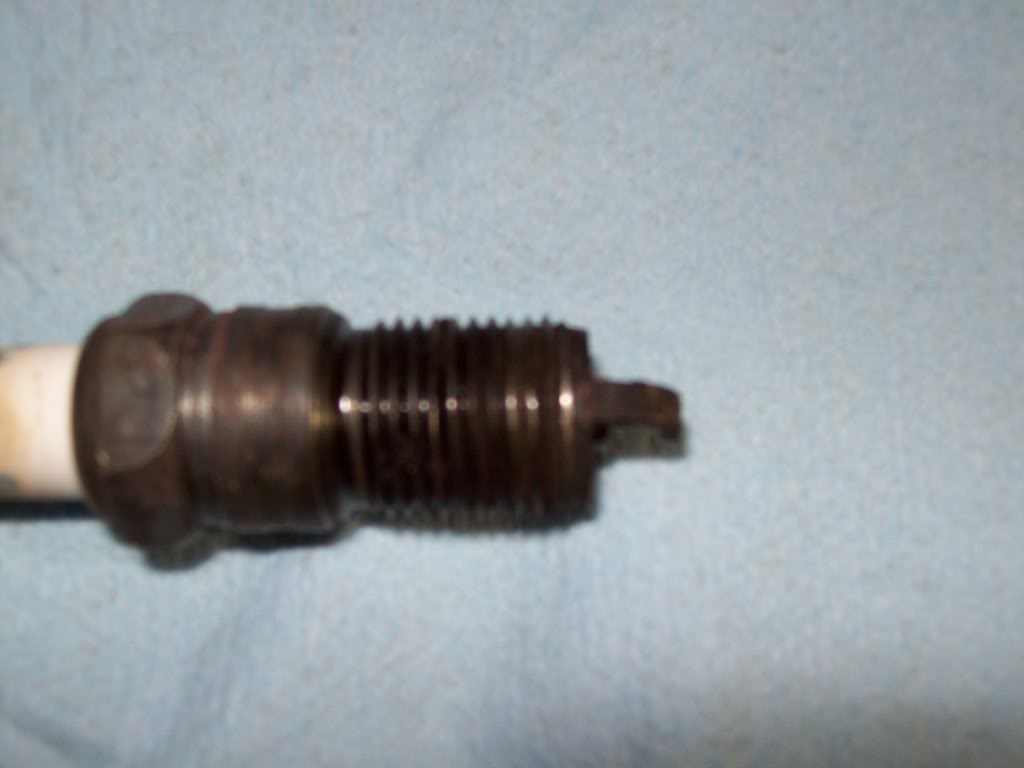

Name:  100_0333.jpg
Views: 96
Size:  51.2 KB
Old Nov 8, 2008 | 02:22 PM
  #13
97BONNIESE's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Jun 2007
Posts: 122
Likes: 2
From: JACKSON, OH
97BONNIESE is on a distinguished road
Default

Originally Posted by Danthurs
That is possible, but I would suspect the head gasket. I wouldn't expect only one cylinder to fill up with a LIM/UIM gasket failure.
#1 plug was also wet but I didn't see anything come out of the cylinder.
Old Nov 8, 2008 | 02:22 PM
  #14
Danthurs's Avatar
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That 2nd last plug looks nasty. Is that the one from #4? I really think you have a bad head gasket. Need Billboost to have a look and give his opinion. If it is then this will be a good time to replace the LIM gaskets at the same time. Do you have a shop and tools to do this yourself?
Old Nov 8, 2008 | 02:26 PM
  #15
97BONNIESE's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Jun 2007
Posts: 122
Likes: 2
From: JACKSON, OH
97BONNIESE is on a distinguished road
Default

since the intakes have to come off anyway, I'm going to get started. I will check back to see if anyone'* posted or hopefully, give an update. Thanks for your help.
Old Nov 8, 2008 | 02:29 PM
  #16
Danthurs's Avatar
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Do you have access to a compression tester? That will tell you for sure if it'* the head gasket. #4 will not have much pressure.

Take pictures of your gaskets.
Old Nov 8, 2008 | 06:39 PM
  #17
97BONNIESE's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Jun 2007
Posts: 122
Likes: 2
From: JACKSON, OH
97BONNIESE is on a distinguished road
Default

Danthurs---that'* plug 5. I'm going to upload a couple of picks in a minute.
Old Nov 8, 2008 | 07:11 PM
  #18
97BONNIESE's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Jun 2007
Posts: 122
Likes: 2
From: JACKSON, OH
97BONNIESE is on a distinguished road
Default

Have coolant everywhere. There is gasket material on drivers side end but i can't tell where gasket failed yet. I can't do a compresson test because the engins won't turn over. Battery seems ok but I need to check connections.

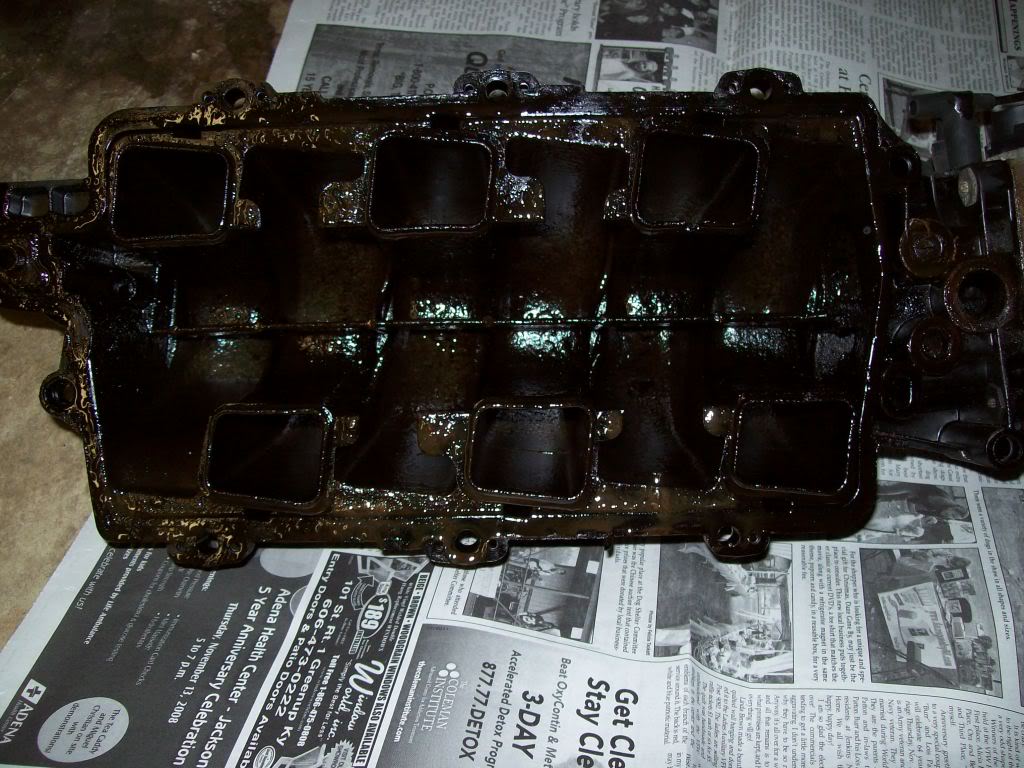

Name:  100_0338.jpg
Views: 114
Size:  162.5 KB

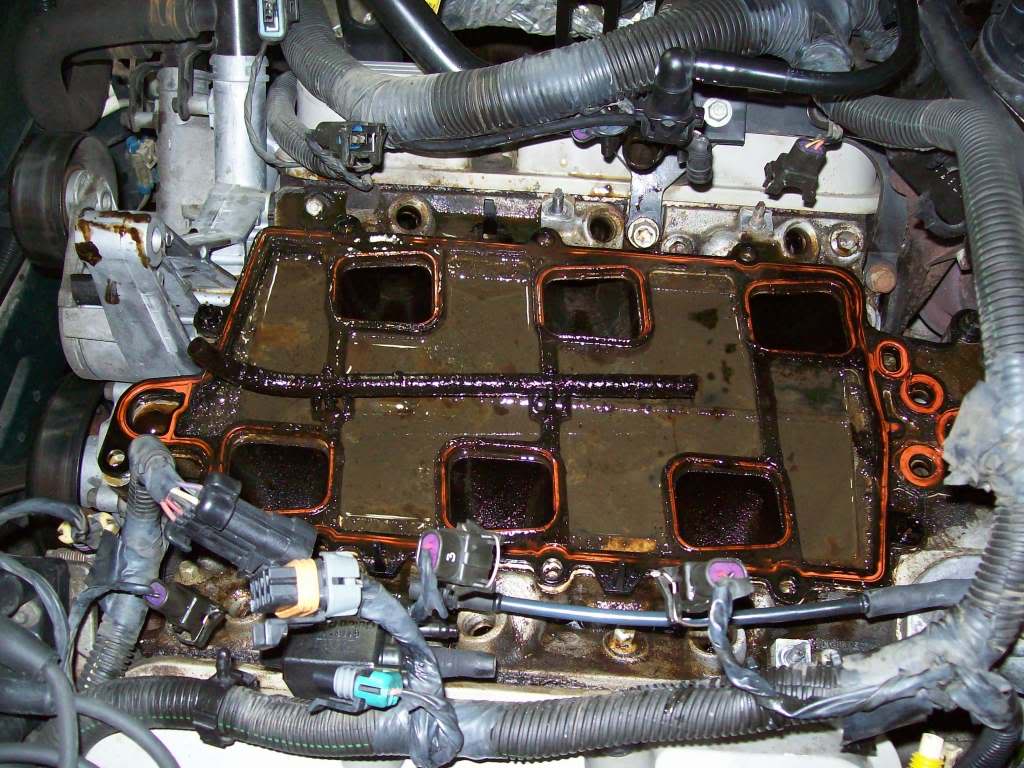

Name:  100_0340.jpg
Views: 143
Size:  147.8 KB
Old Nov 8, 2008 | 10:15 PM
  #19
97BONNIESE's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Jun 2007
Posts: 122
Likes: 2
From: JACKSON, OH
97BONNIESE is on a distinguished road
Default

What is the tube for that clip into the gasket? Also, I understand that the coolant flows through the intake & exits the other end ( but I don't know what route it takes). I don't understand why there is oil. Where does it come in & go out?
Old Nov 10, 2008 | 09:57 PM
  #20
97BONNIESE's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Jun 2007
Posts: 122
Likes: 2
From: JACKSON, OH
97BONNIESE is on a distinguished road
Default

I'm going to get an APN manifold kit. I can rotate the engine by turning the crank so it'* not locked up. I just hope the head gasket is OK.
