Anyone know what could cause a blockage like this?

Closed Thread Subscribe

Thread Tools

Search this Thread

Feb 2, 2008 | 08:36 PM

lunchboxx

Thread Starter

Senior Member

Posts like a Supercharger

Joined: Jan 2008

Posts: 182

Likes: 0

From: Orlando Florida

Anyone know what could cause a blockage like this?

This blockage was in my LIM water channels..and there was this pitting in the LIM as well..

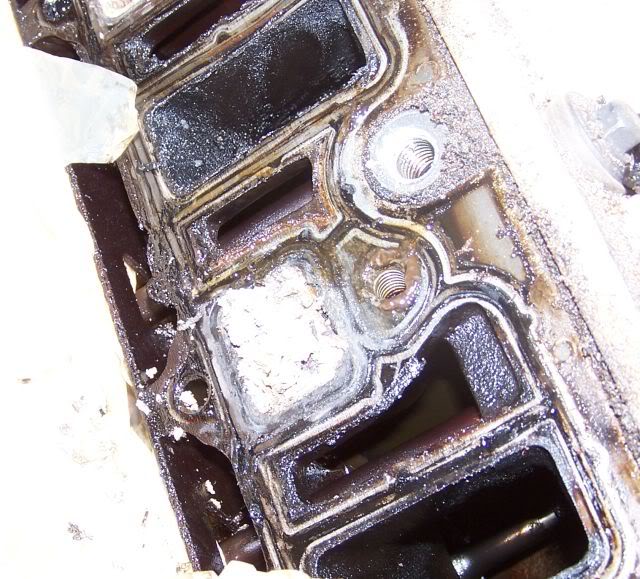

Name: blockage.jpg
Views: 130
Size: 93.7 KB

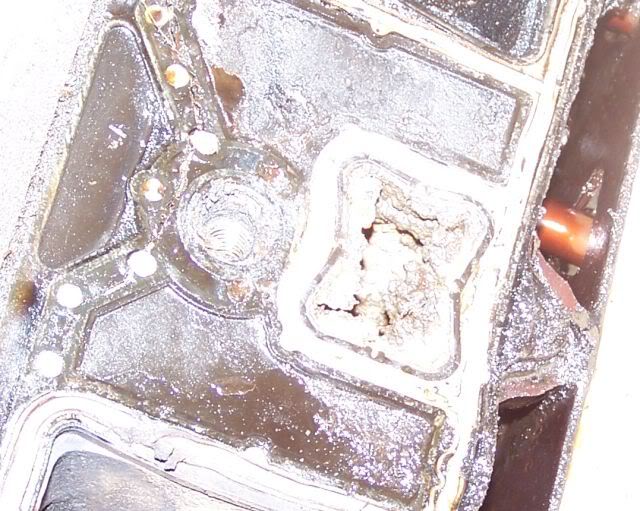

Name: blockage3.jpg
Views: 93
Size: 83.8 KB

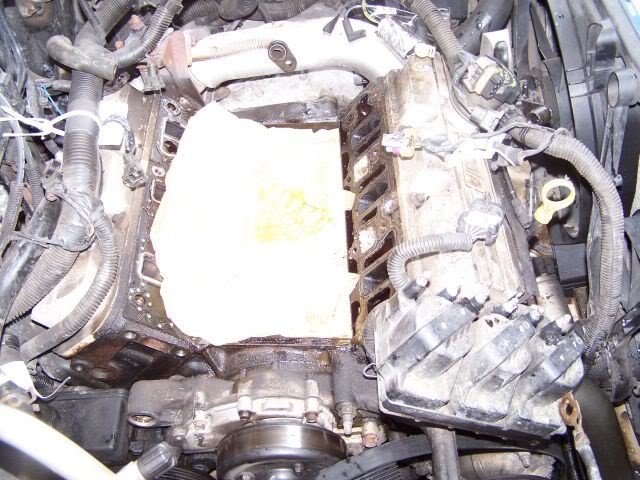

Name: blockage2.jpg
Views: 84
Size: 76.8 KB

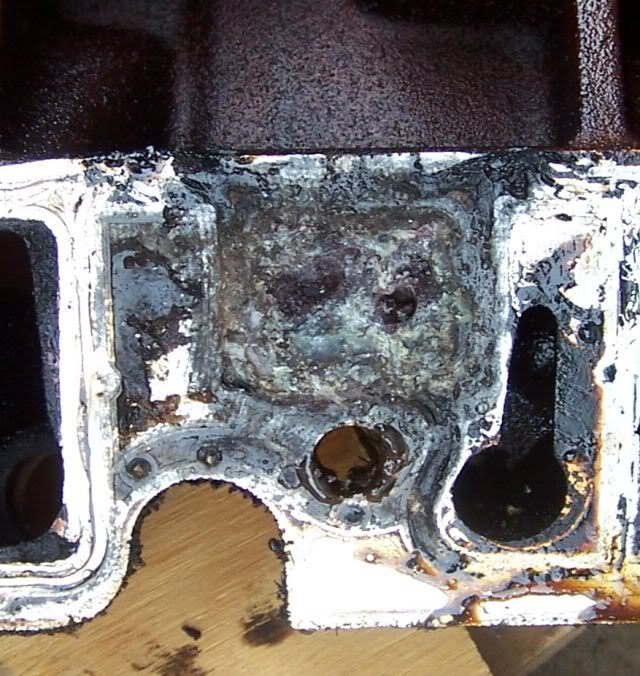

Name: pitting.jpg
Views: 85
Size: 101.3 KB

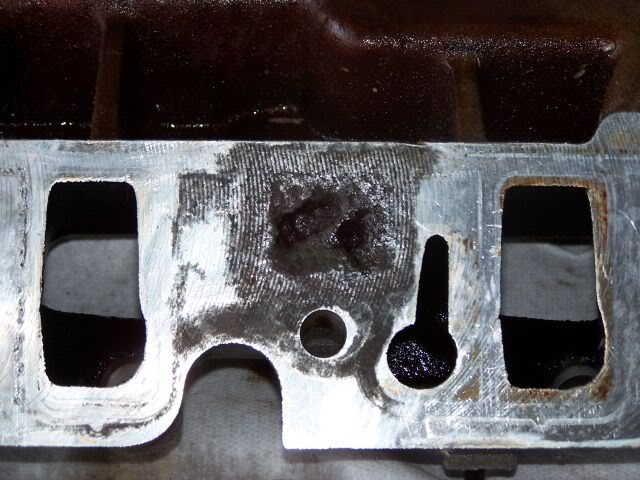

Name: closeuppit.jpg
Views: 94
Size: 64.7 KB

Feb 2, 2008 | 10:21 PM

White93z34

Senior Member

Posts like a Supercharger

Joined: Sep 2007

Posts: 166

Likes: 0

From: Zelienople, Pennsylvania

one very neglected cooling system!

Feb 2, 2008 | 11:22 PM

bill buttermore

Senior Member

True Car Nut

Joined: Mar 2004

Posts: 3,066

Likes: 10

From: Ames, Iowa

bill buttermore is on a distinguished road

Either Dex gone acidic or perhaps someone used an oxalic acid cooling system cleaner and failed to flush it out properly. The pitting on that LIM is so deep, it appears to perforate to the exterior. I have never seen one that bad. You did not re-install that LIM, I hope?

You are aware that the LIM blinds or blocks one coolant passage on each cylinder head, right? It is common for these "dead ends" to get filled up with sludge, but the corrosion that you have is not common at all.

Feb 3, 2008 | 01:34 PM

TheDude

Senior Member

Posts like a Turbo

Joined: Sep 2007

Posts: 345

Likes: 0

From: Saginaw, MI

Quote:

Originally Posted by White93z34

one very neglected cooling system!

You got that right!!!. I did a LIM on a 98 Grand Prix that looked like that. 179000 miles on the ORIGINAL Dexcool. The LIM was pitted too. Needless to say it was junk. DO NOT reinstall that LIM. It will leak, guarenteed.
