Default Aftermarket trans temp gauge

hello, i was wondering where to put the tempature sender for an aftermarket trans temp, would it be a "T" fitting off one of the cooler lines, or driectly onto the tranny somewhere any advise or pics would be much appreciated!!!!! thanks

nicky
neekolas is offline   Reply With Quote
Old 03-18-2005, 04:52 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

i did it to my car. there is a thredded pressure test port on top of the trans, right below the TB that can used for the sender location. Everyone that is running one has the sender there.
1993 SLE is offline   Reply With Quote
Old 03-18-2005, 05:18 PM   #3
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Dec 2003
Location: Menomonee Falls, WI
Posts: 158
Thanks: 0
Thanked 0 Times in 0 Posts
neekolas is on a distinguished road
Default

is that the threaded hole, that seams to be hollow, below, is this an accurate temp reading.........any pics......please

thanks for the responce

nicky
neekolas is offline   Reply With Quote
Old 03-18-2005, 05:31 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by neekolas
is that the threaded hole, that seams to be hollow, below, is this an accurate temp reading.........any pics......please

thanks for the responce

nicky
let me get the camera

be back shortly
1993 SLE is offline   Reply With Quote
Old 03-18-2005, 05:50 PM   #5
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

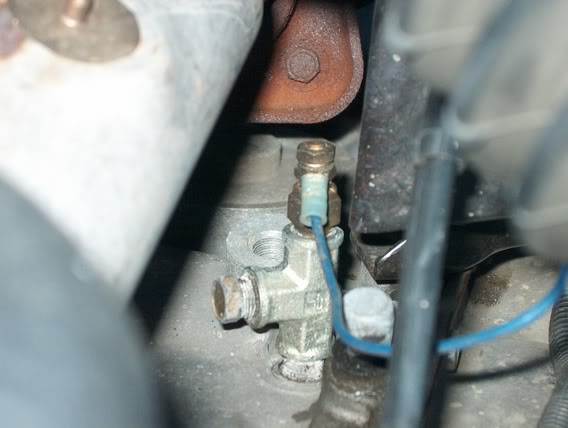

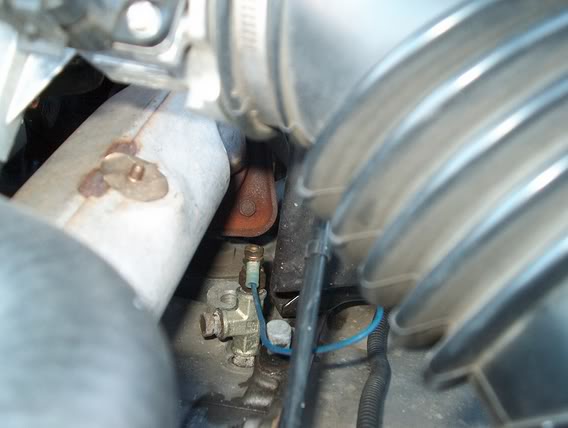

i had ti use a T fitting to fit in that thredded hole, the gold part with the blue wire is the actuall temp sender

Name:  tempsender001.jpg
Views: 1
Size:  42.8 KB

Name:  tempsender002.jpg
Views: 1
Size:  42.8 KB

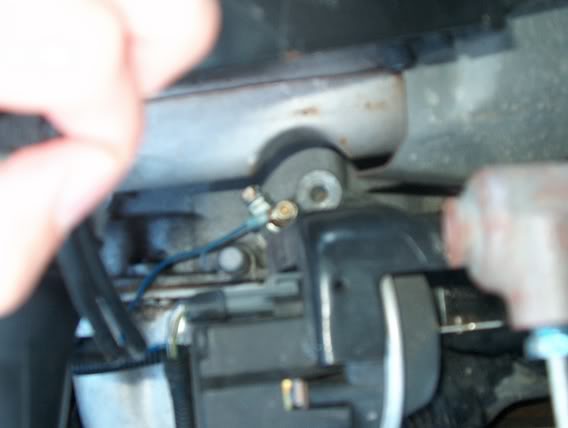

here shows the location of the sender

Name:  tempsender003.jpg
Views: 1
Size:  34.3 KB
