'98 Bonneville, Instrument cluster issues - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 04-22-2010, 09:43 AM   #11
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Could this be a VATs issue?
Danthurs is offline   Reply With Quote
Old 04-22-2010, 10:20 AM   #12
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2006
Location: Pittsburgh, PA
Posts: 68
Thanks: 0
Thanked 0 Times in 0 Posts
hotrod53 is on a distinguished road
Default

I think that if it were a VATS issue the security light would be on
hotrod53 is offline   Reply With Quote
Old 04-22-2010, 10:26 AM   #13
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

One other huge thing I forgot to mention.

Your pcm is not the cause of bad gauges. The oil pressure reading does not travel through the pcm at all. Volts probably doesn't either. I would think the cluster is bad or there is a bad ground etc causing the issue.

The start and stall out condition is classic VAT'*, I'm thinking your security light, never flashes or lights? That would mean the bulb is burnt out. It should flash at some point just to show us it'* working.

My suggestion is to put the original PCM back in and verify the car starts and runs. Then give us a little more info about when each gauge stopped working properly and their symptoms. We should then be able to help you diagnose a cluster, ground or sending units.
BillBoost37 is offline   Reply With Quote
Old 04-22-2010, 10:36 AM   #14
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

When you turn the key all dash lights should come on to show they are working. If no security light at that time, then it'* burnt out.
Danthurs is offline   Reply With Quote
Old 04-22-2010, 10:43 AM   #15
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2006
Location: Pittsburgh, PA
Posts: 68
Thanks: 0
Thanked 0 Times in 0 Posts
hotrod53 is on a distinguished road
Default

BillBoost37, I tend to agree with you but I already replaced the cluster and I have cleaned both buss bar grounds, cleaned all fender grounds, cleaned all battery cables, replaced the alternator, and replaced the pressure sender. I'm kind of at a loss now, I swear that I saw that the PCM feeds the oil pressure gauge on a diagram, I'm going to look for that again.
hotrod53 is offline   Reply With Quote
Old 04-22-2010, 10:44 AM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If so...and I've been mistake before (in pre 2000 the pcm wouldn't actually do anything with that info if it'* getting it.) and if I am...I'm out for a different pcm to fix my oil and alt issues in my car.
BillBoost37 is offline   Reply With Quote
Old 04-22-2010, 10:47 AM   #17
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I say try this. https://www.gmforum.com/electrical-133/bypass-vats-92-99-a-279119/ The way the write up is done you can put it right back if it didn't work.
Danthurs is offline   Reply With Quote
Old 04-22-2010, 10:50 AM   #18
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Like mentioned, I am having trouble understanding the desire to to bypass the VAT'*, it'* not part of the issue.

Name:  99BonnevilleUB3ClusterOPSensor.gif
Views: 39
Size:  30.8 KB

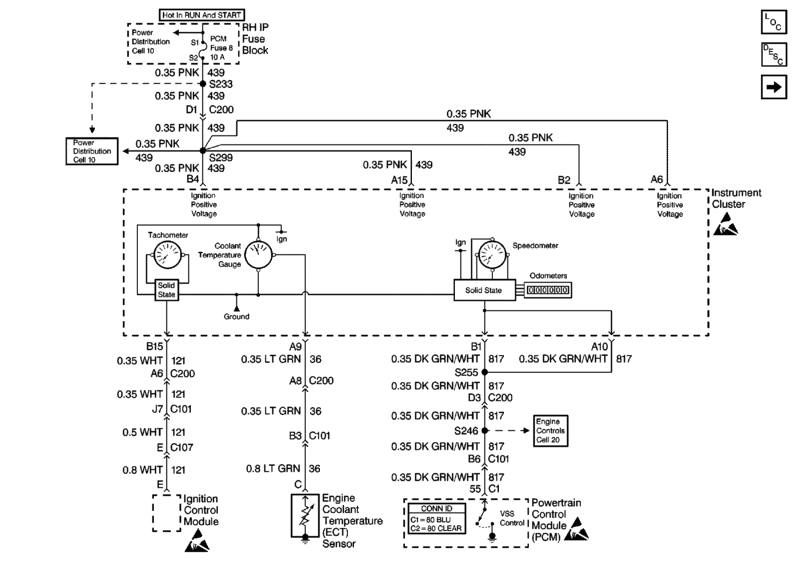

Name:  99BonnevilleUB3Cluster.gif
Views: 37
Size:  49.0 KB

OP and volts are direct.
BillBoost37 is offline   Reply With Quote
Old 04-22-2010, 09:44 PM   #19
Senior Member
Posts like a Turbo

Tom_Sawyer_Man's Avatar

Join Date: Dec 2009
Location: Kitchener On.
Posts: 348
Thanks: 0
Thanked 0 Times in 0 Posts
Tom_Sawyer_Man is on a distinguished road
Default

your problem is not security related
The PASS-Key II module produces the Theft Deterrent Fuel Enable signal when ignition is ON and the proper key resistor pellet is sensed by the PASS-Key II module. The PCM monitors the Fuel Enable signal during crank. If the proper signal is present on the Theft Deterrent Fuel Enable circuit, the PCM enables fuel delivery to allow the engine to start. If the PCM detects that the fuel enable signal is not present or is incorrect while an attempt is made to start the engine, DTC P1629 will be set. The engine will not start as long as this condition is present. If the problem also affects inputs to the PASS-Key II module, the starter motor may be disabled. If this condition is present, refer to Theft Deterrent Systems for further diagnosis.
Tom_Sawyer_Man is offline   Reply With Quote
Old 04-22-2010, 09:47 PM   #20
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Different years handle the pass key in different ways. Some years wont crank. Others allow the fuel pump to prime, the engine will crank, fire, then die because the injectors shut down.
Danthurs is offline   Reply With Quote
