Old 08-20-2010, 07:11 AM   #21
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I know I'm a little late to the backwards bolt party, but another way you can take it out is to drop the ps pump off the engine and use about 18" of extension under the rear manifold. Had a guy show up once w/o his wheel lock, motor still came out

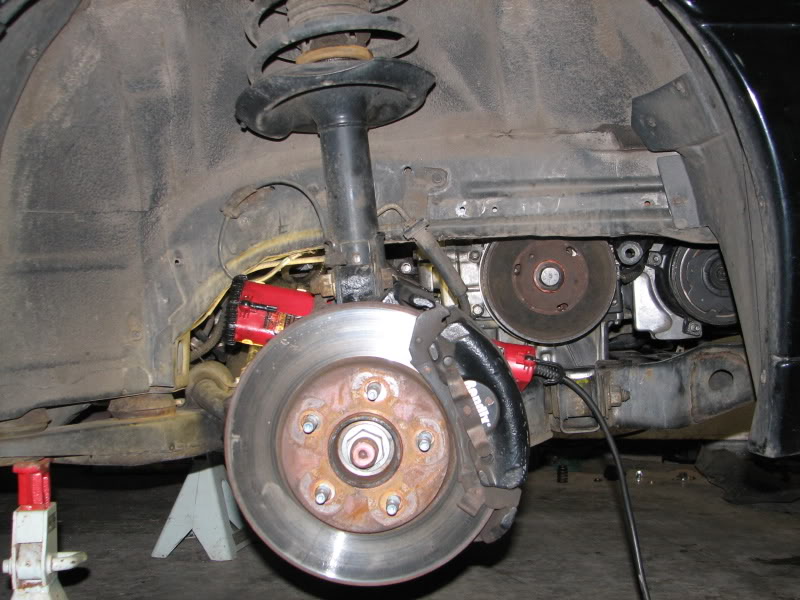

For others that might read this and not understand the difficulty of finding this bolt. Once the diff bracket is out of the way here'* the view coming in. Look for the silver dot right above the disc brake.
Name:  IMG_1672.jpg
Views: 2
Size:  91.7 KB

Closer


And closer
Name:  IMG_1674.jpg
Views: 3
Size:  58.7 KB

Whooa back up
Name:  IMG_1673.jpg
Views: 2
Size:  39.4 KB

And once this bracket is missing
Name:  IMG_5450.jpg
Views: 2
Size:  140.1 KB

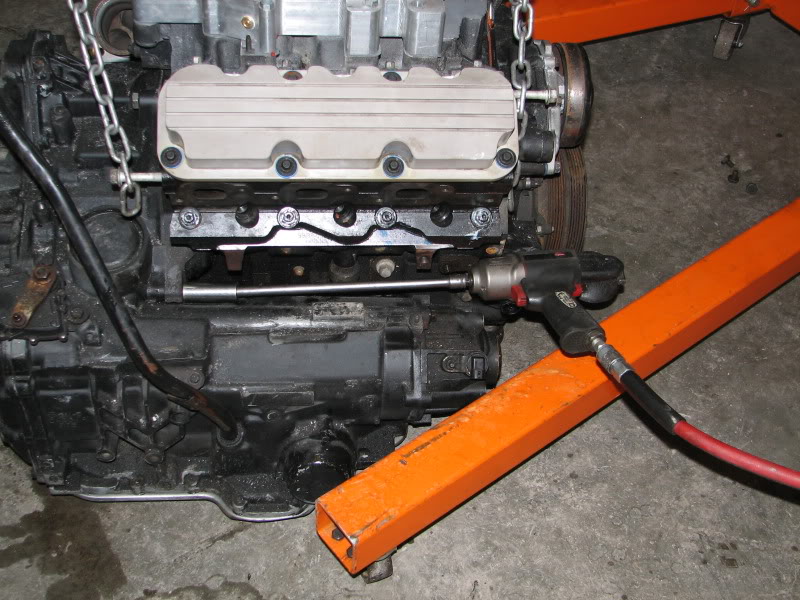

You can do this
Name:  IMG_5516.jpg
Views: 2
Size:  123.0 KB

Because it'* located under here
BillBoost37 is offline   Reply With Quote
Old 08-20-2010, 07:15 AM   #22
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Ahh, those are the pics we needed so bad here Bill!

We need to do a write-up for Tech info on this darn bolt!
Mike is offline   Reply With Quote
Old 08-20-2010, 07:22 AM   #23
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Mike...you know that any pics you ever need can be found in my pb account.

BillBoost37
Boosted

Helpful pictures is where most of those reside.
BillBoost37 is offline   Reply With Quote
Old 08-21-2010, 01:46 AM   #24
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

ok, bought an engine out of a 2000 regal, havent gotten it out of the truck yet, $300 30 day warranty is there anything i need to know about the buick version of the motor before I get ready to put it in besides the obvious mounts
bo58gardner is offline   Reply With Quote
Old 08-21-2010, 01:52 AM   #25
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Check the rear exhaust manifold and make sure that the downpipe is in the same location.
Jonpro03 is offline   Reply With Quote
Old 08-21-2010, 08:17 AM   #26
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

All sensors must be swapped over.

I agree with Jon. When I swapped a 97 engine into my 95, the rear exhaust manifold down pipe mating flange was different. Ended up swapping manifolds.

OH! Leave the oil pressure sensor off the engine until you are completely done with the install. They tend to break when dropping the engine in.

Swap fly wheels to be on the safe side.
Mike is offline   Reply With Quote
Old 08-21-2010, 09:23 AM   #27
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

it isa k code so what will happen if i dont switch the sensors out?
bo58gardner is offline   Reply With Quote
Old 08-22-2010, 09:59 AM   #28
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by bo58gardner View Post
it isa k code so what will happen if i dont switch the sensors out?

You will have Check Engine Light nightmares!

You'd be surprised at how often they change parts from year to year on these cars. The 95'* are a rare breed.

OH!! Keep the 95 throttle body and the MAF sensor. 95 was the only year that has their own type of TB. You can tell the difference between 94/below, 95, and 96 and up. The MAF sensor will not fit on any other year besides the 95.
Mike is offline   Reply With Quote
Old 08-26-2010, 11:51 PM   #29
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

I almost haveit in and I am curious that because I didnt have any of my original sensors to replace them with assuming mylight does comeon would I be able to get it reprogrammed to meet the motors year or should I replace the ecu with the matching year?
bo58gardner is offline   Reply With Quote
Old 08-27-2010, 07:04 AM   #30
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Changing a 95 PCM to a newer year is more trouble than its worth. On 95'*, the PCM is located under the passengerside dash. Newer PCM'* are located in the engine bay now.

I'm not sure if reprogramming will work either. I do know some sensors will not connect to your existing harness. ie, oil level sensor, A/C pump has a connector.

If you tried to upgrade to a 97 PCM(not sure about 96) but the 97'* have a second O2 sensor while the 95'* do not.
Mike is offline   Reply With Quote
