Default 95 bonnie reconditioned uim crack big problem??`

Well the uim cracked at 60 inch lbs of tourqe and o I left it at that here is some pics of it.....

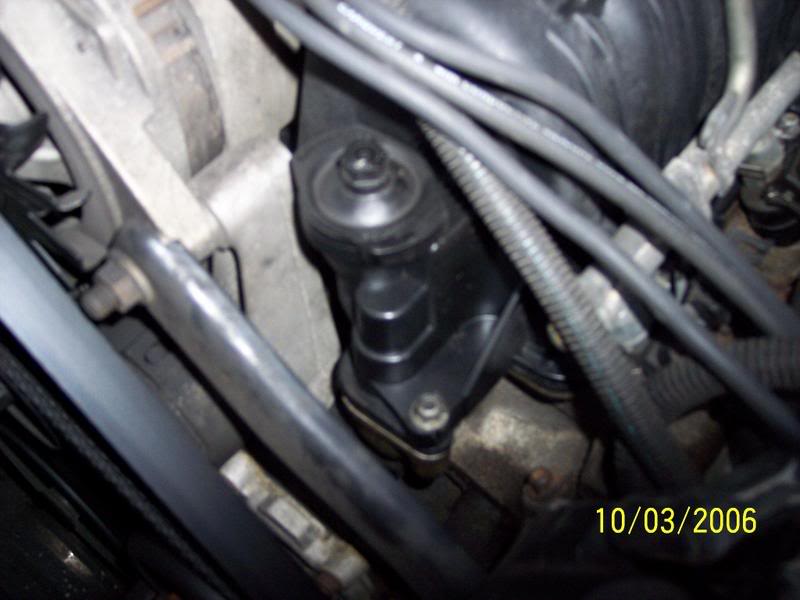

Name:  000_0162.jpg
Views: 0
Size:  49.7 KB

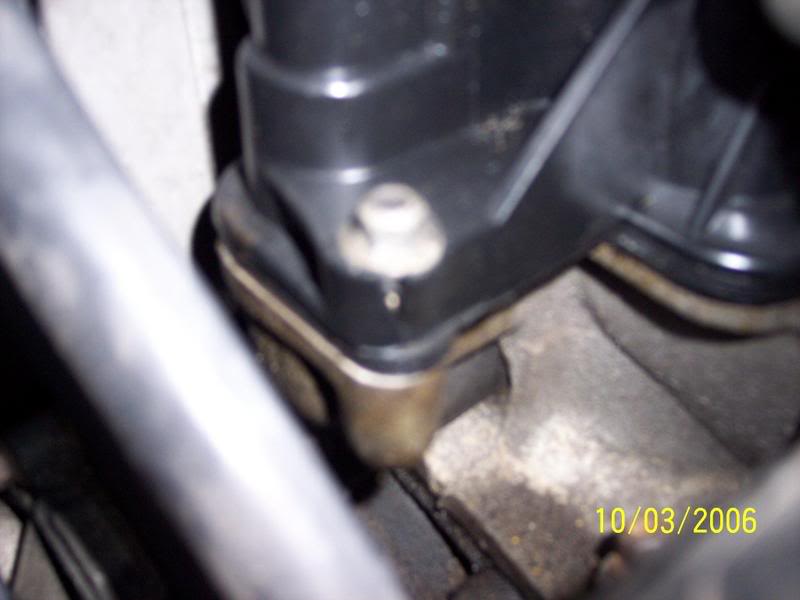

Name:  000_0164.jpg
Views: 0
Size:  37.1 KB

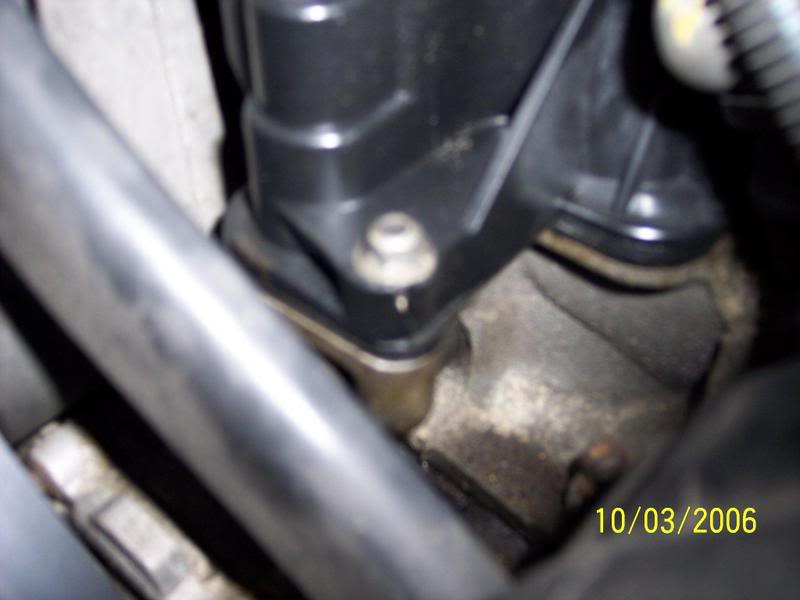

Name:  000_0163.jpg
Views: 0
Size:  36.9 KB
19bonnie95 is offline   Reply With Quote
Old 10-03-2006, 09:57 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

What reconditioned manifold? Where'* it from? Where'* the crack? (can't see a crack through my blurred morning vision).

Did you stage-torque it? Anything in the way?
willwren is offline   Reply With Quote
Old 10-03-2006, 10:00 AM   #3
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Fotunately, that is not a critical area of the UIM. No coolant on this end. To check to see if it is sucking air at that point, with the car idling, shoot a little propane from an unlit torch at the crack and see if there is any change in the idle speed or quality.

It is hard to imagine that only 5 ft-lb of torque broke that. The spec is 7.5 ft-lb or 89 in-lb.
bill buttermore is offline   Reply With Quote
Old 10-03-2006, 10:06 AM   #4
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Bill, the crack is under the bolt on the corner - it'* not just your eyes that are blurry this morning

You have to wonder why it cracked under so little torque. It must have been warped very badly or chemically weakened, or maybe just a factory defect. In any case, it would make me a little concerned about running that upper - especially if similar problems exist at the other end.

If it were mine, I might start saving up for a new APN upper and change it out before the snow starts to fly.
bill buttermore is offline   Reply With Quote
Old 10-03-2006, 10:19 AM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Aug 2005
Location: Saukville Wisconsin
Posts: 193
Thanks: 0
Thanked 0 Times in 0 Posts
19bonnie95 is on a distinguished road
Default

I was using a fleet farm touque wrench it was really junky each little line stood for 30 inch lbs
19bonnie95 is offline   Reply With Quote
Old 10-03-2006, 10:23 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Now I would not drive the car and while it sits, and you're looking for a proper torque wrench, loosen all the rest of them.
willwren is offline   Reply With Quote
Old 10-03-2006, 03:00 PM   #7
Senior Member
Certified Car Nut

Join Date: Jul 2003
Location: Robbinsdale, MN
Posts: 15,408
Thanks: 0
Thanked 0 Times in 0 Posts
MOS95B is on a distinguished road
Default

If you're going to loosen them anyway, and since the crack isn't in a fuel/coolant/vacuum sensitive area, I would personally us some JB Weld to repair that crack.
MOS95B is offline   Reply With Quote
Old 10-03-2006, 03:07 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Can we have a close-up of the graduation marks on your torque wrench?
willwren is offline   Reply With Quote
Old 10-03-2006, 09:43 PM   #9
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Aug 2005
Location: Saukville Wisconsin
Posts: 193
Thanks: 0
Thanked 0 Times in 0 Posts
19bonnie95 is on a distinguished road
Default

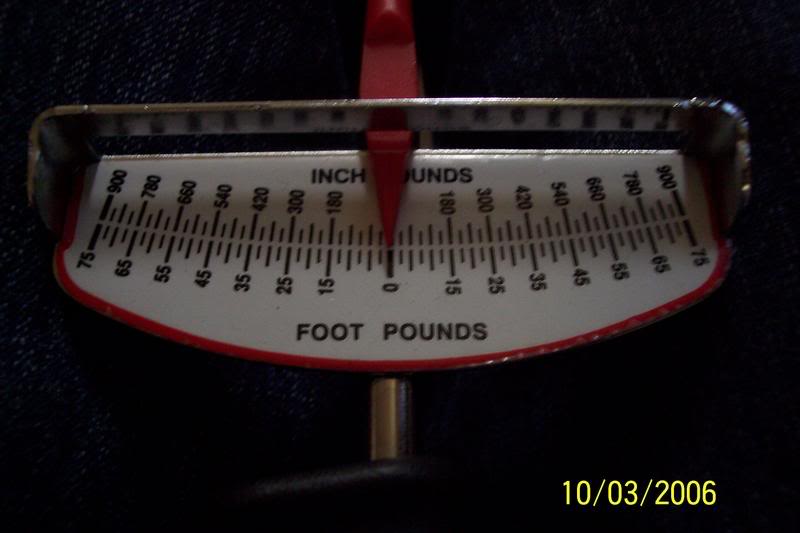

here it is

Name:  000_0170.jpg
Views: 0
Size:  37.4 KB
19bonnie95 is offline   Reply With Quote
Old 10-04-2006, 12:17 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That is the worst kind of torque wrench imaginable. It might only be accurate at mid-scale.
