LMAO! You are right. PDF is the new paperbook.
Mike is offline   Reply With Quote
Old 10-15-2012, 03:30 PM   #12
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default Quick question about snap rings

I am putting the second clutch sub-assembly back together and got my snap rings mixed up..

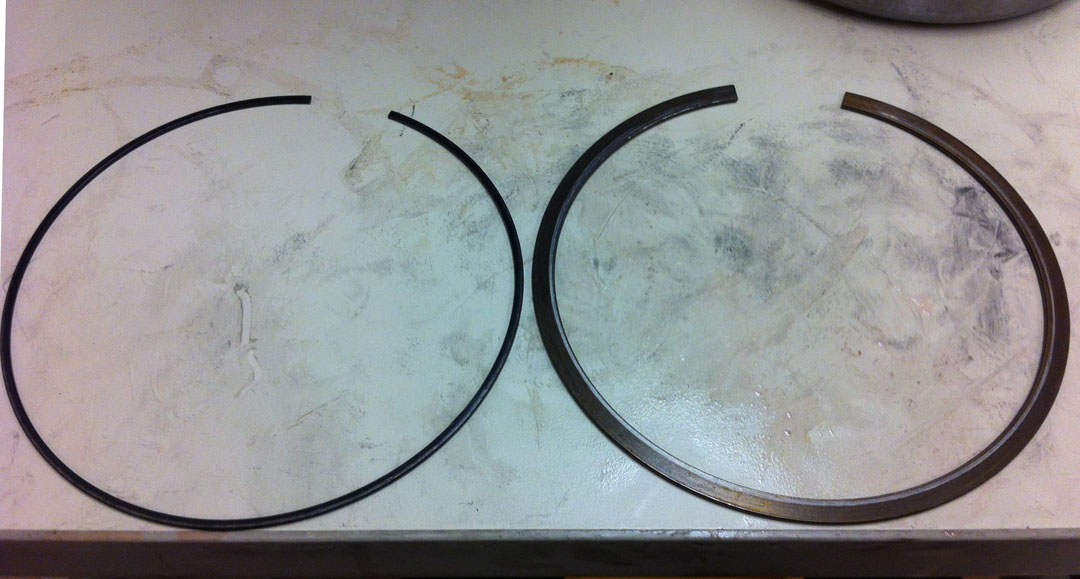

Here are the snaprings:

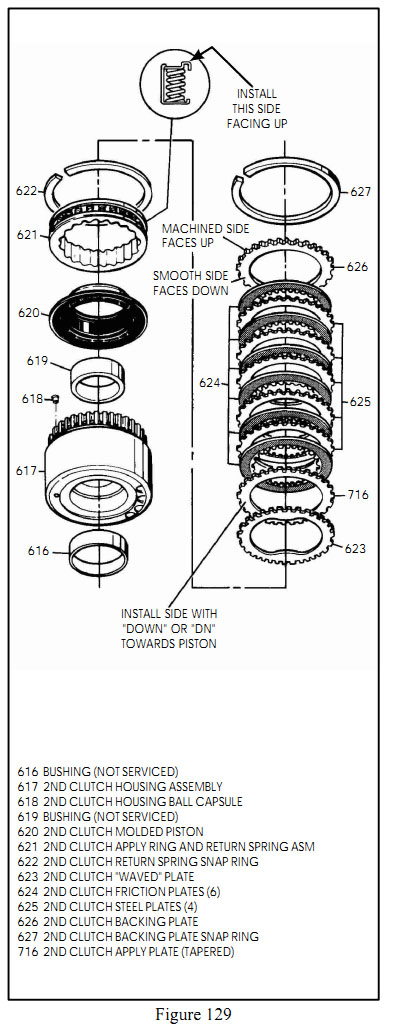

Here is what it looks like in the ATSG manual


Note: 622 holds down the spring plate
627 holds down the clutch packs

Any idea which is which?
Attached Thumbnails
4T60E Shifter Assembly holding pin/nail-zpy3p.jpg   4T60E Shifter Assembly holding pin/nail-esarr.jpg
eazhar is offline   Reply With Quote
Old 10-15-2012, 03:55 PM   #13
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,647
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

The one on the right looks like it should be 627
