1997 Upper intake manifold issue 3800 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Closed Thread



Thread Tools Search this Thread
Old 05-02-2007, 10:40 AM   #1
Junior Member
Thread Starter

Join Date: May 2007
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
vernonh76 is on a distinguished road
Default 1997 Upper intake manifold issue 3800

I have the dreaded 3800 UIM problem on my 97 park avenue with the 3800. One queston for the group I have is I was going to buy LIM gaskets as well as the Dorman upper. Everywhere I go has a first design and second design LIM gasket set by Felpro, or GM at the dealership. No one can tell me which I need. Does anyone here know if there is a difference and which one I should get.
vernonh76 is offline
Old 05-02-2007, 11:56 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Welcome to the group. Read this techinfo article, and it should answer all of your questions.
http://www.bonnevilleclub.com/forum/...e=article&k=38

In short - GM LIM gaskets, APN UIM.
Archon is offline
Old 05-02-2007, 12:34 PM   #3
Junior Member
Thread Starter

Join Date: May 2007
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
vernonh76 is on a distinguished road
Default

Thanks for the reply, and I did read the article, that is how I found ya'lls website. I went to the dealership on the LIM gasket, and they can't tell me which one I need either, they said it could be first design or second design, and the only way to tell would be to pull the old ones off. Which I will do, I was just hoping to have the parts to fix it before I start. Here is Felpros description, which is the same as the GM dealer told me.

1st Design; w/Rubber end seals w/o Locating pins; Lower set

2nd Design; w/Rubber-plastic end seals w/Locating pins; Lower set

Has anyone else had this issue? Is this only with the 97 3800 engines?
vernonh76 is offline
Old 05-02-2007, 12:39 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

In the long run, just get the one with the locating pins. If your block doesn't have the holes, just cut the pins off (they're just rubber) and everything will be fine.
Archon is offline
Old 05-02-2007, 01:25 PM   #5
Senior Member
Posts like a Turbo

Join Date: Mar 2006
Location: Houston, Tx
Posts: 367
Thanks: 0
Thanked 0 Times in 0 Posts
BonnevillesSince62 is on a distinguished road
Default

I used FelPro gaskets with the pin on my '97.
BonnevillesSince62 is offline
Old 05-02-2007, 02:49 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You want to ensure when you put on LIM gaskets ...they are aluminum frame. If they aren't.. they are not the most current design.
BillBoost37 is offline
Old 05-02-2007, 03:13 PM   #7
Junior Member
Thread Starter

Join Date: May 2007
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
vernonh76 is on a distinguished road
Default

Thanks for the info.

BonnevillesSince62, were the Felpros you used aluminum frame? I have the new Felpros in a box, with pins, but if I open it I can't take it back. I figured I would open it once I see if my heads have locating holes or not.
vernonh76 is offline
Old 05-02-2007, 03:55 PM   #8
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

As far as anyone here knows, Felpro does not make an aluminum framed LIM gasket set, so save some time and retiurn those and go to you GM dealer and get the aluminum-framed ones with a part number the same or similar (there is some variation in the part number, but not by more than a couple digits) as the one referenced in the TECHINFO article.

GM just started offering these aluminum-framed replacement gaskets the summer of 2005 and to date, there has been no other place to get them. If you use anything less than the GM aluminum-framed gaskets, you will be assured of having to replace them again in a few years.

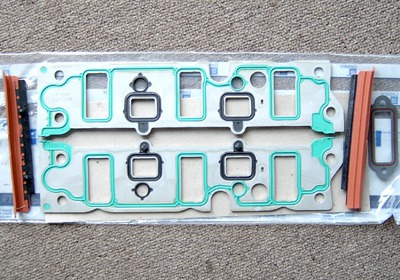

Name:  ALUMINUMLIM.jpg
Views: 118
Size:  54.9 KB
GM Aluminum Frame Lower Intake Manifold Gasket set: GM PN# 89017816

As mentioned already, some have found their local GM dealer to carry these with a slightly different P/N, but this will get you where you need to be.
lash is offline
Old 04-21-2008, 02:20 AM   #9
Junior Member

Join Date: Apr 2008
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
dwev is on a distinguished road
Default

I just got done with this problem. Is it a known fact that the Fel-Pro LIM gasket will fail??? Always thought Fel-Pro made good products.
dwev is offline
Old 04-21-2008, 02:36 AM   #10
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by dwev
Is it a known fact that the Fel-Pro LIM gasket will fail??? Always thought Fel-Pro made good products.
To date, FelPro LIM gaskets are plastic frame. GM went to aluminum because of the high failure rate of plastic. Please read the Techinfo article #38 linked above.

(BTW, it is better to start a new thread than to reply to threads that have been dormant for many months. That way newer information doesn't get mixed up with older stuff. Don't be surprised if a Moderator locks up this thread and asks you to start a new one.)
bill buttermore is offline
