Old 05-13-2010, 10:54 PM   #11
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The most common place for a supercharged engine to leak coolant is the coolant elbow under the snout of the supercharger. You will see a black plastic elbow going from the lower intake to the tensioner bracket. Can you see if it'* wet?
Danthurs is offline   Reply With Quote
Old 05-13-2010, 11:09 PM   #12
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
bear801208 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
The most common place for a supercharged engine to leak coolant is the coolant elbow under the snout of the supercharger. You will see a black plastic elbow going from the lower intake to the tensioner bracket. Can you see if it'* wet?

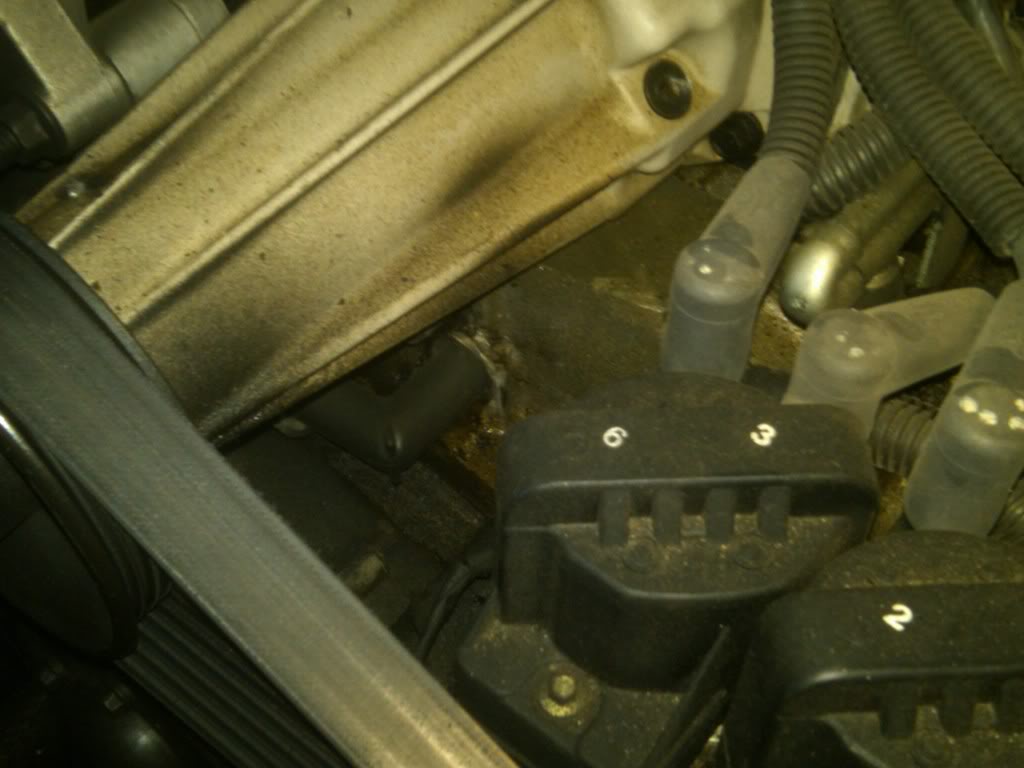

This area?

Name:  IMG00004-20100513-1957.jpg
Views: 9
Size:  65.5 KB

It doesn't seem any wetter than any other part of the engine.
bear801208 is offline   Reply With Quote
Old 05-13-2010, 11:16 PM   #13
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Yea the black elbow in the center of the pic is the one Dan was referencing
yutzybrian is offline   Reply With Quote
Old 05-13-2010, 11:17 PM   #14
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yep, that'* it. Coolant has to go somewhere. Your oil is clean so it'* not getting in to the engine. The exhaust does not smell sweet so it'* not being burned. So I'm thinking the LIM gaskets are fine. A supercharged engine wont leak threw the EGR. Are you finding any spots on the ground under the car when it'* been parked? The places it can leak are some what limited. Heater hoses, radiator hoses, coolant elbows. There are two of them. Another further back from the one you pictured. Leaking radiator or radiator cap. Freeze plugs, throttle body gasket, LIM gasket, and O-rings between the LIM and supercharger.
Danthurs is offline   Reply With Quote
Old 05-13-2010, 11:23 PM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
bear801208 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Yep, that'* it. Coolant has to go somewhere. Your oil is clean so it'* not getting in to the engine. The exhaust does not smell sweet so it'* not being burned. So I'm thinking the LIM gaskets are fine. A supercharged engine wont leak threw the EGR. Are you finding any spots on the ground under the car when it'* been parked? The places it can leak are some what limited. Heater hoses, radiator hoses, coolant elbows. There are two of them. Another further back from the one you pictured. Leaking radiator or radiator cap. Freeze plugs, throttle body gasket, LIM gasket, and O-rings between the LIM and supercharger.
I have noticed that it'* been leaking. Actually, when I changed my oil I noticed the bottom of the engine was very dirty, but the leaking looks more like oil, not coolant. I just went out and looked where I park, and there are spots where it has leaked. These are also dark.

I'll check out those other places you suggested. The throttle body gasket is definitely hosed, so I'll get a new one.

Thanks everybody for all the help. I greatly appreciate it.
bear801208 is offline   Reply With Quote
Old 05-13-2010, 11:31 PM   #16
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Is it dripping at the front, rear or passenger side?
Danthurs is offline   Reply With Quote
Old 05-13-2010, 11:35 PM   #17
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
bear801208 is on a distinguished road
Default

Front right, mainly. As I went out to check some things, I noticed that there is a red liquid dripping from the front right passenger side. It'* collecting right at the bumper and dropping from there. I'll take a picture. This is getting better and better.

I know the coolant isn't red. Transmission fluid is red, isn't it?
bear801208 is offline   Reply With Quote
Old 05-13-2010, 11:38 PM   #18
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The trans cooler lines connect in that area. Your radiator might be leaking. Check the trans fluid just to make sure the coolant isn't going there. I've never seen this happen, but it'* worth a look.
Danthurs is offline   Reply With Quote
Old 05-13-2010, 11:55 PM   #19
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
bear801208 is on a distinguished road
Default

Pictures on the way. This is ugly. I know I'm not wonderful at these things, but this is incredible.
bear801208 is offline   Reply With Quote
Old 05-14-2010, 12:21 AM   #20
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
bear801208 is on a distinguished road
Default

I'm embarrassed, but these are the pictures of the undercarriage. I'm pretty sure I've got a few problems to take care of.

I'm not sure it can be seen very well, but there'* coolant drops all over the center piece, where the bolt is and around it.

Name:  Under2.jpg
Views: 6
Size:  80.7 KB
bear801208 is offline   Reply With Quote
