Angry 1995 SSEi Water pump nightmare!!

Trying to replace water pump>and get idler pulley bracket assembly out of the way for wp bolt at 7 o'clock position>and trying to get ps pump out of the way to get middle pulley bracket bolt out .....ps reservoir clip is in the way of this bolt. Can clip be unclipped or does pump have to come loose?? Are pump bolts the two 10 mil @ 12 and 6?? They are screwed...vice grips not even working. Now what?
Help!
I will get pics on tonight if that helps.
flatlander745 is offline   Reply With Quote
Old 03-08-2010, 08:10 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The power steering pump bolts come out by turning the pulley so the hole is at 12 and then use a deep 13mm socket to remove it, then turn pulley to 6 and do the same. Don't drop the pump. It will brake the oil pressure sensor.
Danthurs is offline   Reply With Quote
Old 03-08-2010, 08:20 PM   #3
Member
Posts like a V-Tak
Thread Starter

flatlander745's Avatar

Join Date: Jan 2008
Location: Pennsylvania
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
flatlander745 is on a distinguished road
Default

Dan, all i see are 10 mil bolts at 12 and 6.....i will get pics up as soon as i can
flatlander745 is offline   Reply With Quote
Old 03-08-2010, 08:22 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hmm, they might be 10mm, I can't remember all the sizes.
Danthurs is offline   Reply With Quote
Old 03-08-2010, 08:28 PM   #5
Member
Posts like a V-Tak
Thread Starter

flatlander745's Avatar

Join Date: Jan 2008
Location: Pennsylvania
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
flatlander745 is on a distinguished road
Default

what about the ps reservoir clip on the top of the pump? Can that be moved/ unclipped?
flatlander745 is offline   Reply With Quote
Old 03-08-2010, 08:29 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

If you remove that it will make a mess. Way easier to just remove the two bolts. I've done it several times.
Danthurs is offline   Reply With Quote
Old 03-08-2010, 10:03 PM   #7
Member
Posts like a V-Tak
Thread Starter

flatlander745's Avatar

Join Date: Jan 2008
Location: Pennsylvania
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
flatlander745 is on a distinguished road
Default PS pump pics

Quote:
Originally Posted by Danthurs View Post
If you remove that it will make a mess. Way easier to just remove the two bolts. I've done it several times.

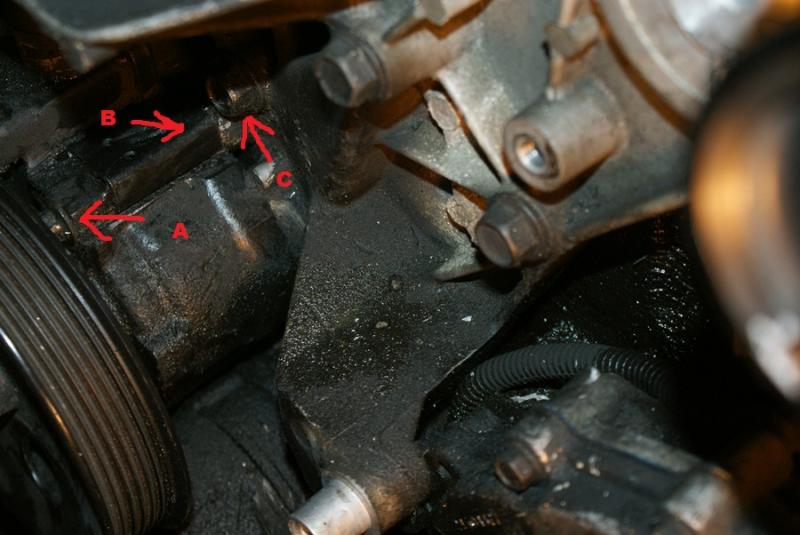

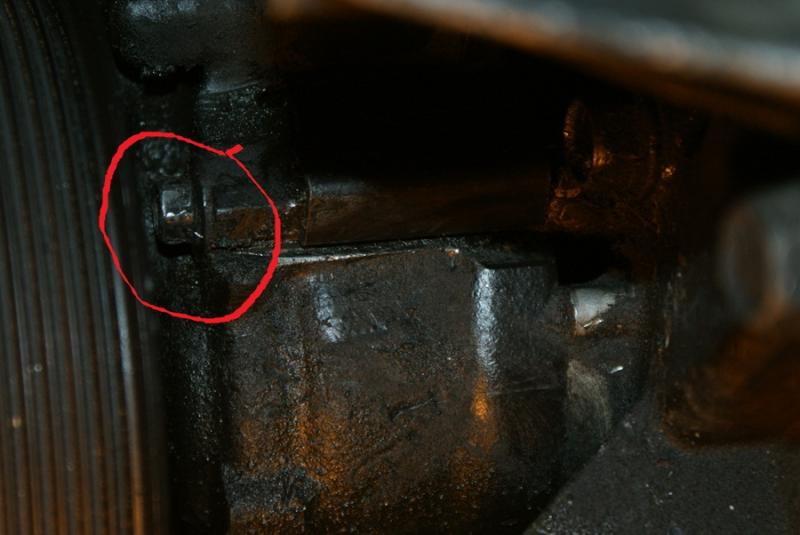

Dan, here is what I got. A) is the ps mounting bolt? One on top and bottom...mine are 10 mil and @[email protected][email protected], rounded! B) is the stupid clip blocking bolt C), which is blocking.............Water pump, lol.
Attached Thumbnails
1995 SSEi Water pump nightmare!!-ps.jpg   1995 SSEi Water pump nightmare!!-ps2.jpg
flatlander745 is offline   Reply With Quote
Old 03-08-2010, 10:10 PM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

If memory serves me right, the only way to get that clip off is on the bench, so the pump needs to be off the car.
Danthurs is offline   Reply With Quote
Old 03-08-2010, 10:17 PM   #9
Member
Posts like a V-Tak
Thread Starter

flatlander745's Avatar

Join Date: Jan 2008
Location: Pennsylvania
Posts: 59
Thanks: 0
Thanked 0 Times in 0 Posts
flatlander745 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
If memory serves me right, the only way to get that clip off is on the bench, so the pump needs to be off the car.
LOL, ok, so am I looking at the right bolts to get pump loose? A) in the pic?
flatlander745 is offline   Reply With Quote
Old 03-08-2010, 10:21 PM   #10
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yep, that'* one of them.
