1995 - Driver's Side Mirror Issue

Thread Tools

Search this Thread

Old Oct 11, 2011 | 04:15 PM
  #1
Hannah101's Avatar
Thread Starter
Junior Member
Posts like a Ricer Type-R

Joined: Sep 2011
Posts: 10
Likes: 0
From: Fort Wayne, IN
Hannah101 is on a distinguished road
Default 1995 - Driver'* Side Mirror Issue

The driver'* side mirror in my '95 Bonneville - Bridget - vibrates, even at city speeds (it'* worse at highway speeds.) Is there a) any particular reason for this and b) anything I can do about it? Mind you, the mirror is still fully attached to the door and nothing is visibly loose.
Reply
Old Oct 11, 2011 | 04:24 PM
  #2
jwfirebird's Avatar
Senior Member
True Car Nut

Joined: Dec 2009
Posts: 9,616
Likes: 594
From: western,ny state
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

he whole housing or just the glass? my whole housing was and the mirror is brittle plastic and broke i tried epoxy that didnt hold any better im afraid a new housing is the only way
Reply
Old Oct 11, 2011 | 04:28 PM
  #3
Hannah101's Avatar
Thread Starter
Junior Member
Posts like a Ricer Type-R

Joined: Sep 2011
Posts: 10
Likes: 0
From: Fort Wayne, IN
Hannah101 is on a distinguished road
Default

So far, I've only noticed the glass...but thanks for the heads up if it is the entire housing as well!
Reply
Old Oct 11, 2011 | 04:30 PM
  #4
2kg4u's Avatar
Senior Member
True Car Nut

Joined: Sep 2006
Posts: 4,816
Likes: 245
From: Windsor, Ontario / Detroit, Michigan
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

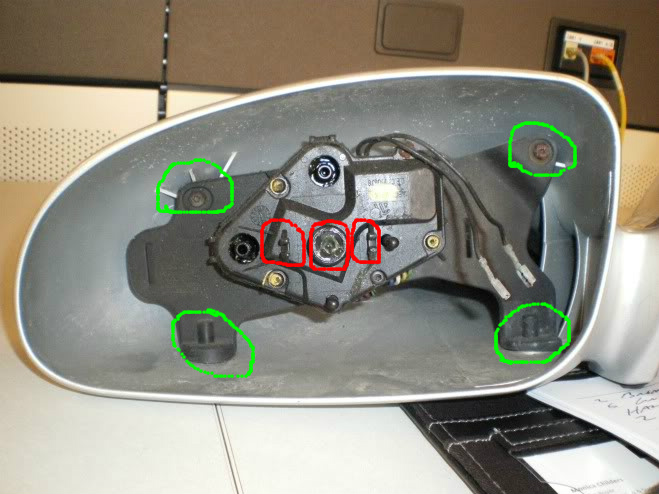

The mirror glass is attached to the back plate with glue, the back plate is attached to the mirror mechanism at 3 snap points (circled in red) and the mirror mechanism is attached to the mirror housing at 4 points (circled in green). Your mirror may be a different design, but the attachment features will be similar.

Check the 2 screws at the bottom of the housing to make sure they are tight. Checking anything else will mean unsnapping the mirror from the mechanism, confirming all attachments, and snapping it back in place.

Attached Thumbnails 1995 - Driver's Side Mirror Issue-imgp0077.jpg   1995 - Driver's Side Mirror Issue-imgp0080-1.jpg
Reply
Old Oct 11, 2011 | 05:20 PM
  #5
Hannah101's Avatar
Thread Starter
Junior Member
Posts like a Ricer Type-R

Joined: Sep 2011
Posts: 10
Likes: 0
From: Fort Wayne, IN
Hannah101 is on a distinguished road
Default

Thank you! The images were helpful in giving me an idea of what to look for on the mirror.
