Default 1994 Bonneville stalling issue.

My son and I bough a 1994 Pontiac Bonneville having a stalling problem.
placed cam/crank sensor, fuel line has good pressure, wire harmess located between the drivers side are in great condition, no error codes after cam/crank sensor has been replaced but still stalled. I've checked on line and found alot of similur problems but no solution? Can anyone help. I'm taking the veh. to an authorized dealer. I was told that it might be the computer chip because it sends pulse to the injector? I hope it works. I've spend more than enough $ already. thanks

Last edited by Mike; 01-08-2013 at 10:45 PM. Reason: Fixed title
bf7931 is offline   Reply With Quote
Old 01-08-2013, 10:47 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Try disconnecting the MAF(Mass Air Flow) sensor and see if you can reproduce the stalling issue. Sometimes a bad MAF sensor won't trip a check engine light.
Mike is offline   Reply With Quote
Old 01-10-2013, 11:39 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2013
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
bf7931 is on a distinguished road
Default

Master Mech stated (MAF) is good, He ordered a manufactor cam/crank sensor to see if that works, wires are in great condition, I don't know what else. fuel pressure good.
bf7931 is offline   Reply With Quote
Old 01-11-2013, 12:20 PM   #4
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Moved to Bonneville section for greater visability.
GunsOfNavarone is offline   Reply With Quote
Old 01-11-2013, 01:22 PM   #5
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Did you see if any trouble codes have been set?

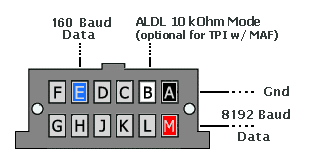

Key in off position, insert paperclip into pins A and B. Have notepad ready. Turn key to ON, NOT RUNNING. It will flash once, short pause, flash twice. That is code 12 indicating the system is ok. Long pause then another set of flashes. Each code is seperated by a long pause. Each code will have a short pause between each number.

Best to run the test again after you get your first set of codes to make sure you got them right. Let us know if you have anything besides 12.
Attached Thumbnails
1994 Bonneville stalling issue.-obd1pinout2.gif
