Default 1992 Bonneville SSE Spark Plug Order

My brother resently replaced all the spark plugs in my car
but i am not sure the he hooked up the wires correctly
does anyone have a picture or could tell me the
correct placment of these wires to the correct cylinder
zbnwr is offline   Reply With Quote
Old 04-05-2008, 07:09 PM   #2
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

Alright, Haro probably has a photo as usual but we'll make it even simpler.

Look at the coils, they're numbered. Now looking at the engine, standing in front of the car, the bank closest to you is ordered from left to right, 1, 3, 5 and the bank to the rear is 2, 4, 6. Can't get much easier than that! Good luck!
wjcollier07 is offline   Reply With Quote
Old 04-05-2008, 07:16 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2008
Location: DeMotte, Indiana
Posts: 64
Thanks: 0
Thanked 0 Times in 0 Posts
zbnwr is on a distinguished road
Default

Now where they are numbered can you change those because they are in no specific order they go like this


6 3
2 5
4 1
front of the car
zbnwr is offline   Reply With Quote
Old 04-05-2008, 07:37 PM   #4
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

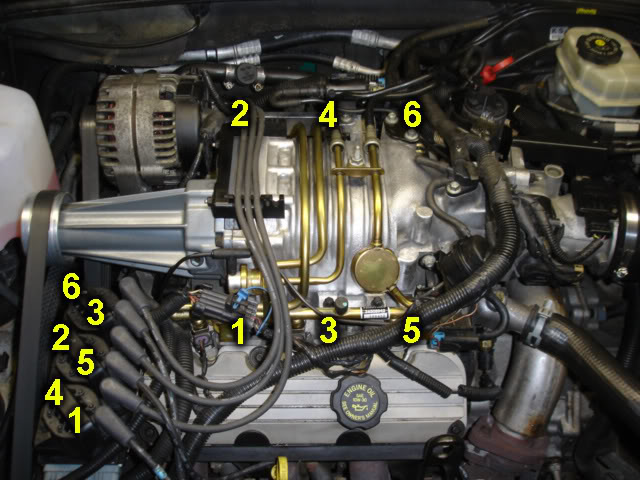

Name:  plugwires.jpg
Views: 5
Size:  73.9 KB
Technical Ted is offline   Reply With Quote
Old 04-05-2008, 07:42 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2008
Location: DeMotte, Indiana
Posts: 64
Thanks: 0
Thanked 0 Times in 0 Posts
zbnwr is on a distinguished road
Default

Okay Thank You
They were hooked up
wrong could this have caused
a starting problem
where it would turn over but not
stay running. ? but it would eventually start ?
zbnwr is offline   Reply With Quote
Old 04-05-2008, 10:09 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

If it'* working now, I guess you could say the answer to your question is probably yes.
willwren is offline   Reply With Quote
Old 04-06-2008, 04:46 AM   #7
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

After having someone else not hook up the plug wires in my 94 correctly last summer, I actually had the exact same car behavior you described. For 3 seconds, and then it was fixed. If you want something done right, you've got to do it yourself.
radomirthegreat is offline   Reply With Quote
Old 04-06-2008, 11:57 AM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It depends on how badly mixed they are. The car will start and drive on 4 cylinders.
willwren is offline   Reply With Quote
