Default Quick coil / ICM question

Hey guys,

I got the bracket, ICM, and coils from Bill earlier in the week, and before I get it all put back together with my new plugs / wires Im wondering in what order do I stick the coils on the ICM in order to make the numbers match the cylinders... you know what I mean? Do they go in the same order as the stock coil pack thing did?

Basically, I need a pic of the coil setup on an 90 or so so I can see the order the coil packs were put on.

Thanks!
-Bob
es_bob is offline   Reply With Quote
Old 07-02-2006, 11:47 AM   #2
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Pretty sure from bottom it is 1-4 , middle 2-5 and top 3-6.
jdq is offline   Reply With Quote
Old 07-02-2006, 01:34 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

willwren is offline   Reply With Quote
Old 07-02-2006, 02:33 PM   #4
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2006
Location: Northern Wisconsin
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
es_bob is on a distinguished road
Default

Thanks guys!
es_bob is offline   Reply With Quote
Old 07-02-2006, 02:36 PM   #5
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2006
Location: Northern Wisconsin
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
es_bob is on a distinguished road
Default

And I pulled all my plug wires, but as far as I know from the front of the car, the firing order is, from passenger side to driver'*



1 - 3 - 5 front bank
2 - 4 - 6 rear

right?
es_bob is offline   Reply With Quote
Old 07-02-2006, 02:49 PM   #6
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

banned3800 is offline   Reply With Quote
Old 07-02-2006, 03:02 PM   #7
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

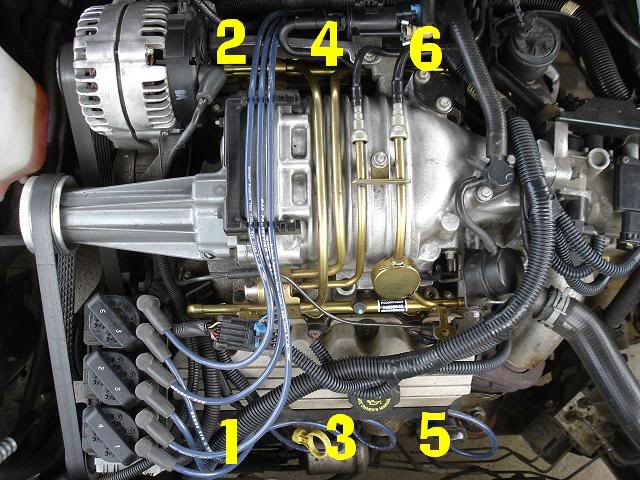

Name:  wires.jpg
Views: 0
Size:  76.9 KB
harofreak00 is offline   Reply With Quote
Old 07-02-2006, 03:55 PM   #8
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2006
Location: Northern Wisconsin
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
es_bob is on a distinguished road
Default

Ok, well I got everything bolted up (except for one of the screws I got was way too long) and well how come mine are in the wrong order? Like the 4 and the 1 on the bottom coil should be in each others places? So is 4 REALLY 1 and 1 is 4?

Thanks for all your help guys

es_bob is offline   Reply With Quote
Old 07-02-2006, 06:22 PM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by es_bob
Ok, well I got everything bolted up (except for one of the screws I got was way too long) and well how come mine are in the wrong order? Like the 4 and the 1 on the bottom coil should be in each others places? So is 4 REALLY 1 and 1 is 4?

Thanks for all your help guys

the number on the coil dosent matter...Just make sure that you have the plug wires on the right posts going to the correct cylinder
1993 SLE is offline   Reply With Quote
Old 07-02-2006, 07:22 PM   #10
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2006
Location: Northern Wisconsin
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
es_bob is on a distinguished road
Default

Got it, so 4 really is 1, and 1 really is 4.
