Default Coil Packs

I have seen many discussions about coil packs and which ones are bad and such...someone please inform me, if i were to replace my coil packs, what are a good kind to get, and ...is it a recommended replacement if the current packs are working just fine?
wjcollier07 is offline   Reply With Quote
Old 03-02-2006, 11:20 AM   #2
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Jr's3800 is the expert on this mod. He says you get a better, hotter spark that improves performance and economy with the coil pack from Series II engines. Most junkyards will sell you the ICM and coil pack for $45, but if I remember correctly you need to get a coil mounting plate from a specific model (L27?) to allow you to bolt the Series II coils and ICM onto your mounting bracket.

Jr's3800 can tell you for sure.

Here'* a link about Jr's3800 changing his: http://www.bonnevilleclub.com/forum/...ight=coil+swap
bill buttermore is offline   Reply With Quote
Old 03-02-2006, 11:37 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

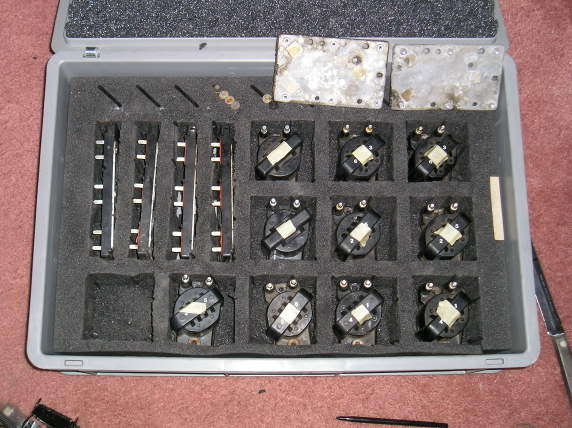

Yes..any 92-99 ICM and 3 coil packs will work. The mounting plate being spoken about is in the upper right of this picture. There are two of them sitting there.
Name:  p1010192.jpg
Views: 9
Size:  46.5 KB

They have three flat square head bolts and they bolt to the bracket that is bolted to the head of your car. The connector to the ICM hooks up directly, the three coil packs screw down perfectly and you are back up and running.
BillBoost37 is offline   Reply With Quote
Old 03-02-2006, 12:02 PM   #4
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: CT
Posts: 2,099
Thanks: 0
Thanked 1 Time in 1 Post
SSEBONNE4EVA is on a distinguished road
Default coils

92-95 is plug and play on your car.
SSEBONNE4EVA is offline   Reply With Quote
Old 03-02-2006, 02:09 PM   #5
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Your best bet is to find a 1993-1995 L27, this engine will have " 3800 Tuned Port Injection " on the injector sight sheild cover... This unit will be Plug and play...

Either that or you could have Bill Boost supply you with all of the correct parts for the swap as he does have them..

If there is anything you need to know, just ask thats what we are here for..

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-02-2006, 02:34 PM   #6
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default Re: Coil Packs

Quote:
Originally Posted by wjcollier07
...is it a recommended replacement if the current packs are working just fine?
That'* up to you... As said above, new, upgraded coil packs can give more spark. If you just want to test yours, here'* the TECHINFO article:

Ignition Coil Troubleshooting
lash is offline   Reply With Quote
Old 03-02-2006, 03:44 PM   #7
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

I have never replaced the coils on any of the Delco Type II systems I have adapted to...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-02-2006, 06:46 PM   #8
Senior Member
Posts like a Northstar

Join Date: Jul 2003
Location: GTA, ON, Canada
Posts: 594
Thanks: 0
Thanked 0 Times in 0 Posts
Mike G is on a distinguished road
Default Re: Coil Packs

Quote:
Originally Posted by wjcollier07
I have seen many discussions about coil packs and which ones are bad and such...someone please inform me, if i were to replace my coil packs, what are a good kind to get, and ...is it a recommended replacement if the current packs are working just fine?
Do it for sure- a great MOD indeed. 92-95 does work best. I have no regrets after doing the change.
Mike G is offline   Reply With Quote
Old 03-02-2006, 07:05 PM   #9
Junior Member
Thread Starter

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

so 92-95 works on my '89?
wjcollier07 is offline   Reply With Quote
Old 03-02-2006, 07:24 PM   #10
Senior Member
Posts like a Northstar

Join Date: Jul 2003
Location: GTA, ON, Canada
Posts: 594
Thanks: 0
Thanked 0 Times in 0 Posts
Mike G is on a distinguished road
Default

It will for sure. My coil came off a 93 Buick Regal actually, but I had to return one of the coils cause it was bad, but changed it and has worked great ever since. Had this MOD for about a month now, but I keep the old one in the trunk- just in case.
It makes the engine look really nice too.
Mike G is offline   Reply With Quote
