Default transmission swap

I have 2002 pontiac bonneville and my transmission going out and i have a transmission out of 2000 buick regal laying around. I was wondering if it was compatible. they both have the same mounting points. it had the same motor i have already used it in my bonneville.
pepper65251 is offline   Reply With Quote
Old 10-03-2016, 04:29 PM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Elmira, NY
Posts: 15,303
Thanked 895 Times in 718 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

They could have different final drive ratios. Solenoids might be different in them. Speed sensor could be different also. You'd be surprised as what might be different even between just a couple of years.

Do you have access to both RPO stickers(white sticker with a bunch of numbers on it in glove box)
Mike is offline   Reply With Quote
Old 10-03-2016, 05:29 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2016
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
pepper65251 is on a distinguished road
Default

i do not have the regal anymore. anything on the transmission that might help?
pepper65251 is offline   Reply With Quote
Old 10-03-2016, 05:36 PM   #4
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Elmira, NY
Posts: 15,303
Thanked 895 Times in 718 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

The data plate tag if its still intact.
Mike is offline   Reply With Quote
Old 10-04-2016, 07:44 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2016
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
pepper65251 is on a distinguished road
Default



this is the only one i can find
Attached Thumbnails
transmission swap-80-20160818_182636_ebadaaea3f4f80ce2bea8f41ba04e3dce9ee34b7.jpg
pepper65251 is offline   Reply With Quote
Old 10-04-2016, 08:21 PM   #6
Junior Member
Thread Starter

Join Date: Oct 2016
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
pepper65251 is on a distinguished road
Default

did a little research myself and i think the buick is a 3.05 and my bonneville is a 2.93
pepper65251 is offline   Reply With Quote
Old 10-04-2016, 09:15 PM   #7
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Elmira, NY
Posts: 15,303
Thanked 895 Times in 718 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Usually its the other way around. Bonneville'* tend to have the taller ratio for sporty accelerations. Hence the gramma car of Buicks.
Mike is offline   Reply With Quote
Old 10-04-2016, 09:47 PM   #8
Junior Member
Thread Starter

Join Date: Oct 2016
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
pepper65251 is on a distinguished road
Default

Attached Thumbnails
transmission swap-80-02_bonneville_c380351e63d52bf07addc9a37cf1420112aa6f9c.jpg
pepper65251 is offline   Reply With Quote
Old 10-04-2016, 09:54 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2016
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
pepper65251 is on a distinguished road
Default

Attached Thumbnails
transmission swap-80-2000_9968a4135fa4b107db0679c59aa86ca45f183bb3.png
pepper65251 is offline   Reply With Quote
Old 10-04-2016, 10:05 PM   #10
Junior Member
Thread Starter

Join Date: Oct 2016
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
pepper65251 is on a distinguished road
Default

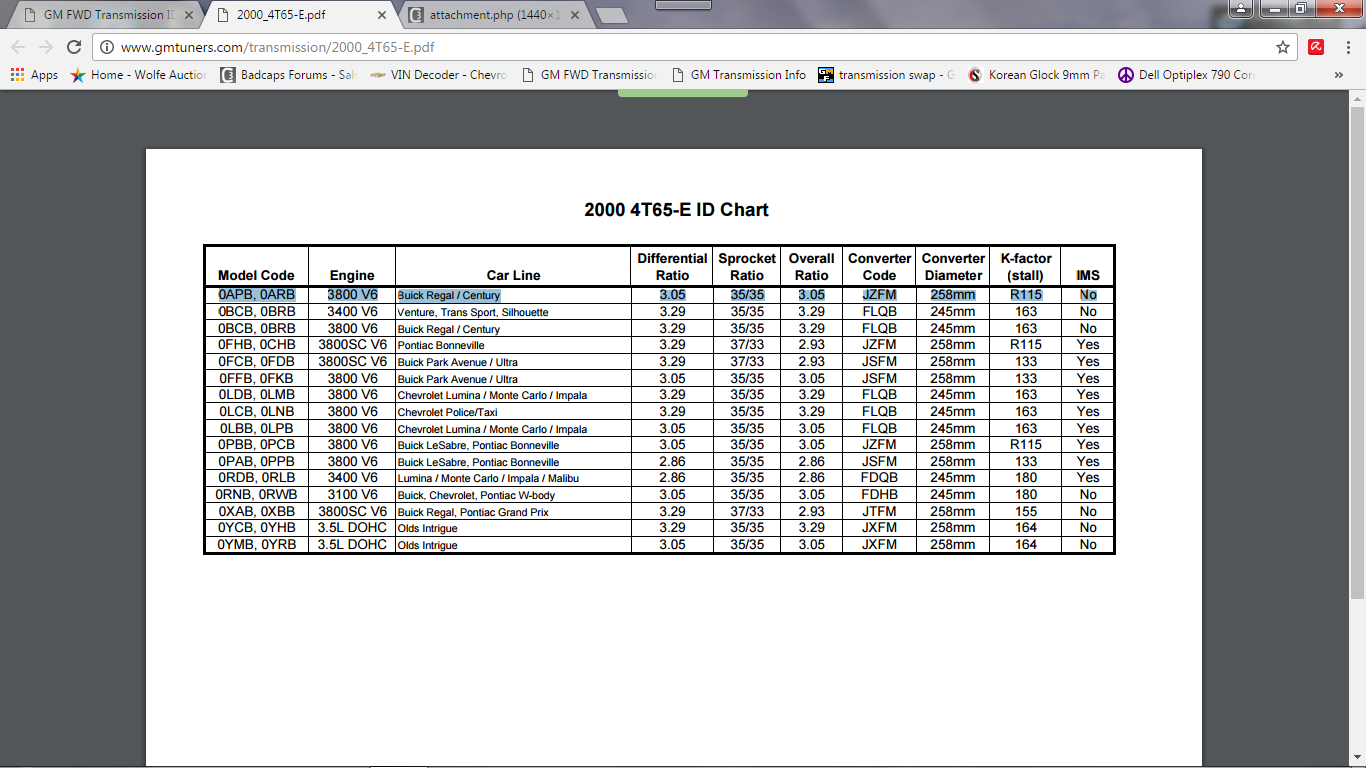

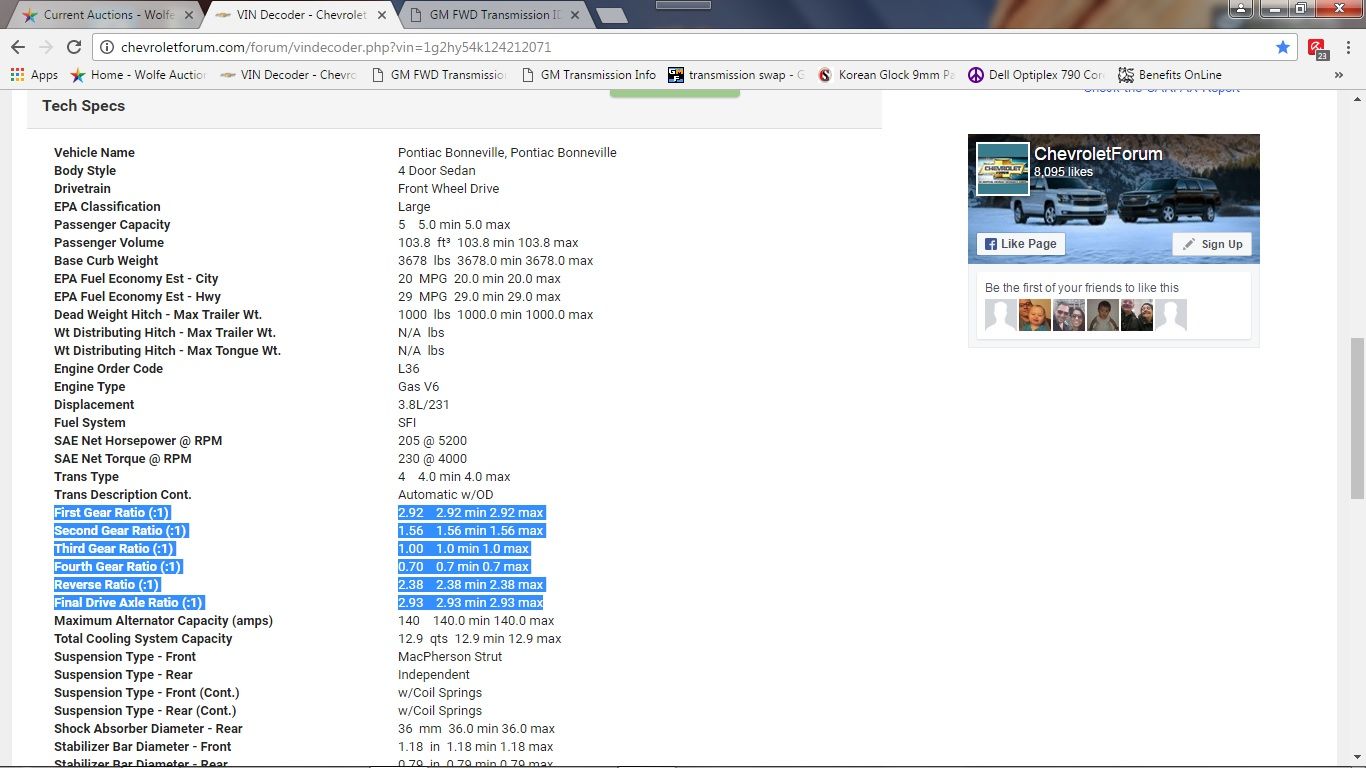

the first pic is by code and the second one by vin decode i am not sure if its 100% correct
pepper65251 is offline   Reply With Quote
