INTENSE™ Level 1 L36/L26 Performance Package Install w/Pics

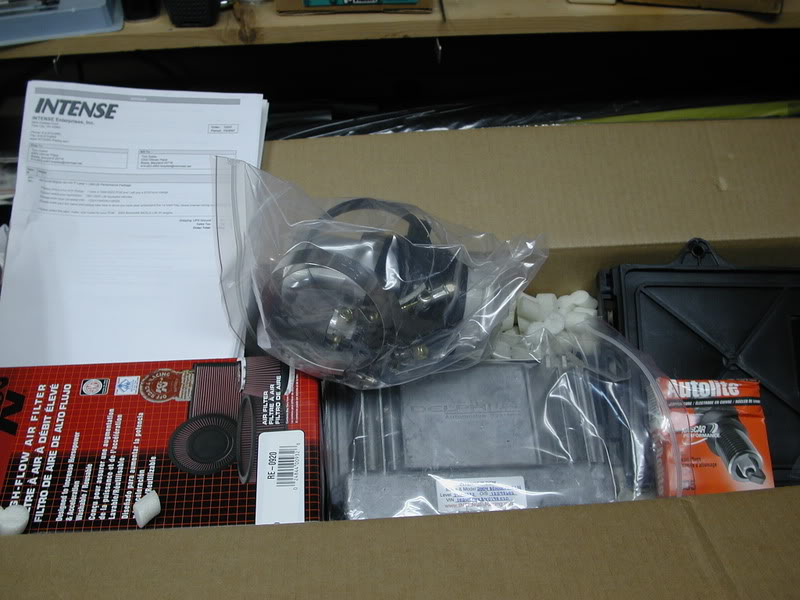

When I arrived home on Tuesday from a business trip to Alabama this was waiting for me.

Attachment 44959

Attachment 44960

Started the install on Saturday morning by drilling the thermostat.

Attachment 44961

I as also able to install the sparkplugs on Saturday morning. I have to tell you the plugs were a PITA to install. Removing the spark plug wires was the pits. My left forearm is still tender from removing the rear plugs.

We had family activities for the rest of the day on Saturday so I had to wait till after church on Sunday to complete the install.

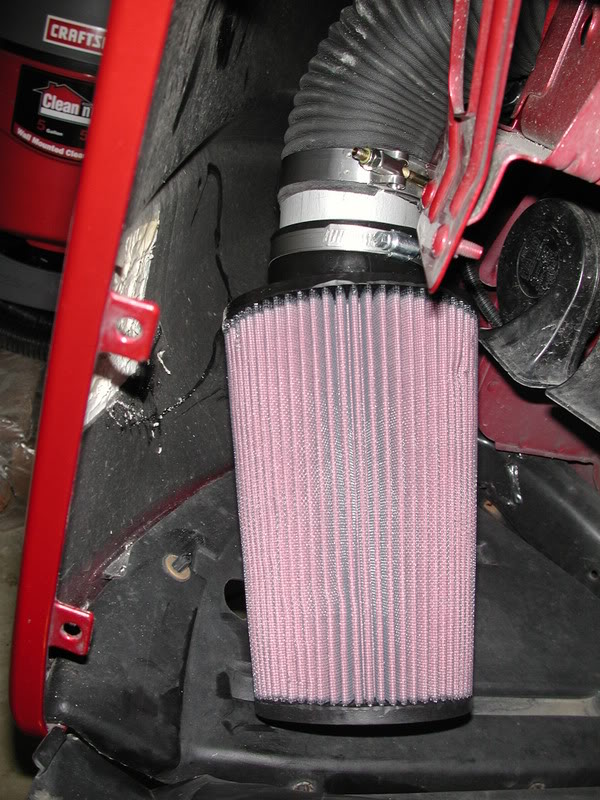

Started with installing the fenderwell intake. The filter is huge but it does fit. Removing the fender liner was a snap.

Attachment 44962

Attachment 44963

Hardest part of this portion of the install is putting the metal sleeve inside of the fenderwell tubing.

Next was mounting the PCM to the inside of the fender. I marked off the bracket and used an L bracket that I had lying around to mount on the horizontal surface.

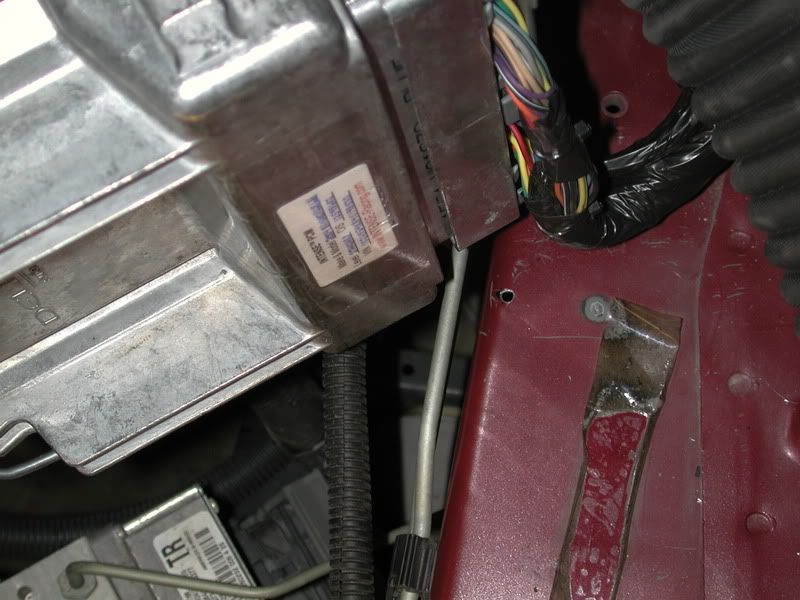

Here is the hole I drilled on the horizontal surface.

Attachment 44964

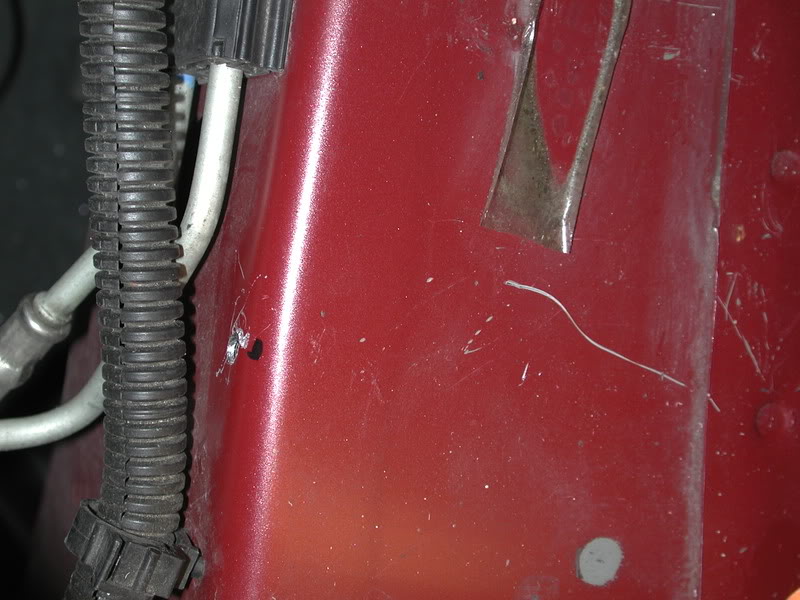

Next is the hole on the vertical surface.

Attachment 44965

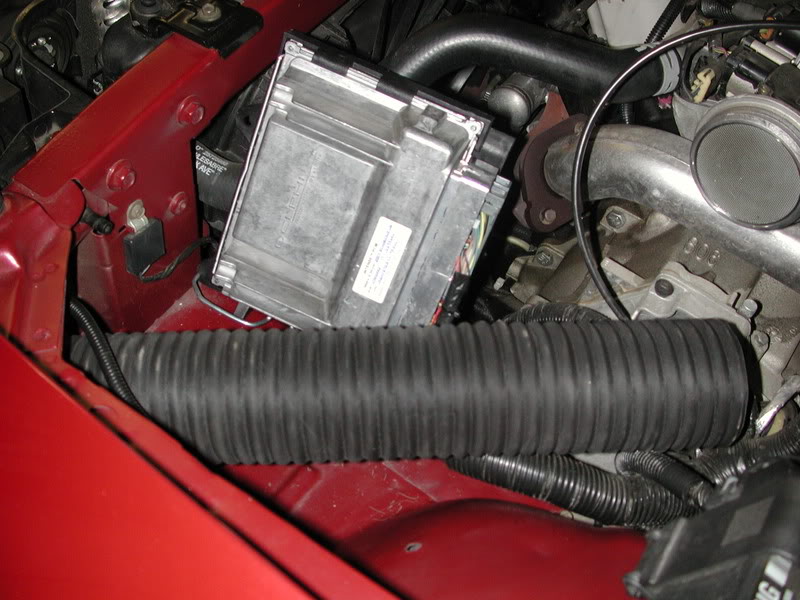

Here is a pic with the FWI connected and the PCM mounted.

Attachment 44966

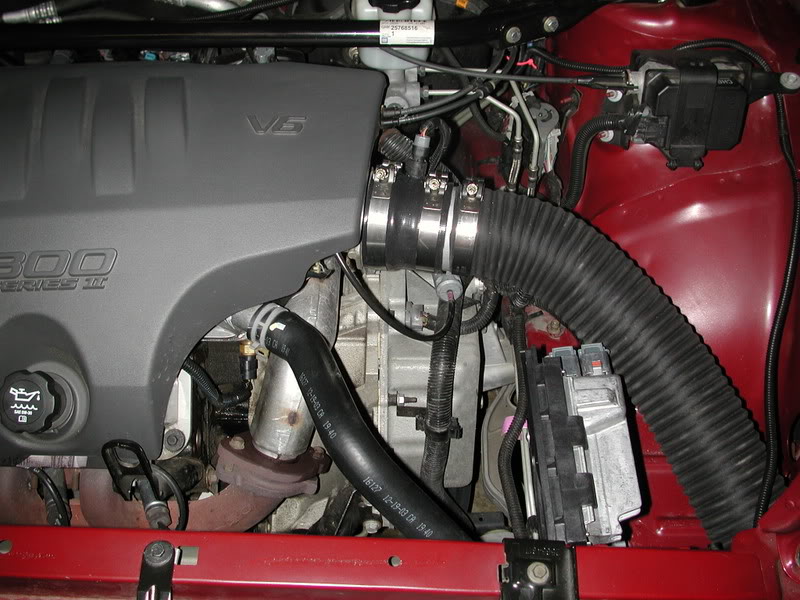

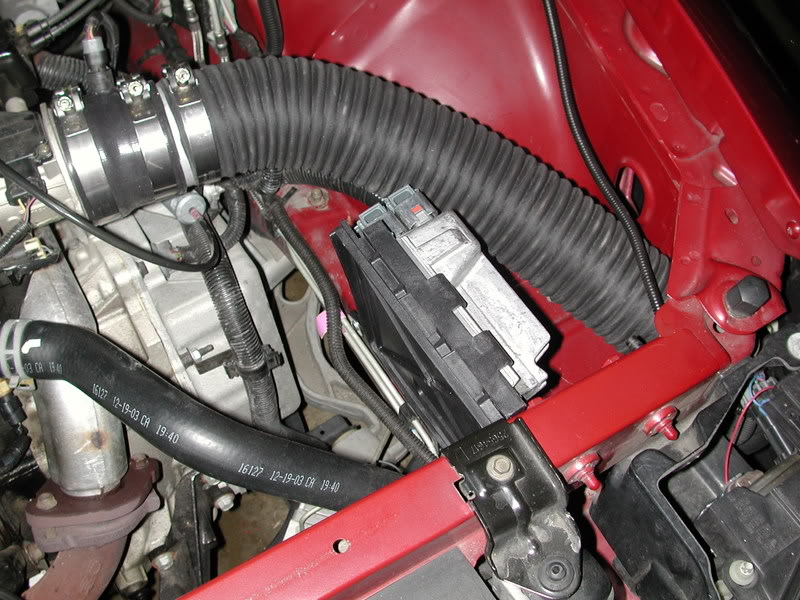

Here is the finished install.

Attachment 44967

Things to watch out for when installing the upgrade:
1. Place large pan under engine to catch coolant when replacing the thermostat.
2. if you have not replaced your plugs before the spark plug wires are really hard to remove. Plan on taking longer than expected.
3. The one clamp on the rubber piece that hold the IAT sensor is hard to tighten. I had to use channel lock pliers to bring the bolt past the clamp edge so I could install the lock nut.
4. I tried to do a security case learn but it turns out if the car starts up you are good to go for this task.
5. You will still need to do a CASE learn and mine will happen tomorrow morning.

Overall this is an easy upgrade to install and a big bang for the buck. The car has a lot more get up and go than before. The transmission shifts are stronger and the low end torque brings the car to life. The exhaust has always sounded nice but now I can really hear the intake as well. If you were thinking about starting to mod your car this package provides a solid base when you want to go to the next level.

I will report back tomorrow after the CASE learn. I did talk to Todd today about the Security learn and the CASE learn.

Thanks to all who helped me understand what I need to do.

A big two thumbs up to Intense for this mod.

Very cool. Great pics.
Wish they had something like this for a 1995....

That looks great Tom 8)

I can't wait to see it.... to bad you aren't bringing that out here. Looks like I will have to wait till next year to see it. :evil:

Re: INTENSE™ Level 1 L36/L26 Performance Package Install w/


For future reference, it's much easier/cleaner to syphon out about 1/3 gallon from the radiator fill hole into an old milk jug.

Congrats on the install by the way!

Re: INTENSE™ Level 1 L36/L26 Performance Package Install w/


Very good point and if i have to do similar work I will. I would also add that I am trying to do most of the work on my cars myself. When I was younger I did a lot of my own maintenance but as I aged and with work pressures I found it easier to take my vehicles to a shop. Now I have the time so I started to do the work myself. It is not always easy but I find that the work is enjoyable.

Ryan:
I will have the Bonneville with me on our Michigan vacation. ;)

oooohhhhhhhhh 8)

Tom..looks great..

A couple of pointers though. Your MAF is in your TB.. that's the IAT sensor ;) The clamps need to be reviewed to ensure you put the right one in the right places. I believe the one you are talking about is larger than the other three.

Doah I am learning. The larger clamp goes on the throttle body end and that one was easy. The other one was the one that I had trouble with. It was not a big deal but I thought I should mention it.

I had the CASE learn completed this morning and the car is running really well. This is a nice modification. The car really comes to life from a standing start and when punching it at 25mph. Too much traffic this morning to punch it when rolling at 55 or 60mph.

Gas mileage seems to be better. i will know for sure on the Michigan trip. ;)

keep us posted on the feeling and result once the computer as learn youre going to love the power

Love it already. Nice ride home. There is a lot of torque in these engines.
