Default THE FIX. Saving a Canadian car... (update pg2)

well most of you know about this..
http://www.bonnevilleclub.com/forum/...&highlight=fun

well the FIX has started. it started with pulling the subframe to get clear access to everything

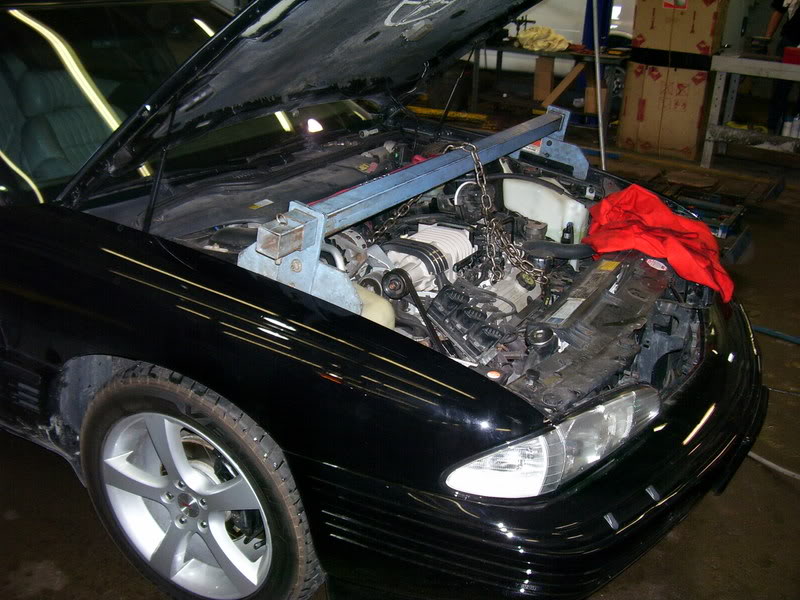

Bracing the motor
Name:  framerepair001.jpg
Views: 1
Size:  99.1 KB

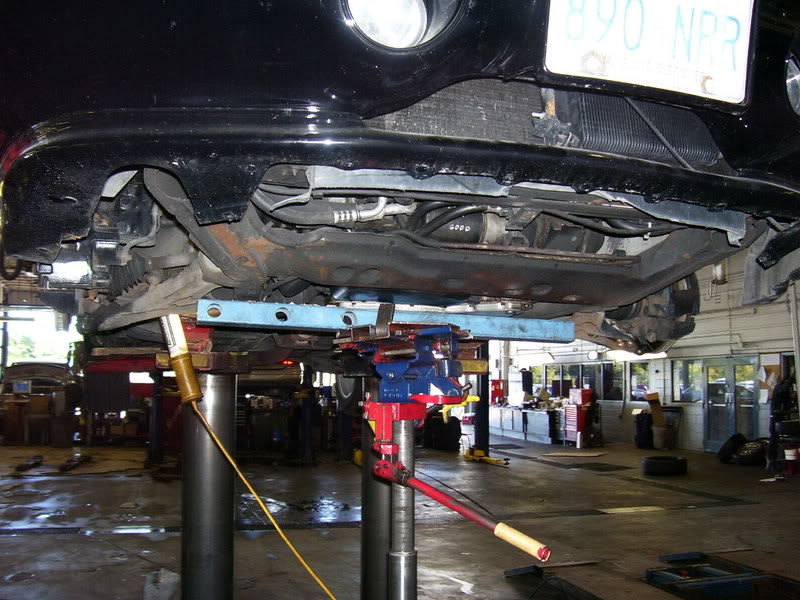

supporting the frame to be remove
Name:  framerepair003.jpg
Views: 1
Size:  107.0 KB

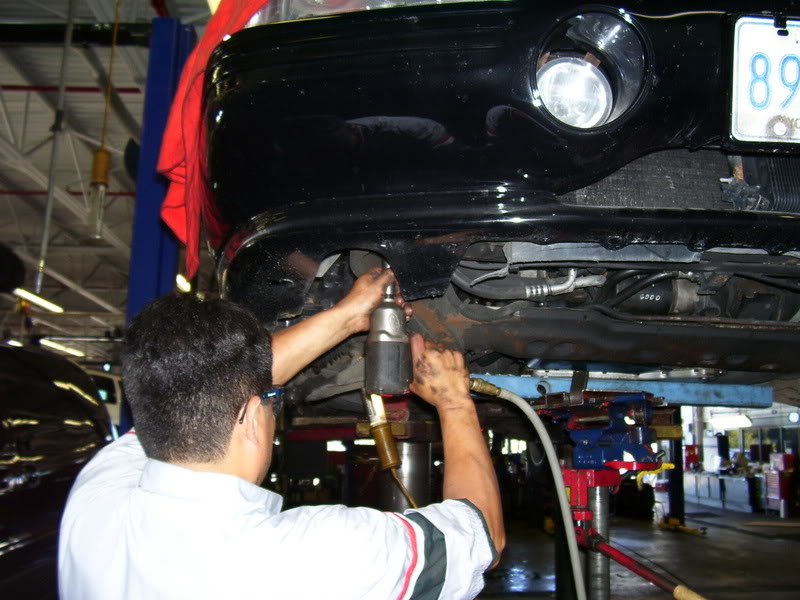

Name:  framerepair004.jpg
Views: 1
Size:  91.2 KB

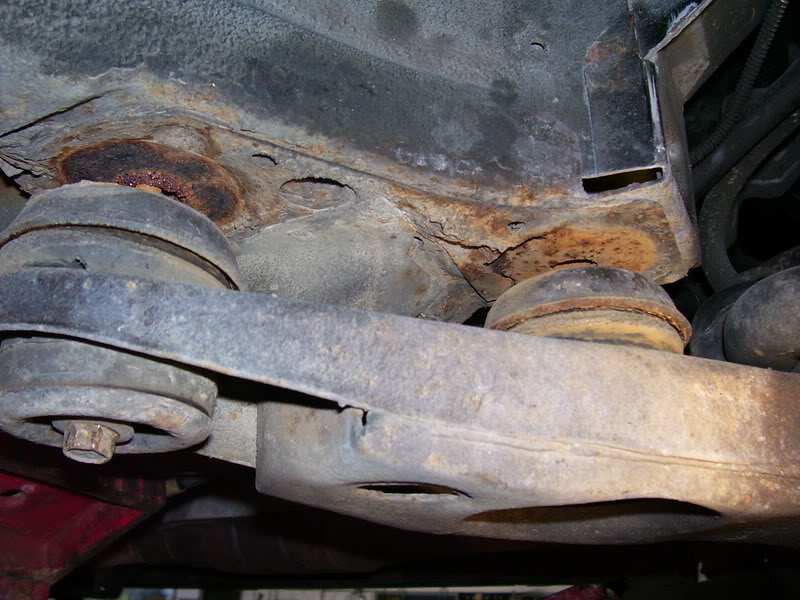

Name:  framerepair005.jpg
Views: 2
Size:  98.6 KB

Veiw of the full damage... there was a surprise awaiting me on the other side..

Other side was cracking too
Name:  framerepair010.jpg
Views: 0
Size:  59.9 KB
My buddy tony doing the welding
Name:  framerepair020.jpg
Views: 0
Size:  113.1 KB
welded the crack closed
Name:  framerepair021.jpg
Views: 0
Size:  95.5 KB
then replaced the factory plating
Name:  framerepair026.jpg
Views: 0
Size:  102.7 KB

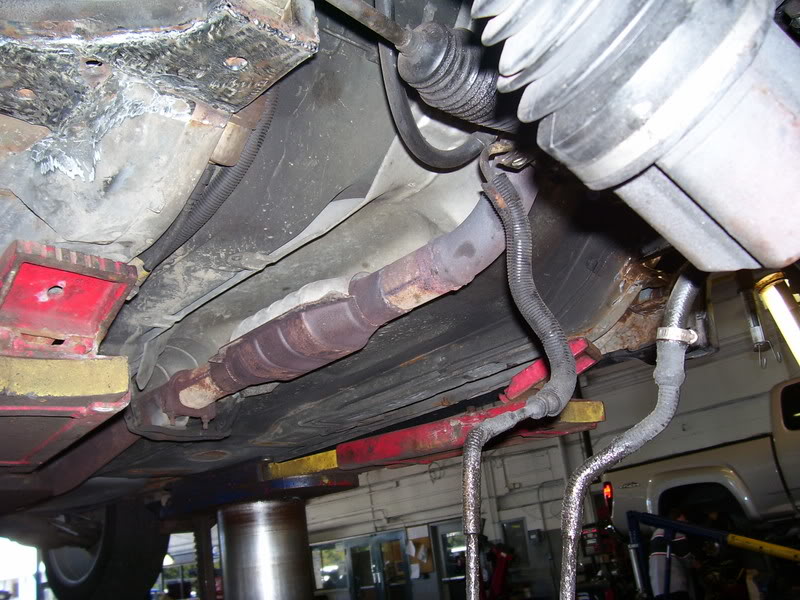

All clean and ready for final work
Name:  framerepair027.jpg
Views: 0
Size:  110.2 KB

the other side...
I cut out all the thin rusted metal
Name:  framerepair028.jpg
Views: 0
Size:  106.9 KB

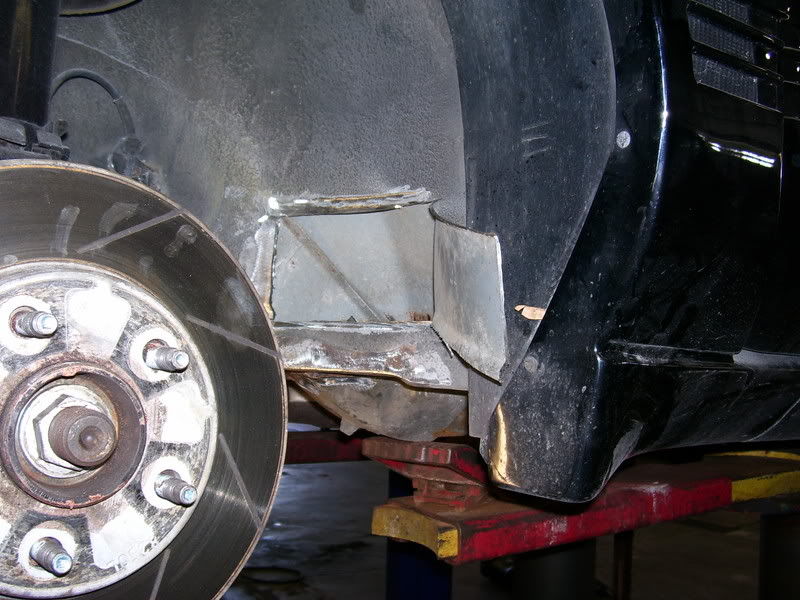

opened up an access hole in the wheel well to re attach the subframe later (bolt doesnt hold itself in place anymore)
Name:  framerepair029.jpg
Views: 0
Size:  102.3 KB
Name:  framerepair030.jpg
Views: 0
Size:  105.8 KB

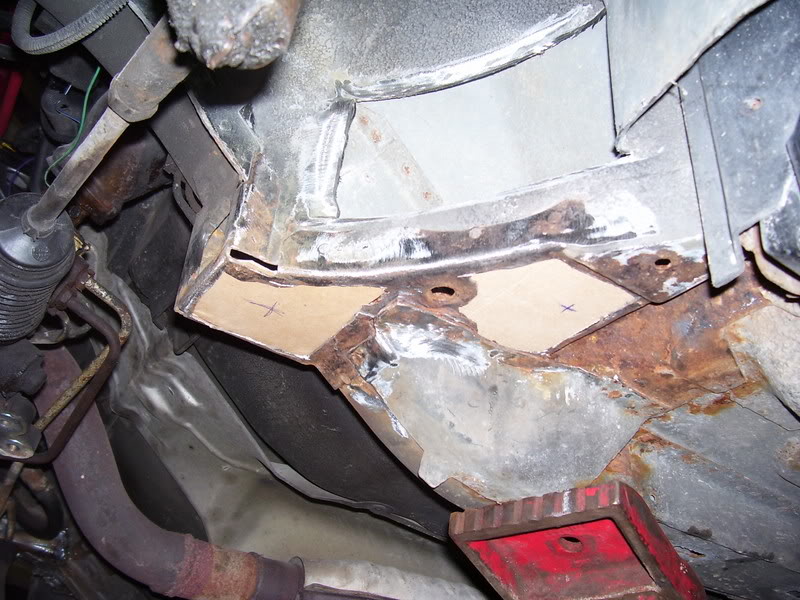

then I made templets to trace out onto the 1/4" plate steel thats coming for this repair
Name:  framerepair037.jpg
Views: 0
Size:  110.0 KB


This is how far I am now, im waiting on the steel now, hopfully it will be fixed within the next two days
Peterg22000 is offline   Reply With Quote
Old 09-05-2007, 12:47 AM   #2
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

Good to see Pete
ReallyAGXP is offline   Reply With Quote
Old 09-05-2007, 12:49 AM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

lots of work....but looks like its coming along

Peter....WTH do you have a FRAM filter on???
1993 SLE is offline   Reply With Quote
Old 09-05-2007, 12:53 AM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Peter....WTH do you have a FRAM filter on???

Because I had 4 before I knew they where not the best. I'll use them up, then go K&N
Peterg22000 is offline   Reply With Quote
Old 09-05-2007, 01:03 AM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

Man, cars rust up there worse than michigan

That really sucks considering you put all the effort in the paint job...oh well. the fix looks good so far.
Hans is offline   Reply With Quote
Old 09-05-2007, 02:31 AM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Pete, the repairs are looking good, and VERY "easy" for the shop to do. I'm fully confident that mine can be fixed very easily now.

PM sent.
bonnie94ssei is offline   Reply With Quote
Old 09-05-2007, 02:36 AM   #7
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

Lookin good
McGrath is offline   Reply With Quote
Old 09-05-2007, 03:25 AM   #8
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

Wow, thats excellent.

you gonna coat it inside and out with rust preventative? seems like the perfect opportunity.
wjcollier07 is offline   Reply With Quote
Old 09-05-2007, 04:22 AM   #9
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

That really is a great welding job. If you rustproof, what are you going to use?
radomirthegreat is offline   Reply With Quote
Old 09-05-2007, 08:39 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Looks like a good amount of work Pete. You didn't mention pulling the trans to get better access to the area. At least it looks like you pulled it.
