This thread is a write up to help you install LED lights into your trunk mounted center tail light reflector, if you have any questions please feel free to post them below or PM me

you will need the following:

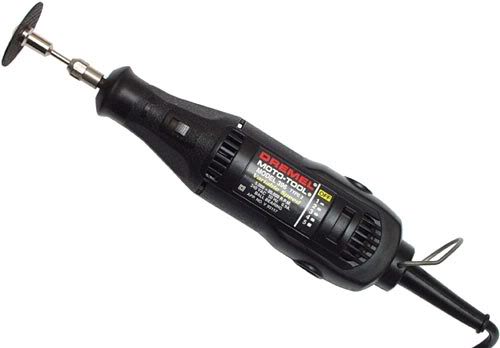

A dremel (I recommend the one with adjustable speed)
Attachment 26519

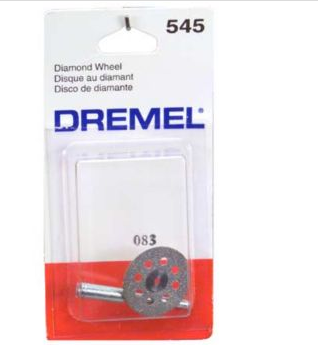

A dremel cutting disk (diamond wheel was the best I ever used)
Attachment 26520

Glue/sealant (make sure its water and weather proof)
I used goop glue and sealant... so far so good... the thicker the glue the better I’d say. Reason behind that the glue won’t leak as bad inside (had that problem before with clearing my GTP's tail lights)
Attachment 26521

LED strips
I used the Catera tail light but after taking it apart I realized that it wasn’t a must.

Attachment 26522

Attachment 26523

Attachment 26524

any good strong LED strips will work just fine.. something like this would work even better than the Catera lights, reason is the thickness of the strips
I wish I knew that all I had to use was LED strips I would have bought this over the Catera anytime and it would have made it a lot easier
http://www.oznium.com/led-flex-strips

MAKE SURE YOU WEAR SAFETY GLASSES WHILE CUTTING THE TAIL LIGHT.

Get ready and the fun begins here

First you start with removing the carpet in the back of the trunk lid, then you would have to remove 4 nuts using a 10mm socket, this will set the bottom of the center tail piece free. From there you have to remove the top right and left clips... and you have to do is pull. Most likely you will break the clips... and good luck finding replacements because most GM dealers will tell you that you must buy the full trunk piece to replace them... idiots... I’m still looking for replacements, I think I got somewhere... I’ll keep this thread updated... I have a part number, just waiting for my order to come in to confirm

Top right and left are the clips that you even know they are there, trunk is sealed at the back were they sit.
Bottom 4 holes are the nuts, 10mm I believe
Attachment 26525

Then
Using the Catera light all you have to do is remove the LED strips inside... there should be a total of four you will only need 3 of them.

Attachment 26526

Picture above shows all 4 led strips on top of the Bonneville center piece. You can tell they are a little too long for the bonnie, so removing one will fit just perfect

Attachment 26527

Picture above shows the LEDs on the outside just to give me an idea what it looks like.
Oh yeah... by the way… you might wanna test and make sure all LEDs are working… because it would really really suck doing all the work and finding out you have some LEDs that don’t work

Then the hard/fun part begins... this job will determine how easy you will finish at the end.. I set the dremel on low speed and I made a line all across the back... I didn’t cut it all the way in,, because of the high RPM if you start cutting straight you will end up with melting plastic all around, so you will end up with a huge gap instead of a small fine crack.

so after marking it all the way around the top and sides set the dremel to a high speed and start cutting all the way in.. Again don’t keep the dremel on the same spot for too long… it will only make the opening wider... which you wanna avoid to make it easier to close

Attachment 26528

Do exact same to the center piece were the key cylinder is

Attachment 26529

From there you have some play... it would be nice to have some help here… someone can open the plastic for you while you insert the LED strips

Attachment 26530

Attachment 26531

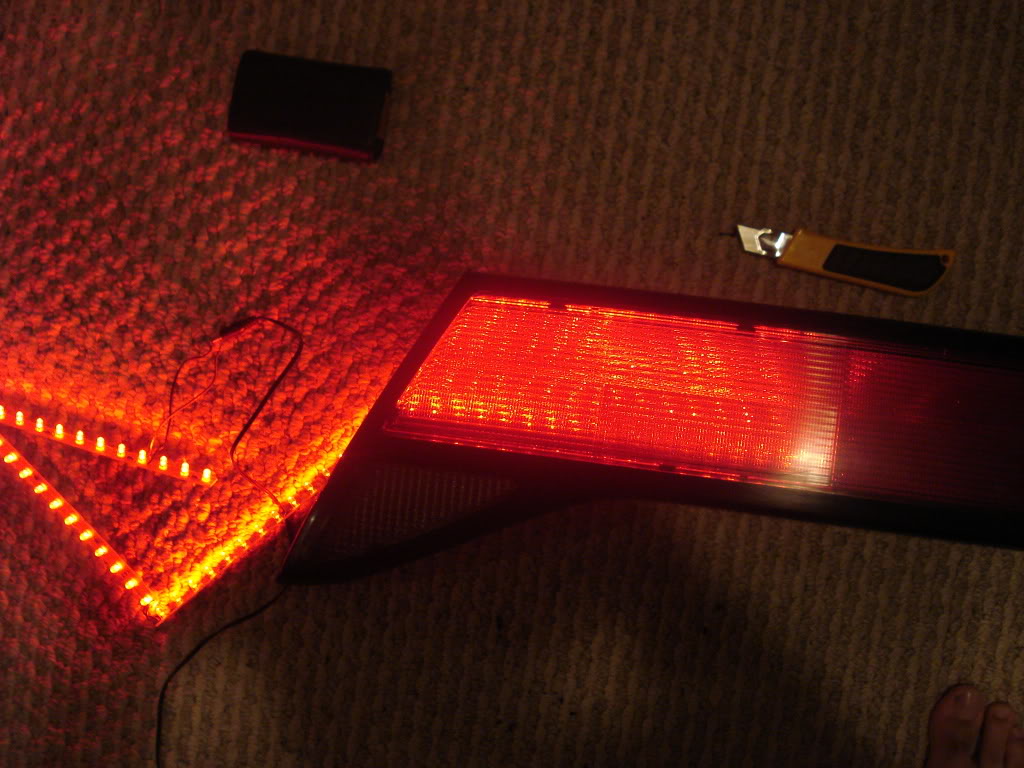

Little testing
Attachment 26532

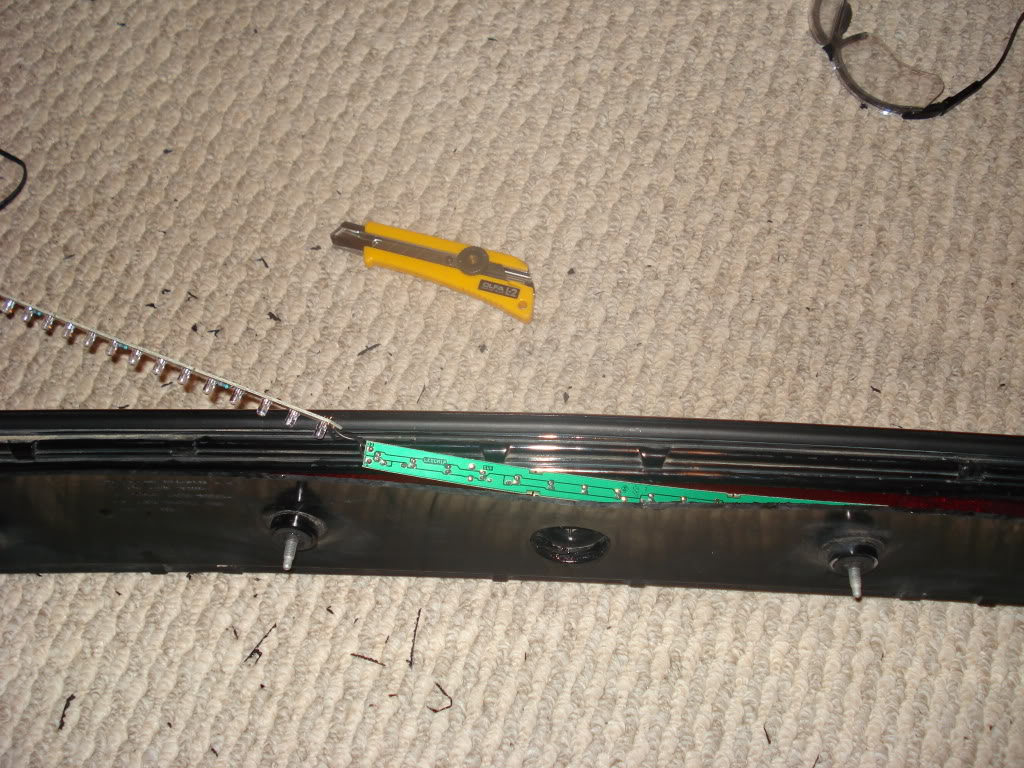

As you can see… I didn’t use anything to mount the LED because they were wide I just insert them there and by force they stayed at the top.

Attachment 26533

Keep working your way all around... make sure the LEDs stay at the top… if you use the Catera led lights make sure you're super careful... since they are not so flexible and they are soldered on a circuit board, you can easily break the solder and you won’t even notice

Close to be done... all the LEDs are in and set at the top of the center tail piece... make sure you test them and make sure they are all working and it looks decent

Attachment 26534

Then turn it and look at the front :D

Attachment 26535

It might look like there’s a pattern but there isn’t any… it’s just that I can’t use a camera with the proper setting... god bless auto modes

So now you're pretty much done...all you have to do is seal it...

Don’t go super crazy on sealing it, remember you need to throw this back at the trunk... too much glue might leave a gap so use it wisely...

The way I did I used goop glue, I put a little on my finger tip and wipe it across the gap to avoid big amounts of glue and also to avoid glue leaking into the light.

After putting a fine layer of glue, wait about 30 minutes for it to dry a little bit then put as much as you want... nice thick layer… and make sure you spread it around good... so water doesn’t leak in... I put total of 4 fine layers of glue with about 4 hours of wait between each layer... and ever since then I never saw any water or condensation... and where I live... If I didn’t do it right... I would see it right away…

After it dries… you're all done and ready to throw it back on the car… you can run the wires from the trunk lid into the black hose that holds the wires for the trunk release latch… run it through all the way down, then keep it running down to right below the CD changer in the trunk.

Now decide when you want it to light up... I have it lighting up with the rear side markers...
That’s one option… another is to light up when you hit the brakes... that’s totally up to you

Wires were tapped in the trunk under the CD changer... they were tapped on the purple wire for the 194 bulb outside... which will keep them running with your parking lights, if you want it to flash with your brakes… check which wire goes into the 3157 bulbs in the tails... there are three wires, black for ground, purple for parking lights, and the last one for the brake light… can’t remember which color.. I THINK white

After its all wires up set your clips back in tighten the screws and start your car!

Attachment 26536

As I mentioned before... it might seem like there is a pattern... but it’s not there… it’s just the way the light plays with the reflectors

http://i338.photobucket.com/albums/n...h_MOV01883.jpg

http://i338.photobucket.com/albums/n...h_MOV01885.jpg

Now go take it for a cruise
