Default Installing a shift kit. 4t65-hd transmission

Time to install that street/strip shift kit? Feeling a little stressed about it? Well, don't. It'* a easy job, just make sure you read and follow the directions very closely. Read, look, read again. Check it a third time just to make sure.

You will need a inch pound torque wrench.

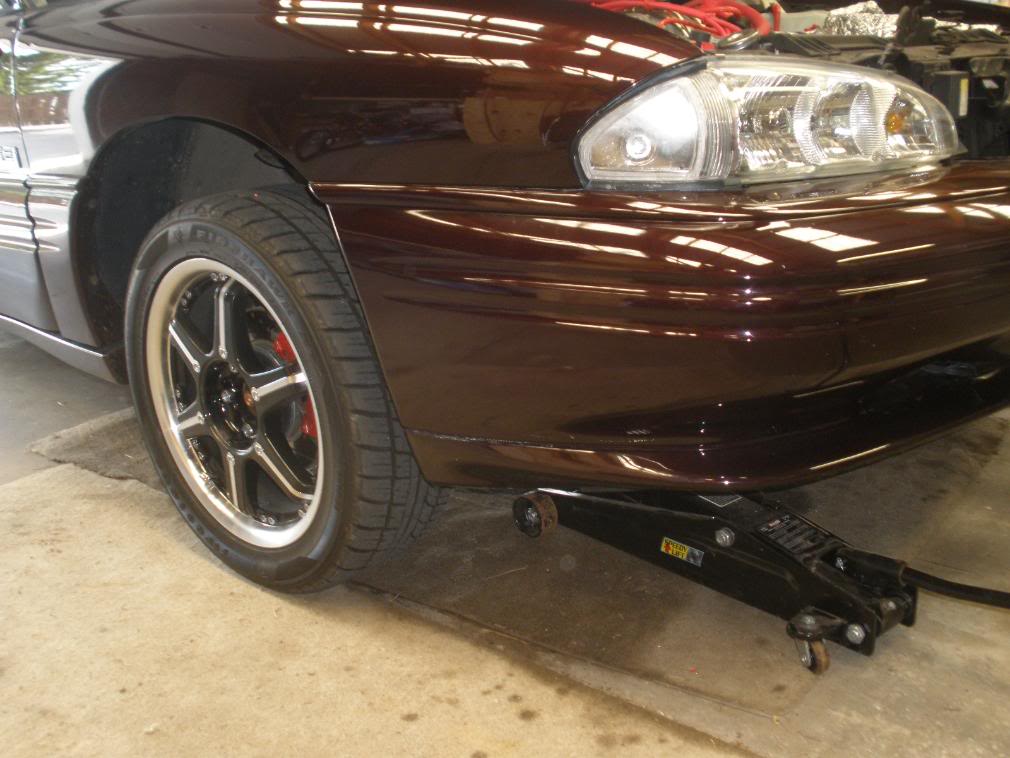

Jack up the front of your car and use jack stands.
Name:  P9060001.jpg
Views: 67
Size:  91.7 KB

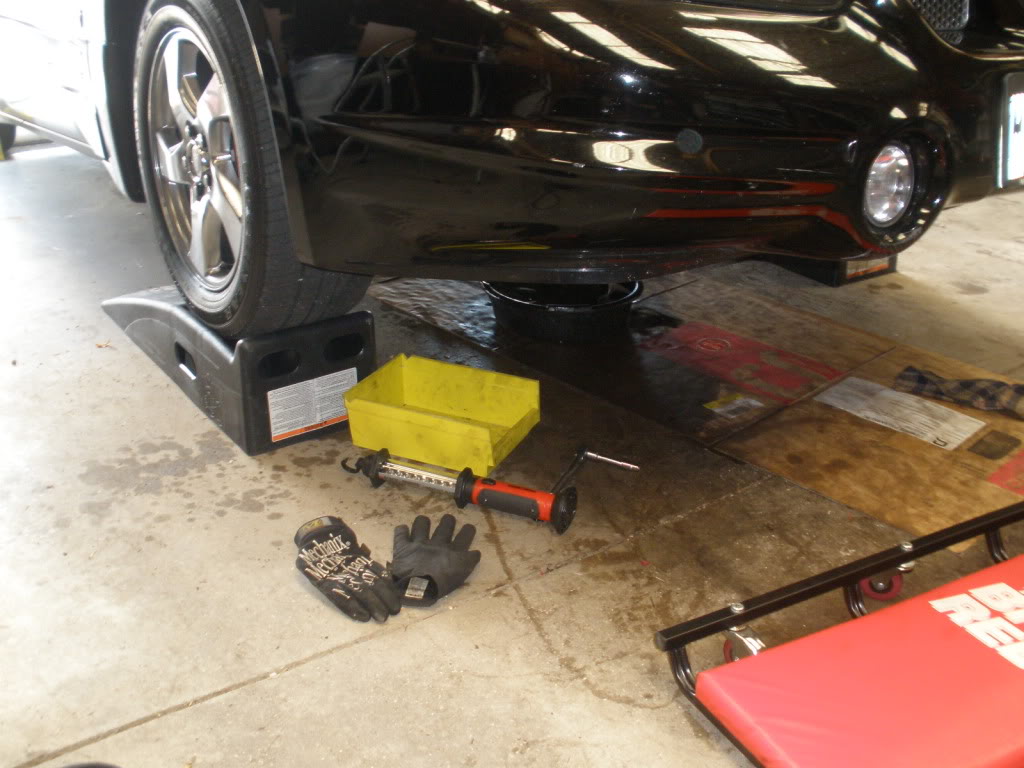

Or put it up on ramps.
Name:  PA210006.jpg
Views: 70
Size:  109.8 KB

Get everything laid out, fluid, the kit, even a extra gasket. Mine had a reusable gasket so I didn't need one.
Name:  PB080001.jpg
Views: 60
Size:  87.3 KB

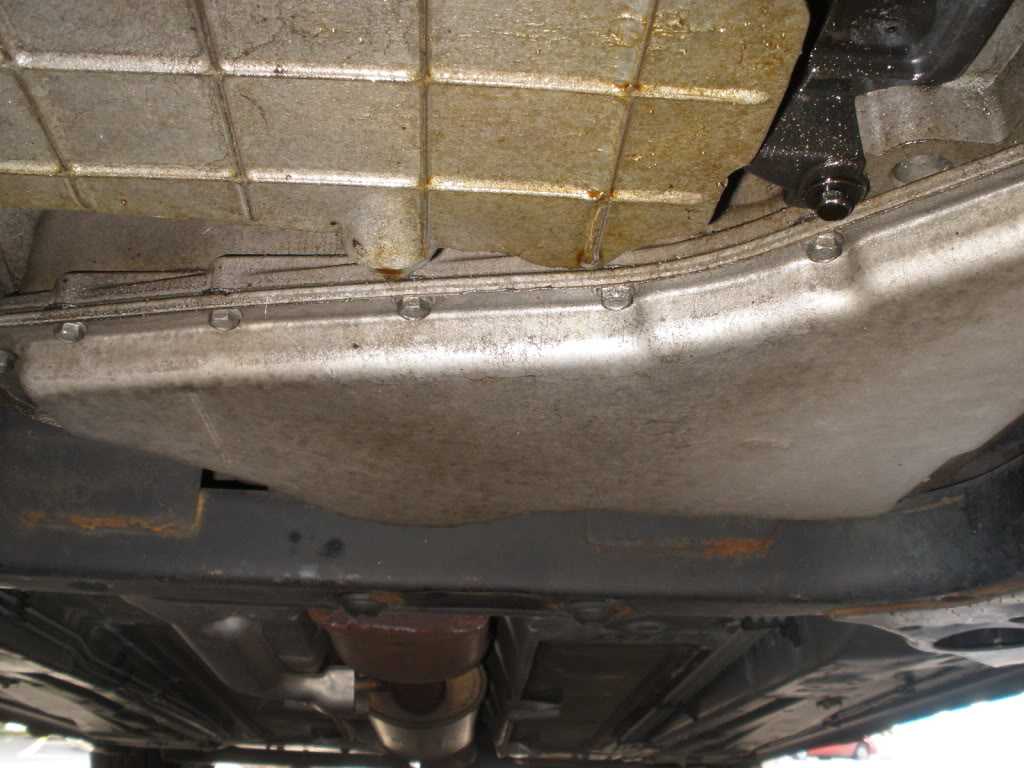

Locate your tranny pan.
Name:  PA210001.jpg
Views: 67
Size:  128.4 KB

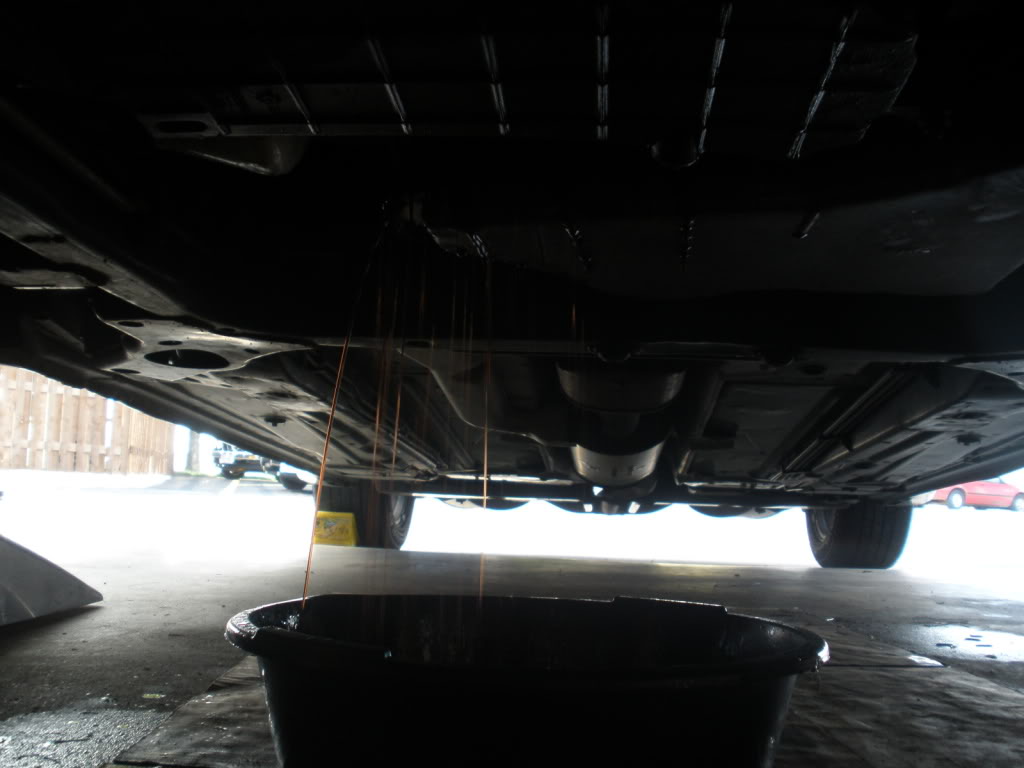

It'* going to be a big mess. Get a large pan to catch the fluid, a few extras are a good idea. Crack the bolts on the pan loose. Loosen the back bolts a bit more so it will drain from that area. When the fluid stops you can start to remove all the bolts.
Name:  PA210002.jpg
Views: 66
Size:  117.9 KB
Name:  PA210004.jpg
Views: 62
Size:  65.6 KB

Remove the pan and set it aside
Name:  PB080002.jpg
Views: 60
Size:  76.6 KB

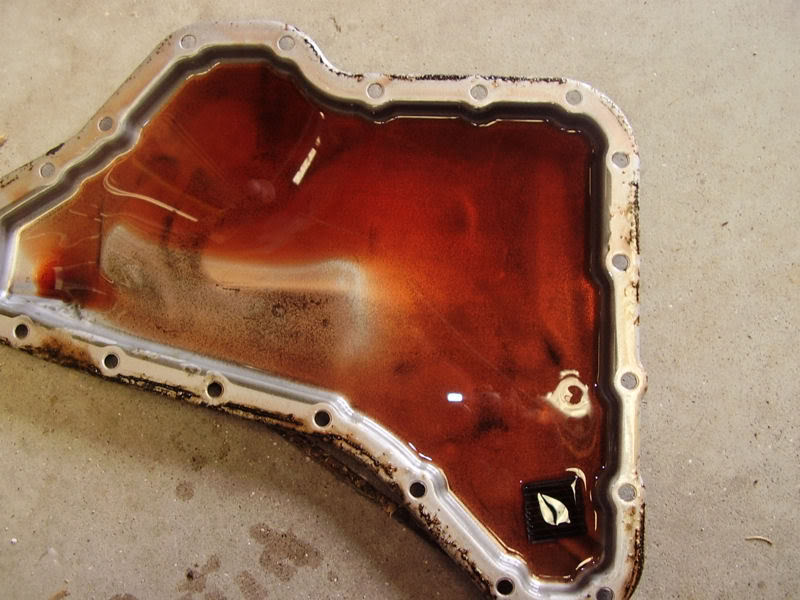

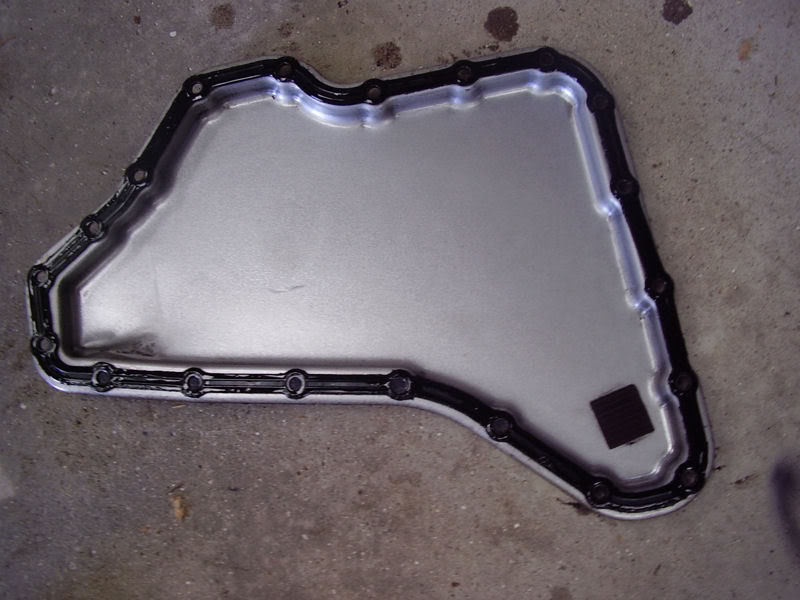

Wipe it down good. Check the magnet for any metal shavings. If you see a lot of shavings, I suggest not installing the kit at this time.
Name:  PB080004.jpg
Views: 64
Size:  65.2 KB

Back under the car you will see the shift modulator in the tranny
Name:  PA210007.jpg
Views: 75
Size:  166.1 KB

Remove the 4 bolts holding it in the tranny. One is on the left side and the other three are along the right side

Clean everything up and inspect for damage or wear. Then place on a clean work area and remove the last of the bolts holding the modulator together and open it up
Name:  PA210008.jpg
Views: 72
Size:  139.5 KB

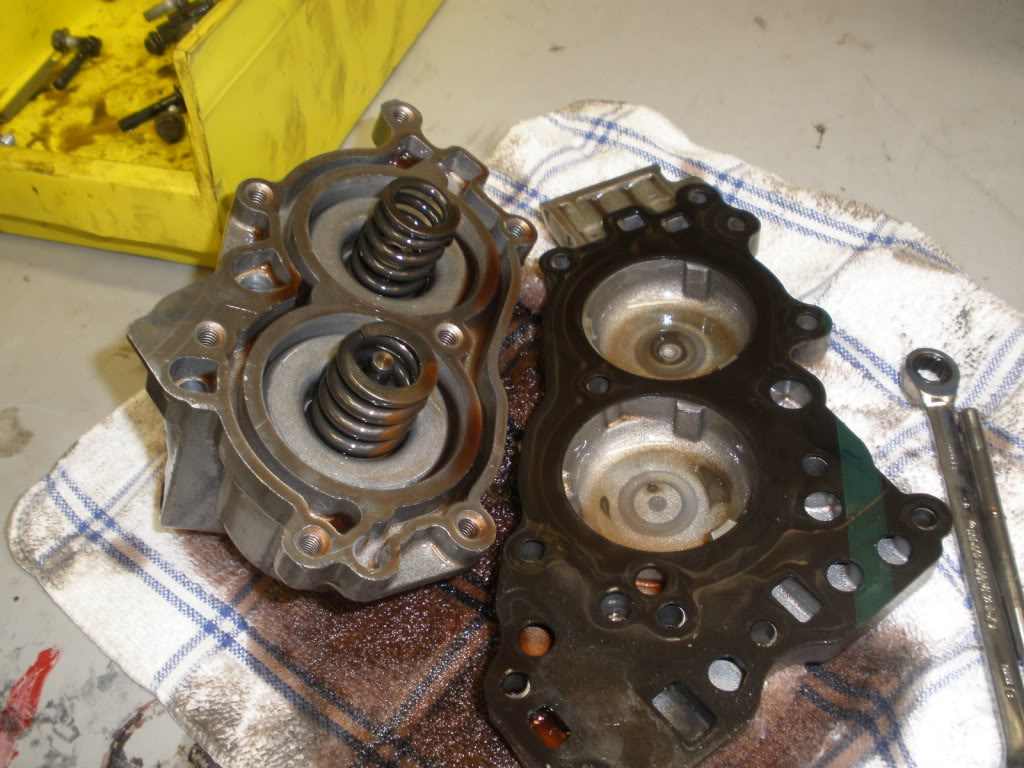

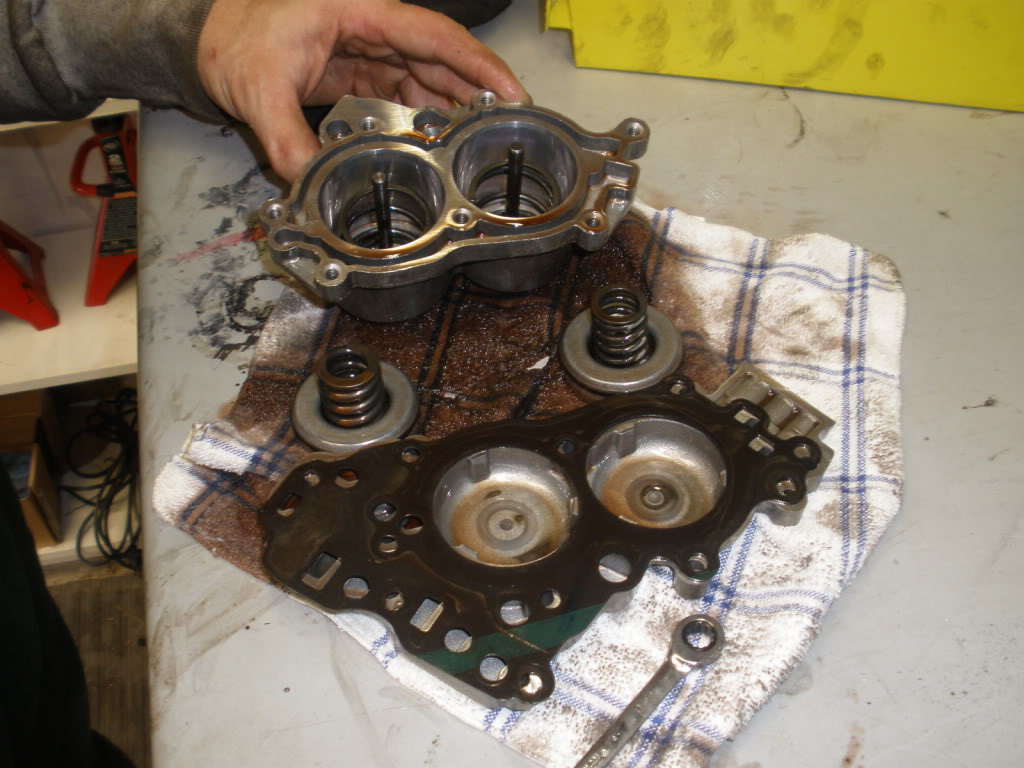

Remove the pistons, make sure they go back in the same cylinder. then place the 3/4" spacer on the bottom of both cylinders.
Name:  PA210009.jpg
Views: 70
Size:  117.8 KB

Put the pistons back in the cylinders and put a 1/2" spacer in the 1-2 cylinder.
Name:  PA210010.jpg
Views: 68
Size:  149.6 KB

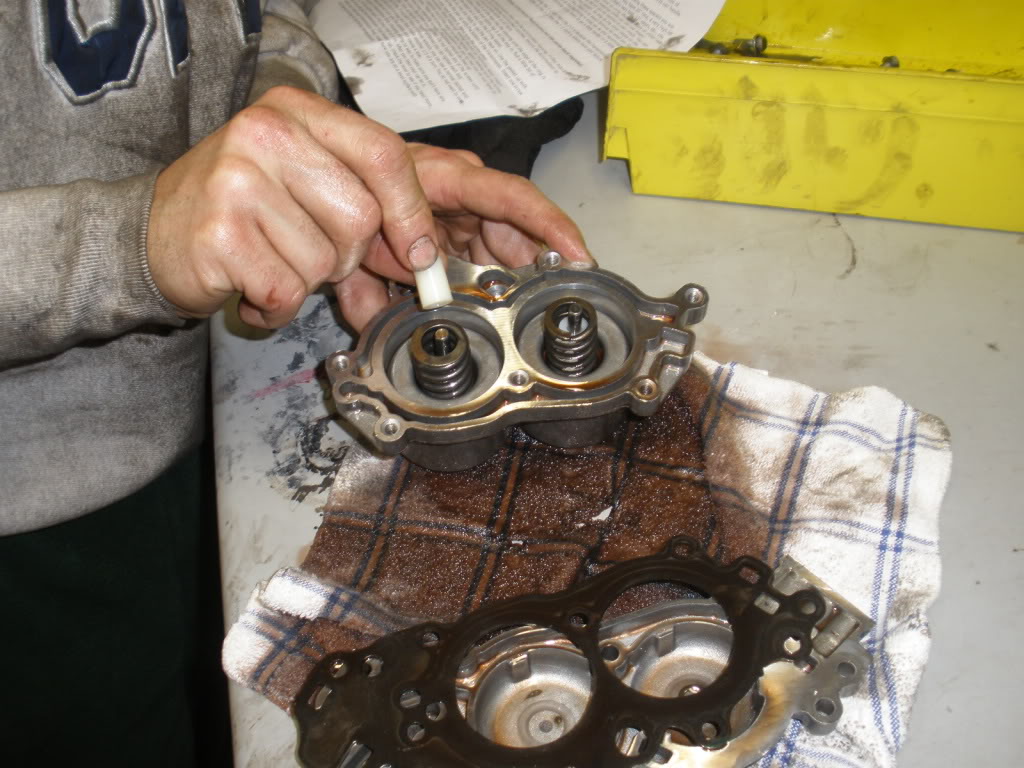

and a 3/4" spacer in the 2-3 cylinder
Name:  PA210011.jpg
Views: 68
Size:  137.5 KB

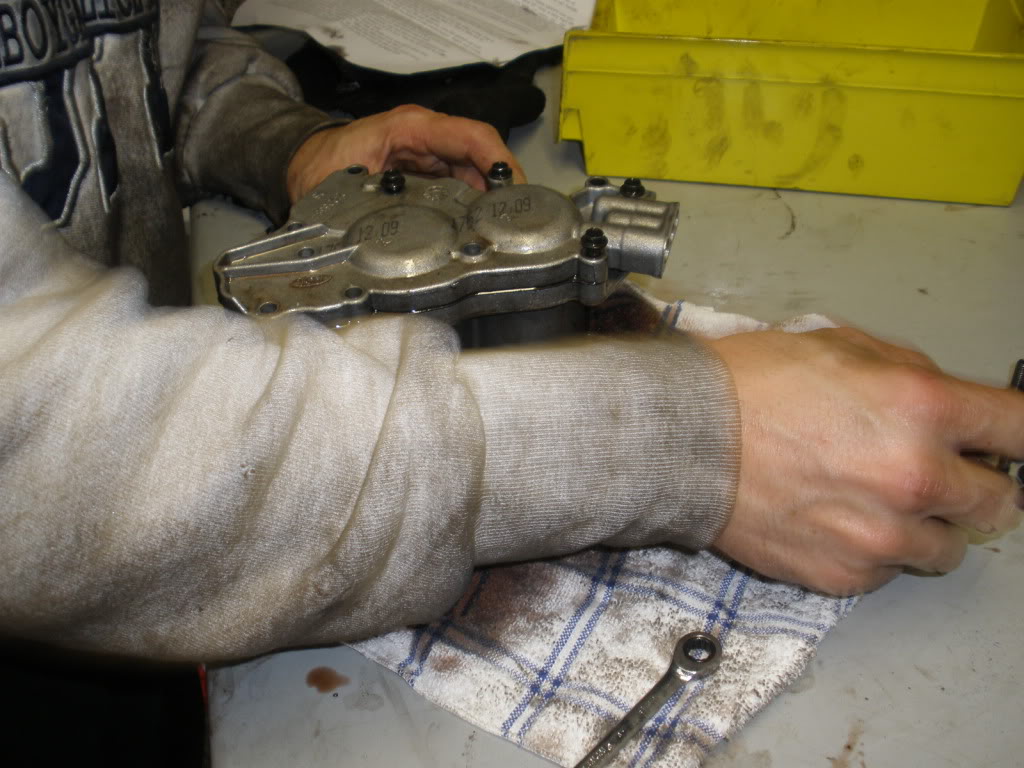

Now put the cover back on the modulator and torque all bolts to required amount.
Name:  PA210012.jpg
Views: 71
Size:  123.8 KB

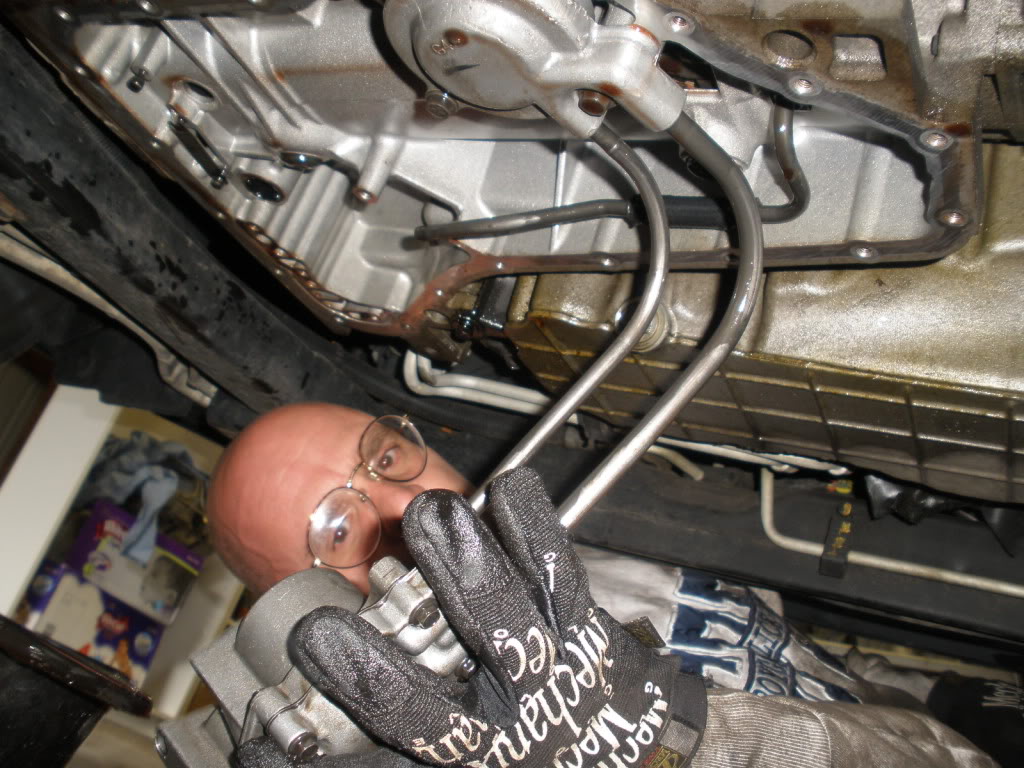

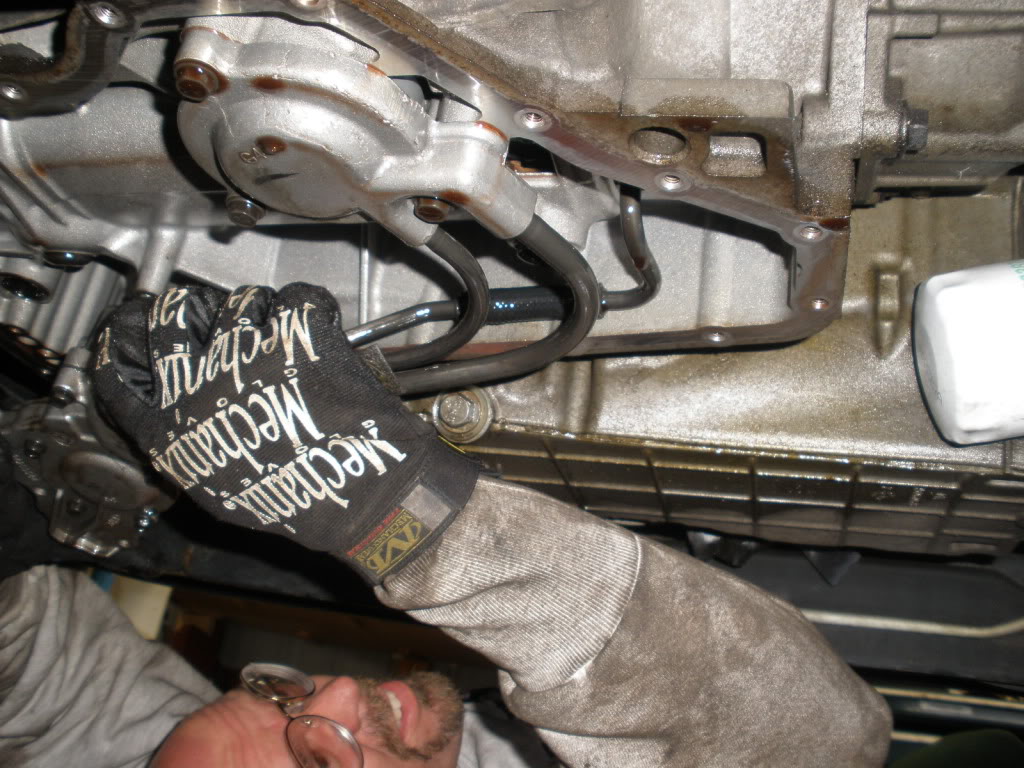

Now reinstall the modulator in the tranny connecting the lines and then line everything up and torque to the correct amount as listed in the directions. As you lift it up each tube will line up.
Name:  PA210013.jpg
Views: 78
Size:  155.8 KB
Name:  PA210014.jpg
Views: 64
Size:  155.9 KB

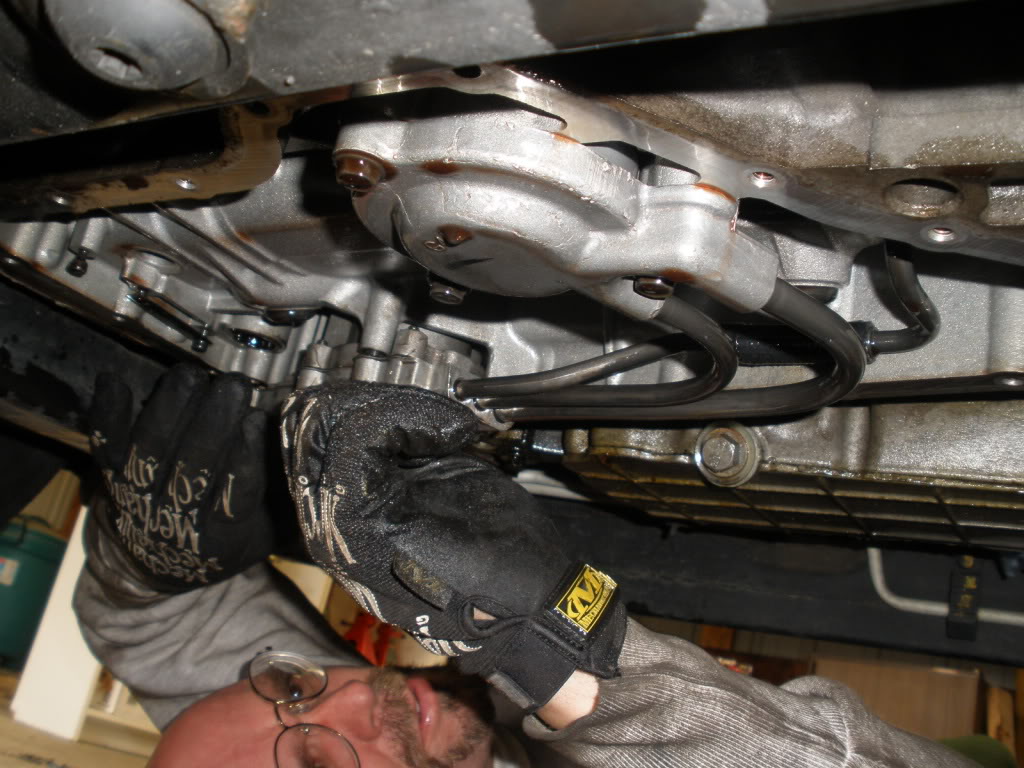

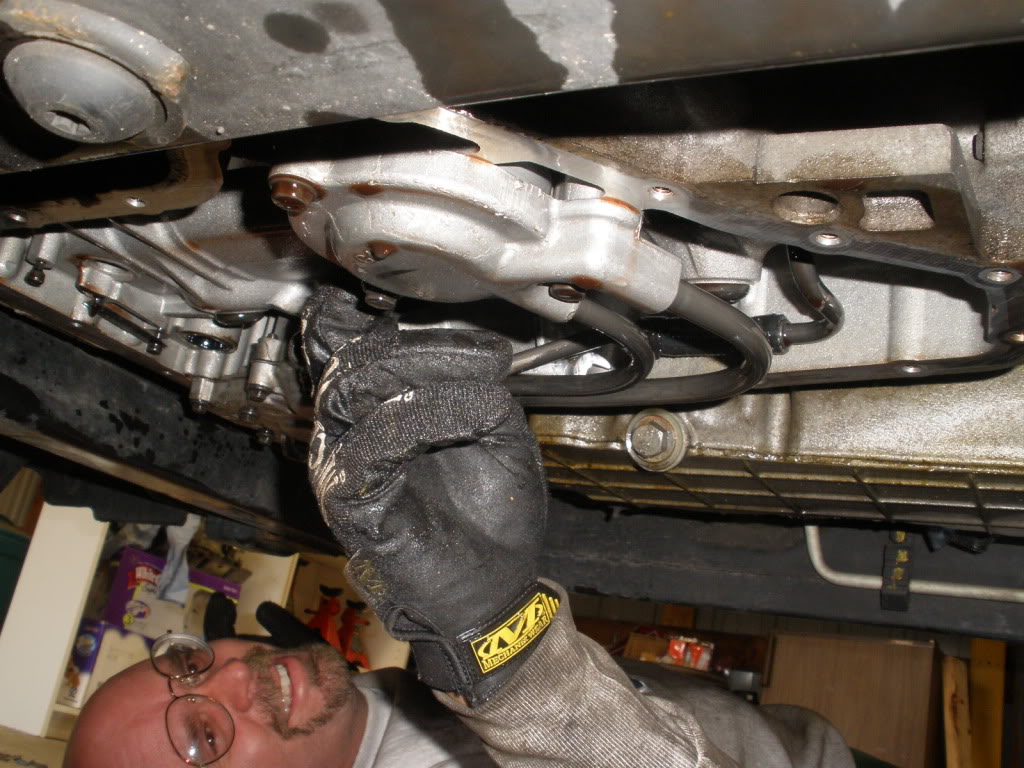

Then install the 4 bolts holding the modulator in place and torque to required amount.
Name:  PA210015.jpg
Views: 64
Size:  161.5 KB
Name:  PA210016.jpg
Views: 64
Size:  136.6 KB
Name:  PA210017.jpg
Views: 63
Size:  150.3 KB
Name:  PA210018.jpg
Views: 92
Size:  148.6 KB

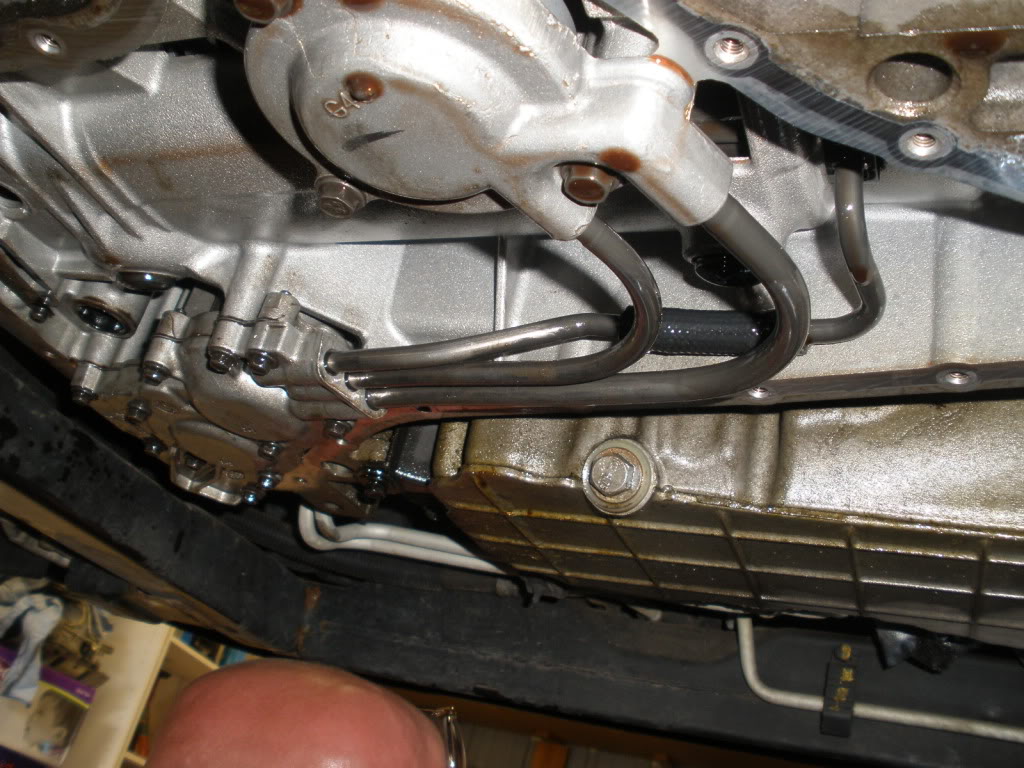

This piece tends to fall out very easy. So watch for this small piece of metal. Make sure it'* in place before you put the pan back on. It'* on the passenger side. You can see in the pictures above, it was not there. It was replace just before the pan was put back on.
Name:  P1260001.jpg
Views: 69
Size:  80.3 KB

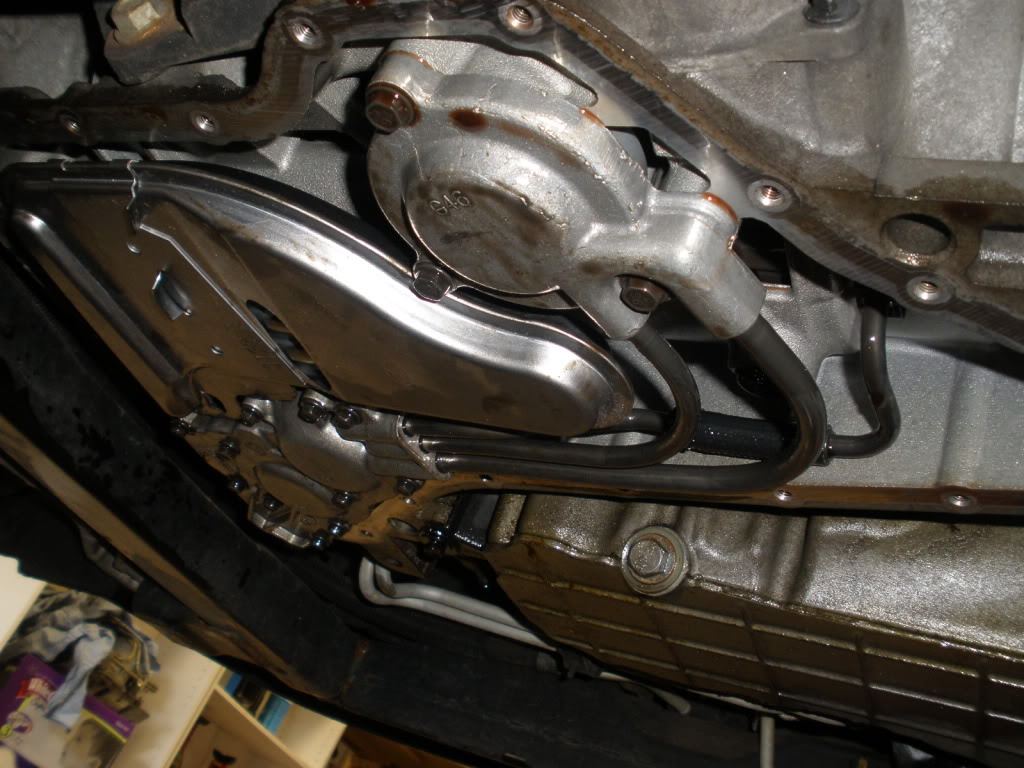

Install your new filter.

Name:  PA210020.jpg
Views: 63
Size:  131.3 KB

Now put your pan in place and get a few bolts started. then snug up each bolt
Name:  PA210021.jpg
Views: 67
Size:  95.7 KB

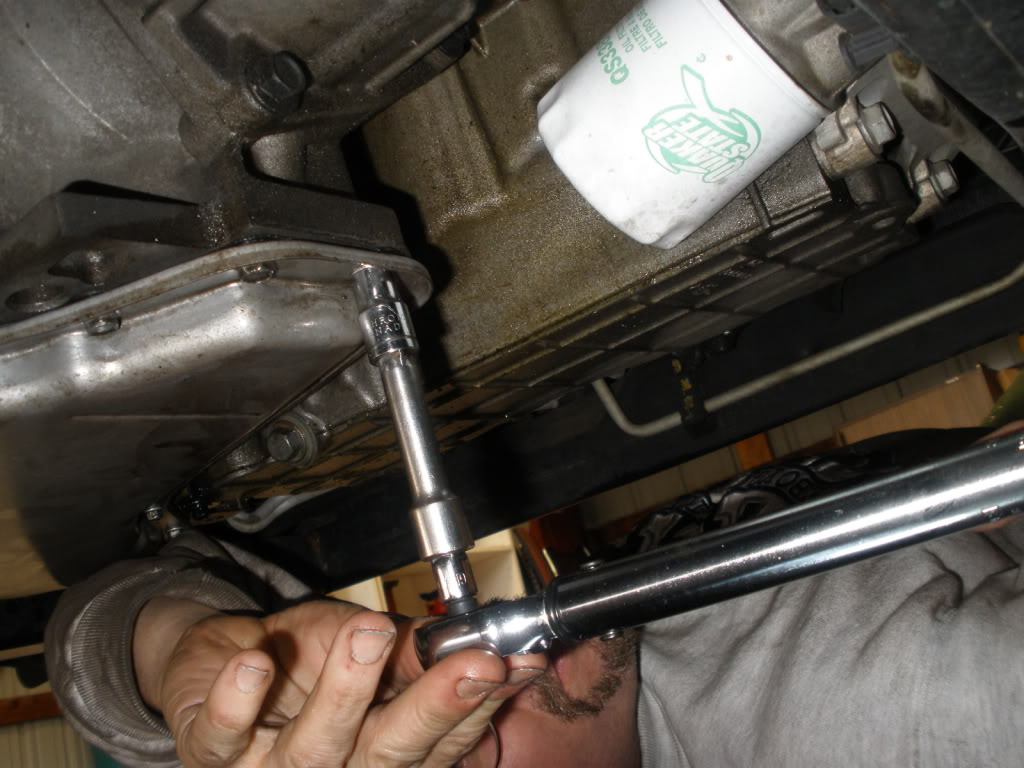

Now with a clicker type inch pound torque wrench torque each bolt to 120 inch pounds. That'* inch pounds, NOT foot pounds
Name:  PA210022.jpg
Views: 64
Size:  107.8 KB

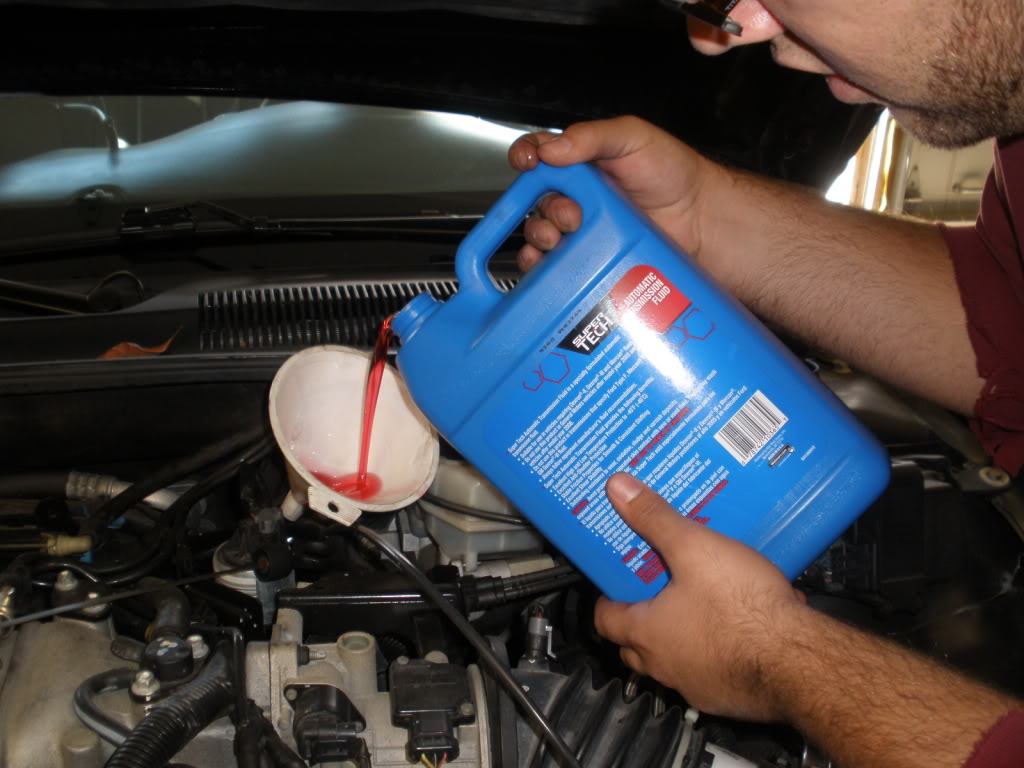

Once the pan is torqued you will need to fill the tranny with the correct fluid. You will do this threw the dip stick tube. You will need a funnel. Make sure you get GM fluid. You will need to add fluid, then start the engine and go threw the gears, then add more fluid and go threw the gears again. It will take some time to fill the tranny back up.
Name:  PA210023.jpg
Views: 65
Size:  102.8 KB

Congratulations, you have now installed your shift kit. Your shifts will be much firmer and quicker.

This kit has also been shown to remove a fair amount of KR.
