As mentioned, I have TOGs installed on my 95 L36.
I was able to bend the stock dip stick out of the way pretty easily.

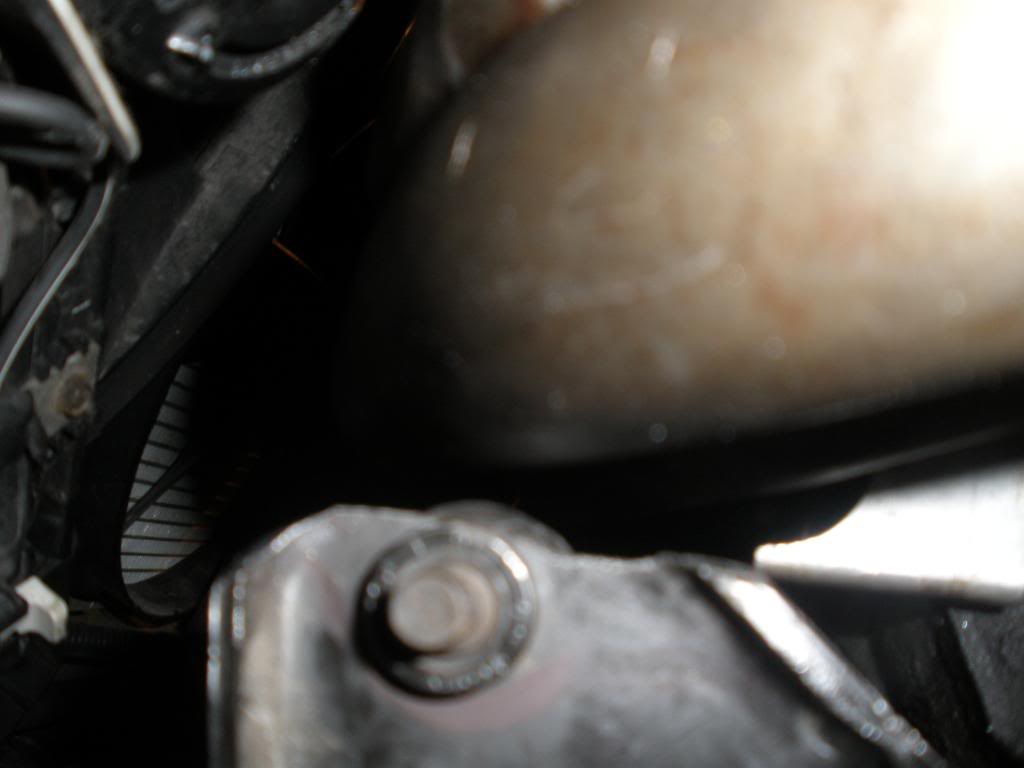

You'll need to trim the front trans mount where I circled in the pic below. It just takes a minute with a cut off wheel. Other headers require you to remove the mount and come up with your own custom solution.
And you'll need to weld an O2 sensor in on the opposite side since the original location puts the sensor into the p/* rack lines. I just had the shop that welded in my DP but the O2 bung in there for pretty much nothing.

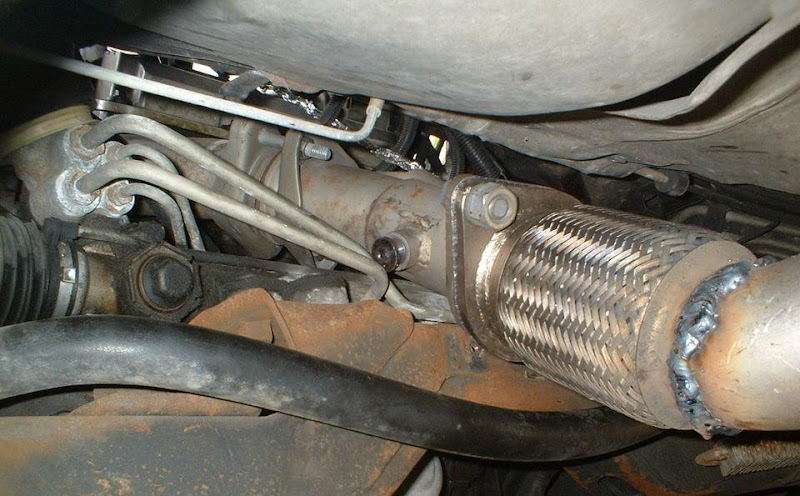

Original location:
Relocated:
The front header flange is close the trans connector but you can clock it out of the way. I've never had an issue.
And I think I removed the heat shield on the rack.
All in all not too hard to install and I've been leak free for 4 years.
Edit- I have a flexible lokar trans dip-stick for a rwd gm car. I got it to replace the one that got pinched in my last car. (totaled the car) I forget what car it'* from though. I'll have to search around for it.
I was able to bend the stock dip stick out of the way pretty easily.
You'll need to trim the front trans mount where I circled in the pic below. It just takes a minute with a cut off wheel. Other headers require you to remove the mount and come up with your own custom solution.
And you'll need to weld an O2 sensor in on the opposite side since the original location puts the sensor into the p/* rack lines. I just had the shop that welded in my DP but the O2 bung in there for pretty much nothing.
Original location:
Relocated:
The front header flange is close the trans connector but you can clock it out of the way. I've never had an issue.
And I think I removed the heat shield on the rack.
All in all not too hard to install and I've been leak free for 4 years.
Edit- I have a flexible lokar trans dip-stick for a rwd gm car. I got it to replace the one that got pinched in my last car. (totaled the car) I forget what car it'* from though. I'll have to search around for it.
Last edited by 95naSTA; 04-29-2010 at 11:04 PM.
#18
Senior Member
Posts like a Turbo
Thread Starter
Join Date: Feb 2006
Location: PA
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the pics and info. I actually went with the ssac/slp knock off headers. So i will look into the trans mount problem, but the o2 bung looks to be ok where they placed it, its up further on the collector not back by the flex pipe. Also If you do find the car you took the flex trans tube from let me know. And 95nasta how far away do you live from allentown?
#19
Senior Member
Posts like a Turbo
Thread Starter
Join Date: Feb 2006
Location: PA
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
Im going to feel bad cutting up that trans mount...I have a new one going in when i put the headers in, since mines bad and about 15 years old...
#20
Senior Member
True Car Nut
Join Date: Feb 2003
Location: Philly
Posts: 4,508
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the pics and info. I actually went with the ssac/slp knock off headers. So i will look into the trans mount problem, but the o2 bung looks to be ok where they placed it, its up further on the collector not back by the flex pipe. Also If you do find the car you took the flex trans tube from let me know. And 95nasta how far away do you live from allentown?
