Stock boost and compression?
#11
Senior Member
Posts like a Northstar
Join Date: Aug 2004
Location: Hawaii
Posts: 570
Likes: 0
Received 0 Likes
on
0 Posts
the reason the 92-93 bonnes had the smaller pulley was cause they didnt have teflon coated rotors, the 94-95 bonnes have them, allowing them to create similar boost with a bigger pulley, thus having cooler incoming airflow... in otherwords 94-95 superchargers are better than the 92-93 supercharger
#12
Senior Member
Certified Car Nut
Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dblack1
the reason the 92-93 bonnes had the smaller pulley was cause they didnt have teflon coated rotors, the 94-95 bonnes have them, allowing them to create similar boost with a bigger pulley, thus having cooler incoming airflow... in otherwords 94-95 superchargers are better than the 92-93 supercharger
#14
Senior Member
Posts like a Northstar
Join Date: Aug 2004
Location: Hawaii
Posts: 570
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 1993 SLE
I think the TB is larger also
#15
Senior Member
Certified GM nut
Join Date: Feb 2003
Location: Georgia
Posts: 2,095
Likes: 0
Received 0 Likes
on
0 Posts
Interesting bits from: http://www.sccoa.com/forums/showthre...8&page=1&pp=15

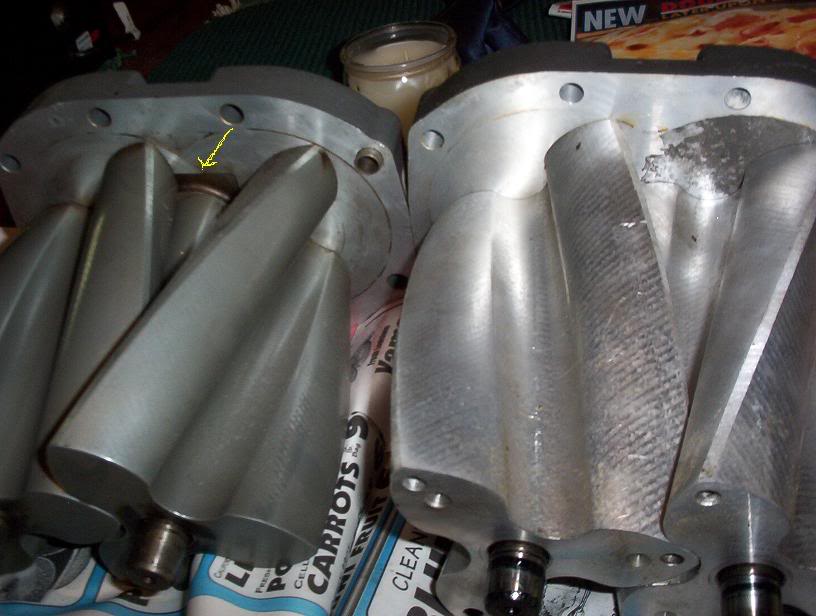

"Yes late model teflon coated rotors will help. My MPII gained 1-1/2 pounds of boost at full tilt by installing a set of 94/95 rotors. I was able to slow down the blower 3% without losing any power. I've now got bare aluminum rotors and went back to overdriving it a little more which isn't nearly as efficent"
"The rotor coating process is one that is tightly controlled due to it'*
impact to performance and durability. The prep of the rotors for proper
coating adhesion is a critical part of that process. It is not
recommended that any alternative process be employed as that process has
not been validated. In addition the base aluminum rotor profile is
different between the 1990 MY uncoated rotor and the 1994 MY coated
rotors. Coating of the 1990 MY rotors won't allow the correct operating
clearances to be achieved. I did confirm that the 1990 MY assembly
could be assembled with the coated rotating assembly from the 1994 MY
design as a direct replacement. I would recommend this as your best
option. Contact Magnuson regarding purchase of a 29650 Bearing Plate
Sub-assembly. Be sure to follow their recommendations for oil and
sealant for assembly."
"Yes late model teflon coated rotors will help. My MPII gained 1-1/2 pounds of boost at full tilt by installing a set of 94/95 rotors. I was able to slow down the blower 3% without losing any power. I've now got bare aluminum rotors and went back to overdriving it a little more which isn't nearly as efficent"
"The rotor coating process is one that is tightly controlled due to it'*
impact to performance and durability. The prep of the rotors for proper
coating adhesion is a critical part of that process. It is not
recommended that any alternative process be employed as that process has
not been validated. In addition the base aluminum rotor profile is
different between the 1990 MY uncoated rotor and the 1994 MY coated
rotors. Coating of the 1990 MY rotors won't allow the correct operating
clearances to be achieved. I did confirm that the 1990 MY assembly
could be assembled with the coated rotating assembly from the 1994 MY
design as a direct replacement. I would recommend this as your best
option. Contact Magnuson regarding purchase of a 29650 Bearing Plate
Sub-assembly. Be sure to follow their recommendations for oil and
sealant for assembly."
